Information Collection

When both the master and slave chassis are installed, the slave chassis does not support information collection.

Function

On the Information Collection page, you can collect operating information of the MM910, compute nodes, and switch modules and save the information on the client.

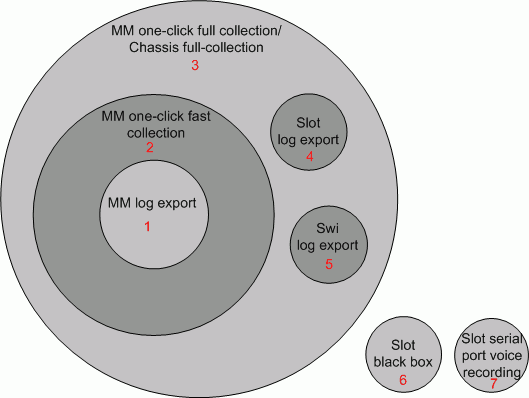

Figure 1 shows the information collection relationships and Table 1 describes the contents that can be collected.

Figure 1 Information collection relationships
click to enlarge

**Table 1** Information collection description
Collection Module	Collected Content
Chassis	Collects the same files and content as one-click full-collection of the collection source MM. For specific files, see 1, 2, 3, 4, and 5 in Table 2. NOTE: Full collection of the chassis collects all switch module logs and may take up to 30 minutes. Supports advanced configuration for collecting information of specified switch module or compute node slots.
MM	One-click full collection: Performs one-click quick information collection and one-click compute node and switch module information collection. For specific files, see 1, 2, 3, 4, and 5 in Table 2.
	One-click quick collection: Collects the installation status of compute nodes, switch modules, fans, and power supply units (PSUs) and collects system event logs of the MM910. For specific files, see 1 and 2 in Table 2.
	Log export: Collects operation logs of the MM910. Collects system event logs of the MM910, fans, and PSUs. . For specific files, see 1 in Table 2.
Slot1 - Slot32	Log export: Collects system event logs and operation logs of compute nodes. For specific files, see 4 in Table 2.
	Black box: Saves the system status information and debugging information before the system is reset. For specific files, see 6 in Table 2.
	Serial port recording: Records the operation information of compute node serial ports. For specific files, see 7 in Table 2.
Swi1 - Swi4	Log export: Collects system event logs and operation logs of switch modules. For specific files, see 5 in Table 2.

NOTE:

The sizes of black box and serial port recording files are generally large. Therefore, the system automatically deletes the files collected for a previous compute node before collecting these files for the next compute node.
If the compute node iBMC version is earlier than 2.0, you need to log in to the iBMC to collect logs.

File Collection Description

**Table 2** File collection description
No.	Level 2 Subdirectory	File Name	Description
1	smm\infoCollect\traplog	snmptrap.log	Log recording the sending of trap messages.
	smm\infoCollect\traplog	snmptrap.log .*.gz	Compressed trap message logs. A maximum of five compressed packages are allowed.
	smm\infoCollect\log	user.log	User operation logs.
	smm\infoCollect\log	sel.log	MM910 SELs.
	smm\infoCollect\log\sel	smmsel*.gz	Compressed SELs. A maximum of 10 compressed packages are supported.
	smm\infoCollect\log\user	user.log.*.gz	Compressed operation logs. A maximum of 10 compressed packages are supported.
	fanspeedlog	fanspeedlog.txt	Fan speed log.
	fanspeedlog	fanspeedlog_bak*.txt	Backup of the fan speed logs. A maximum of four log backups are allowed.
	LswShow	lswshow_buffercount_ge*	Buffer use information of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_buffercount_xe0	Buffer use information of port xe0.
		lswshow_bufferlimit_ge*	Buffer limit information of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_bufferlimit_xe0	Buffer limit information of port xe0.
		lswshow_counter_ge*	Statistics of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_counter_xe0	Statistics of port xe0.
		lswshow_dfxinfo	Alarm information detected by DFX.
		lswshow_egressinfo	Isolation information of all ports.
		lswshow_macinfo	MAC address information.
		lswshow_parityinfo	Memory bit error information.
		lswshow_phyinfo	PHY information.
		lswshow_phyreginfo_ge*	PHY register information of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_phyreginfo_xe0	PHY register information of port xe0.
		lswshow_portinfo_ge*	Information about a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_portinfo_xe0	Information about xe0.
		lswshow_portmap	Port connection relationships.
		lswshow_portparam_ge*	Transmitter emphasis and receiver equalization information of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_portparam_xe0	Transmitter emphasis and receiver equalization information of port xe0.
		lswshow_portstatus	Port status.
		lswshow_pvidinfo	All port PVLAN information.
		lswshow_rdbgcinfo	RDBGC information.
		lswshow_tdbgcinfo	TDBGC information.
		lswshow_vlanfilter_ge*	VLAN filter information of a specific port. ge* indicates the port name, which can be ge0 to ge25.
		lswshow_vlanfilter_xe0	VLAN filter information of port xe0.
		lswshow_vlaninfo	All VLAN information.
2	- NOTE: Applicable to software versions 5.57 or later.	fanspeedpolicy.txt	Fan speed adjustment policy.
		power_shelf.csv	Historical chassis power consumption.
		pemfaultreason.txt	Power alarm information.
		summaryinfo.txt	Basic information about the chassis.
	- NOTE: Applicable to software versions 3.00 to 5.57.	IT11SMMA_021RMU10EC000566_all_20150302	Compute node descriptions and serial numbers, and one-click collection time.
		SMM_collectdata_file	Logs.
		Smmget_Blade_Realtimepower&powercapping&powerreference&resetreason&diskboardpresence&systemInformation	Real-time power consumption, power cap value, power reference value, reset reason, disk expansion drawer installation status, host information on the service side, and system properties about compute nodes.
		Smmget_-d_AllVersion	Software and hardware version information about all installed parts.
		Smmget_Fan&PS_-d_current	Fan and PSU information detected by sensors.
		Smmget_Fan&PS_Power_Fanspeed_Fru	Rated power, real-time power, and FRU information of PSUs, and speed and FRU information of fan modules.
		Smmget_Lswfailed_-d_current	LAN switch failure status.
		Smmget_Node&SWI&SMM&FAN&PS_Presence&Health&Hotswapstate	Presence, health, and hot swap status of all parts.
		smmget_Shelf_Powerinfo&pemtype&fanspeed&fanframetype&fancontrolmode&powercappingenable	Real-time power, power capping enablement status, power cap value, PSU type, PSU rated power, fan speed, fan module type, and fan control mode of the system.
		Smmget_Smm&Fan&Ps&Blade&Swi_BMCSel	System event logs (SELs) of all parts.
		Smmget_Smm_Cpld_Fpga	CPLD and FPGA data.
		Smmget_Smm_outportmode&poweroninterval&InletTemp&FlashRate&MemRate&smalert	Compute node power-on interval, management module management network port out mode, temperature, memory, flash memory usage rate, and power failure status.
		Smmget_Smm_SensorInfo	Sensor values of the management module.
	smm NOTE: Applicable to software versions 5.57 or later.	cpld_pfga.log	CPLD and FPGA information.
	smm NOTE: Applicable to software versions 5.57 or later.	sel.csv	MM910 system event logs.
	othersmm	one_touch_info_fast.tar.gz	Standby MM910 information collected in one-click mode.
	smm\infoCollect	.bash_history	Historical commands executed by the root user.
		access_log	Web-based access logs.
		dmesg	System run logs.
		dmesg.old	System run logs.
		error_log	Web error logs.
		messages	System run logs.
		ntp.conf	NTP configuration file.
		runParam.log	Management module running information, such as network configuration, processes, memory, hard disks, and key file permissions.
		secure	System security logs.
		SMM.CFG	IPMI process configuration information.
		smmnetip.cfg	Network IP address configuration file.
		snmpd.log	snmpd run logs.
		syslog.log	System logs.
		tftp-hpa	TFTP configuration file.
		web_debug.CFG	Web debugging logs.
	smm\infoCollect\log	clphistory	Historical commands executed by users.
		loginfail.log	Login failure logs.
		pme.log	Platform Management Engine (PME) framework logs.
		fail.log	Command execution failure logs.
		smmlog.txt	Management module debugging logs.
		sys_event.log	Upgrade logs.
		webfail.log NOTE: Applicable to software versions 5.57 or later.	WebUI login error logs.
	smm\infoCollect\log\apache	-	Apache logs.
	smm\infoCollect\log\clplog	clphistory.*.gz	Compressed CLP logs. A maximum of 10 compressed packages are supported.
	smm\infoCollect\log\fail	fail.log.*.gz	Compressed failure logs. A maximum of 10 compressed packages are supported.
	smm\infoCollect\log\kvmserver	kvmserver.log	KVM server logs.
	smm\infoCollect\log\loginfail NOTE: Applicable to software versions 5.57 or later.	loginfail.log.*.gz	Compressed login failure logs. A maximum of 5 compressed packages are supported.
	smm\infoCollect\log\redfish	redfish.log	REDFISH logs.
	smm\infoCollect\log\webfail NOTE: Applicable to software versions 5.57 or later.	webfail.log.*.gz	Compressed webfail.log files. A maximum of 2 compressed packages are supported.
3	lsw	lsw_collect_data.txt	Management module LSW chip information.
	swiN_fru1 NOTE: Applicable to software versions 5.57 or later.	*.zip	Switch module N Base plane information collected in one-click mode. NOTE: N is the switch module or passthrough module slot number and ranges from 1 to 4.
	swiN_fru2 NOTE: Applicable to software versions 5.57 or later.	*.zip	Switch module N Fabric plane information collected in one-click mode. NOTE: N is the switch module or passthrough module slot number and ranges from 1 to 4.
4	bladeN	*.tar.gz	Compute node N information collected in one-click mode. NOTE: N is the compute node slot number and ranges from 1 to 32. For details about one-click information collection of compute node CH121, CH140, CH220, CH221, CH222, CH240, and CH242, or CH242 V3, see E9000 Server V100R001 iMana 200 User Guide. For details about one-click information collection of compute node CH121 V3, CH140 V3, CH220 V3, CH222 V3, CH225 V3, CH226 V3, and CH242 V3 DDR4, see E9000 Server V100R001 iBMC User Guide.
5	swiN	*.tar.gz	Switch module N information collected in one-click mode. NOTE: N is the switch module or passthrough module slot number and ranges from 1 to 4. For details about one-click information collection of switch/passthrough module CX910, CX911, CX912, CX913, CX310, CX311, CX312, CX110, CX611, CX111, CX915, CX210, CX116, and CX317, see E9000 Server V100R001 iMana 200 User Guide. For details about one-click information collection of switch/passthrough module CX220, CX318, CX320, CX610, CX710, CX712, and CX920, see E9000 Server V100R001 iBMC User Guide.
6	-	blackbox.dat	Black box.
7	-	systemcom.dat	Serial port voice recording.
