Product Introduction

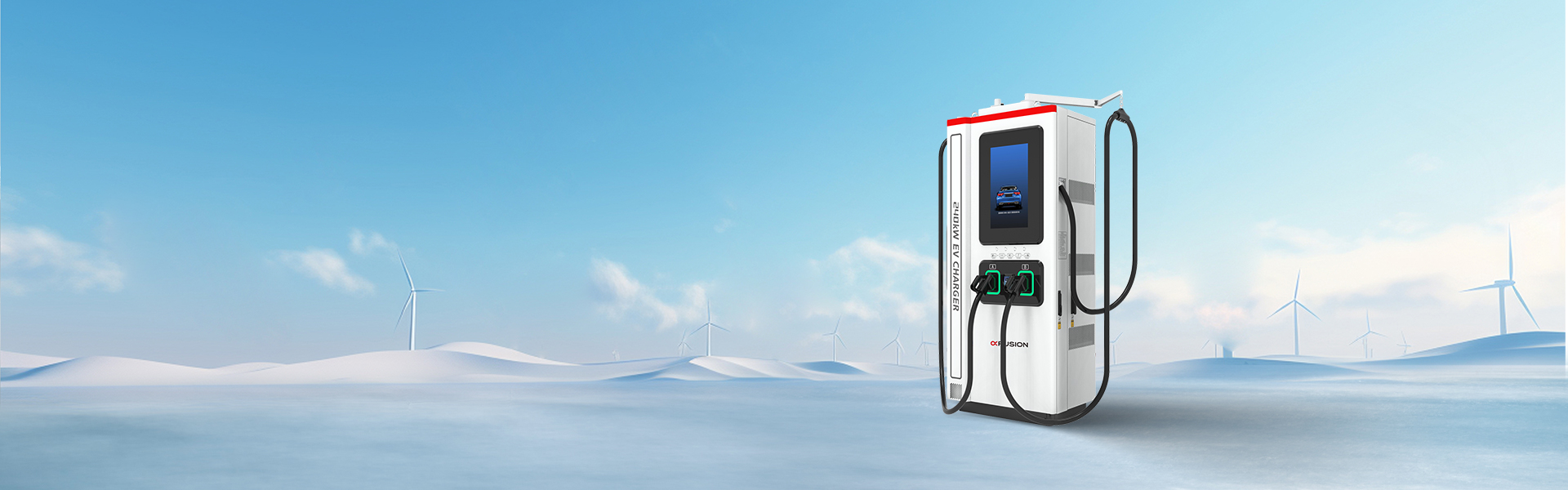

160-240kW DC Ultrar-Fast Charger redefines charging with an innovative ultra-slim design, integrating into urban hubs,highways, etc., for space efficiency. Featuring fully potted modules for 96% efficiency and 10-year reliability in harsh sites, it has a 24" smart advertising screen for ad revenue via dynamic displays. Liquid-cooled tech ensures peak 600A output with ≤65dB noise, while OCPP 2.0 management and flexible payments create a high-yield global charging ecosystem.
Product Introduction
160-240kW DC Ultrar-Fast Charger redefines charging with an innovative ultra-slim design, integrating into urban hubs,highways, etc., for space efficiency. Featuring fully potted modules for 96% efficiency and 10-year reliability in harsh sites, it has a 24" smart advertising screen for ad revenue via dynamic displays. Liquid-cooled tech ensures peak 600A output with ≤65dB noise, while OCPP 2.0 management and flexible payments create a high-yield global charging ecosystem.
Technical Specifications
| Mode | YT160-11 | YT180-11 | YT200-11 |
YT240-11 |
|
| Basic index | Power Configuration | 160kW | 180kW | 200kW | 240kW |
| Dimensions (W*D*H) | 850*615*2135mm | ||||
| Weight(KG) | ≤360KG | ||||
| DC interfaces | CCS2*2 / CCS2+GB/T / GB/T*2; length 5m | ||||
| Display | 23.8 "touch screen, 4 buttons | ||||
| CMS (Cable management system) |
2*integrated self-retracting swing arm | ||||
| Payment | Payment mode | RFID, Mobile APP, POS (optional) | |||
| Input | AC nominal voltage | 400V/AC±10%,3 phase + N +PE | |||
| Frequency | 50Hz/60Hz | ||||
| Current | 246A | 276A | 307A | 368A | |
| Power factor | >0.99 | ||||
| ITHD | ≤5% | ||||
| Output | Output DC voltage range | 200~1000vdc | |||
| Current | 300A Max | 400A Max | 500A Max | ||
| Max efficiency | >96% | ||||
| Environment | Operating temperature | -30°~70°(51°C derating) | |||
| Humidity | 5%~95%RH, non-condensing | ||||
| Altitude | ≤2000m no derating required;>2000m,the working temperature decreases by 1°C for every 100m rise | ||||
| Protection Grade | IP55 | ||||
| Noise | ≤65dB | ||||
| Installation location | Indoor/Outdoor | ||||
| EVSE | DIN 70121, ISO 15118-2, ISO15118-20, EN IEC 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014 | ||||
| Standards & certifications | Network Connections | Ethernet, 4G | |||
| OCPP | OCPP 1.6J | ||||
| Certification | CE | ||||
