Product Introduction

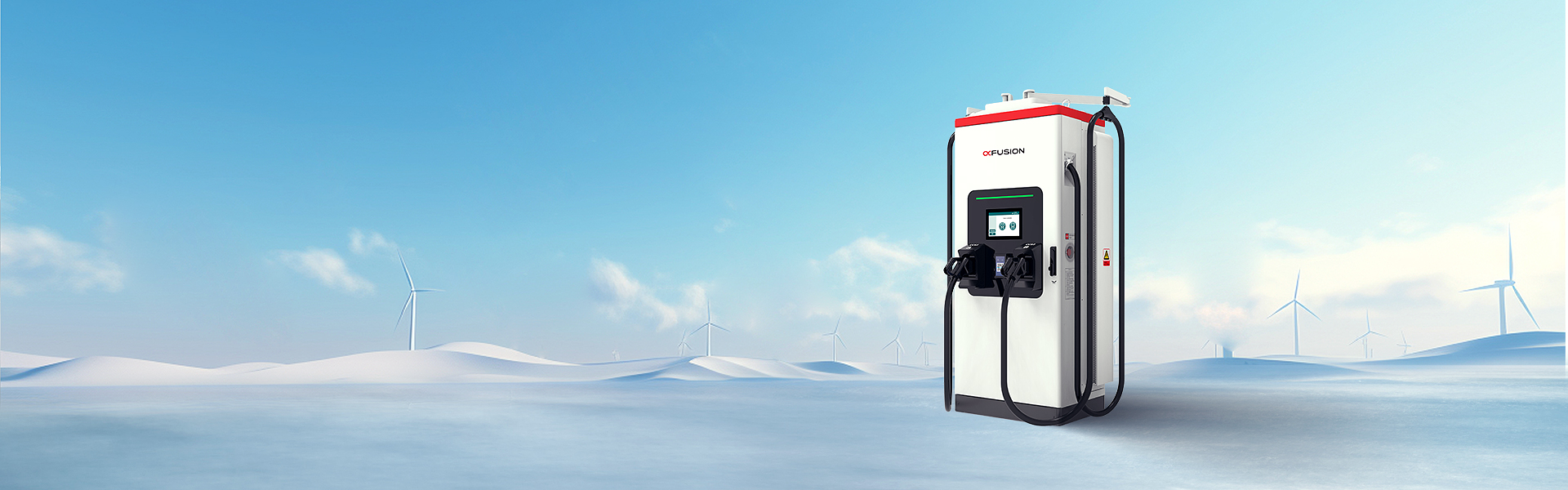

The 60-240kW all-in-one high protection DC Charger is specially designed to deliver high protection and reliability while being fully compatible with global EV charging standards. Its all-in-one design and IP55 protection rating make it suitable for various harsh environments. Featuring fully potted modules achieving 96% efficiency, the charger has a small footprint to minimize space occupation in compact parking spots. It also offers a more user-friendly connector management design option.
Product Introduction
The 60-240kW all-in-one high protection DC Charger is specially designed to deliver high protection and reliability while being fully compatible with global EV charging standards. Its all-in-one design and IP55 protection rating make it suitable for various harsh environments. Featuring fully potted modules achieving 96% efficiency, the charger has a small footprint to minimize space occupation in compact parking spots. It also offers a more user-friendly connector management design option.
Technical Specifications
| Mode | YT60-12 | YT80-12 | YT120-12 | YT160-12 | YT180-12 |
YT240-12 |
|
| Basic index | Power Configuration | 60kW | 80kW | 120kW | 160kW | 180kW | 240kW |
| Dimensions (W*D*H) | 870*460*1600mm | 870*460*1788mm | 910*500*1878mm | ||||
| Weight(KG) | ≤220KG | ≤270KG | ≤340KG | ||||
| DC interfaces | CCS2*2 / CCS2+GB/T / GB/T*2; length 5m | ||||||
| Display | 10-inch touch screen | ||||||
| CMS (Cable management system) |
Optional | ||||||
| Payment | Payment mode | RFID, Mobile APP, POS (optional) | |||||
| Input | AC nominal voltage | 400V/AC±10%,3 phase + N +PE | |||||
| Frequency | 50Hz/60Hz | ||||||
| Current | 91A | 121A | 182A | 243A | 273A | 364A | |
| Power factor | >0.99 | ||||||
| ITHD | ≤5% | ||||||
| Output | Output DC voltage range | 200~1000vdc | |||||
| Current | 200A Max | 300A Max | |||||
| Max efficiency | >96% | ||||||
| Environment | Operating temperature | -30°C~-+50°C | |||||
| Humidity | 5%~95%RH, non-condensing | ||||||
| Altitude | ≤2000m no derating required;>2000m,the working temperature decreases by 1°C for every 100m rise | ||||||
| Protection Grade | IP55 | ||||||
| Noise | ≤65dB | ||||||
| Installation location | Indoor/Outdoor | ||||||
| EVSE | DIN 70121, ISO 15118-2, ISO15118-20, EN IEC 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014 | ||||||
| Standards & certifications | Network Connections | Ethernet, 4G | |||||
| OCPP | OCPP 1.6J | ||||||
| Certification | CE | ||||||
