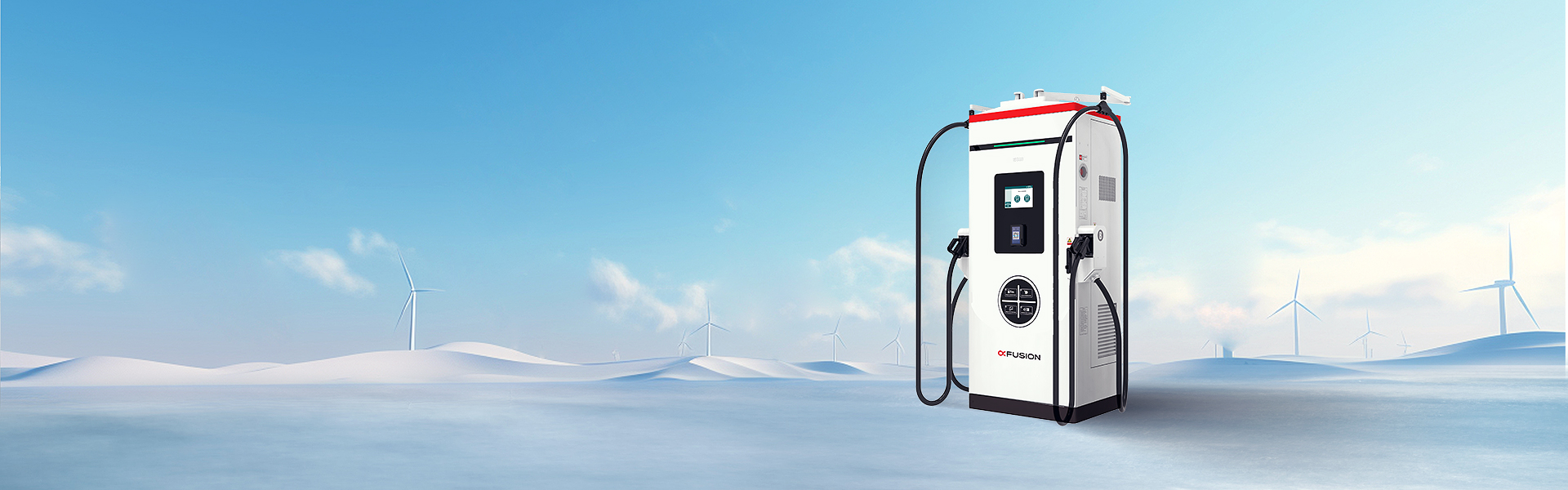

Product Introduction
Tailored for the global market, It seamlessly integrates with high-power charging systems for vehicles featuring CCS/GBT interfaces. Utilizing precise control algorithms and thermal simulations, it significantly reduces charging system noise.
Product Introduction
Tailored for the global market, It seamlessly integrates with high-power charging systems for vehicles featuring CCS/GBT interfaces. Utilizing precise control algorithms and thermal simulations, it significantly reduces charging system noise.
Technical Specifications
| Mode | YT60-13 | YT80-13 | YT120-13 | YT160-13 | YT180-13 | YT240-13 | YT320-13 |
YT400-13 |
|
| Basic index | Power Configuration | 60kW | 80kW | 120kW | 160kW | 180kW | 240kW | 320kW | 400kW |
| Dimensions (W*D*H) | 800*600*2000mm | 850*610*2200mm | 850*800*2200mm | 1195*900*2348mm | |||||
| Weight(KG) | ≤250KG | ≤400KG | ≤500KG | ≤730KG | |||||
| DC interfaces | CCS2*2 / CCS2+GB/T / GB/T*2; length 5m | ||||||||
| Display | 10-inch touch screen | ||||||||
| CMS (Cable management system) |
Optional | ||||||||
| Payment | Payment mode | RFID, Mobile APP, POS (optional) | |||||||
| Input | AC nominal voltage | 400V/AC±10%,3 phase + N +PE | |||||||
| Frequency | 50Hz/60Hz | ||||||||
| Current | 90A | 123A | 184A | 246A | 276A | 368A | 491A | 614A | |
| Power factor | >0.99 | ||||||||
| ITHD | ≤5% | ||||||||
| Output | Output DC voltage range | 200~1000vdc | |||||||
| Current | 200A Max | 300A Max | 400A Max | ||||||
| Max efficiency | >95% | ||||||||
| Environment | Operating temperature | -30°~-+50°C | |||||||
| Humidity | 5%~95%RH, non-condensing | ||||||||
| Altitude | ≤2000m no derating required;>2000m,the working temperature decreases by 1°C for every 100m rise | ||||||||
| Protection Grade | IP55 | ||||||||
| Noise | ≤55dB | ≤60dB | ≤65dB | ||||||
| Installation location | Indoor/Outdoor | ||||||||
| EVSE | DIN 70121, ISO 15118-2, ISO15118-20, EN IEC 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014 | ||||||||
| Standards & certifications | Network Connections | Ethernet, 4G | |||||||
| OCPP | OCPP 1.6J | ||||||||
| Certification | CE | ||||||||
