FusionPoD for AI Rack-Scale Liquid-Cooled Server
Major application scenarios:
Large- and ultra-large-scale model training & inference
and other AI applications
FusionPoD for AI Rack-Scale Liquid-Cooled Server
Major application scenarios:
Large- and ultra-large-scale model training & inference
and other AI applications
Compatible with Diversified Computing Capabilities
Supreme Computing Powered by 64 GPUs
105 kW High-Density Power Supply
pPUE as Low as 1.06
Compatible with Diversified Computing Capabilities
Fully Compatible with Diversified Computing
Open Architecture, Shared Capabilities
Supreme Computing Powered by 64 GPUs
High-Density Deployment of 64 x GPUs per Cabinet
8 x GPUs per node and 8 x nodes per cabinet; flexible networking with InfiniBand (IB) and Ethernet switching
105 kW High-Density Power Supply
97% Ultra-Titanium PSUs Providing 105 kW Centralized Power Supply
• 2N power supply system
• N+M redundancy (1 ≤ M ≤ N)
• 36 x 3 kW PSUs
• 6+6 three-phase AC power input
• 380 V AC inputs, three phases, and five wires
• 48 V bus centralized power supply
Advanced Engineering Technology
Efficiency Efficient topology, professional magnetic design, and advanced technology
Reliability Simulation analysis and 1000+ professional tests
Intelligence Intelligent management and black box
97% Ultra-Titanium PSUs Providing 105 kW Centralized Power Supply
• 2N power supply system
• N+M redundancy (1 ≤ M ≤ N）
• 36 x 3 kW PSUs
• 6+6 three-phase AC power input
• 380 V AC inputs, three phases, and five wires
• 48 V bus centralized power supply
Advanced Engineering Technology
Efficiency Efficient topology, professional magnetic design, and advanced technology
Reliability Simulation analysis and 1000+ professional tests
Intelligence Intelligent management and black box
pPUE as Low as 1.06

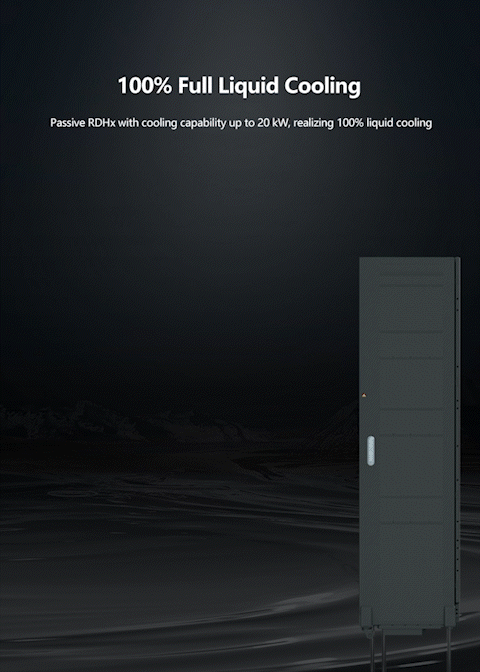

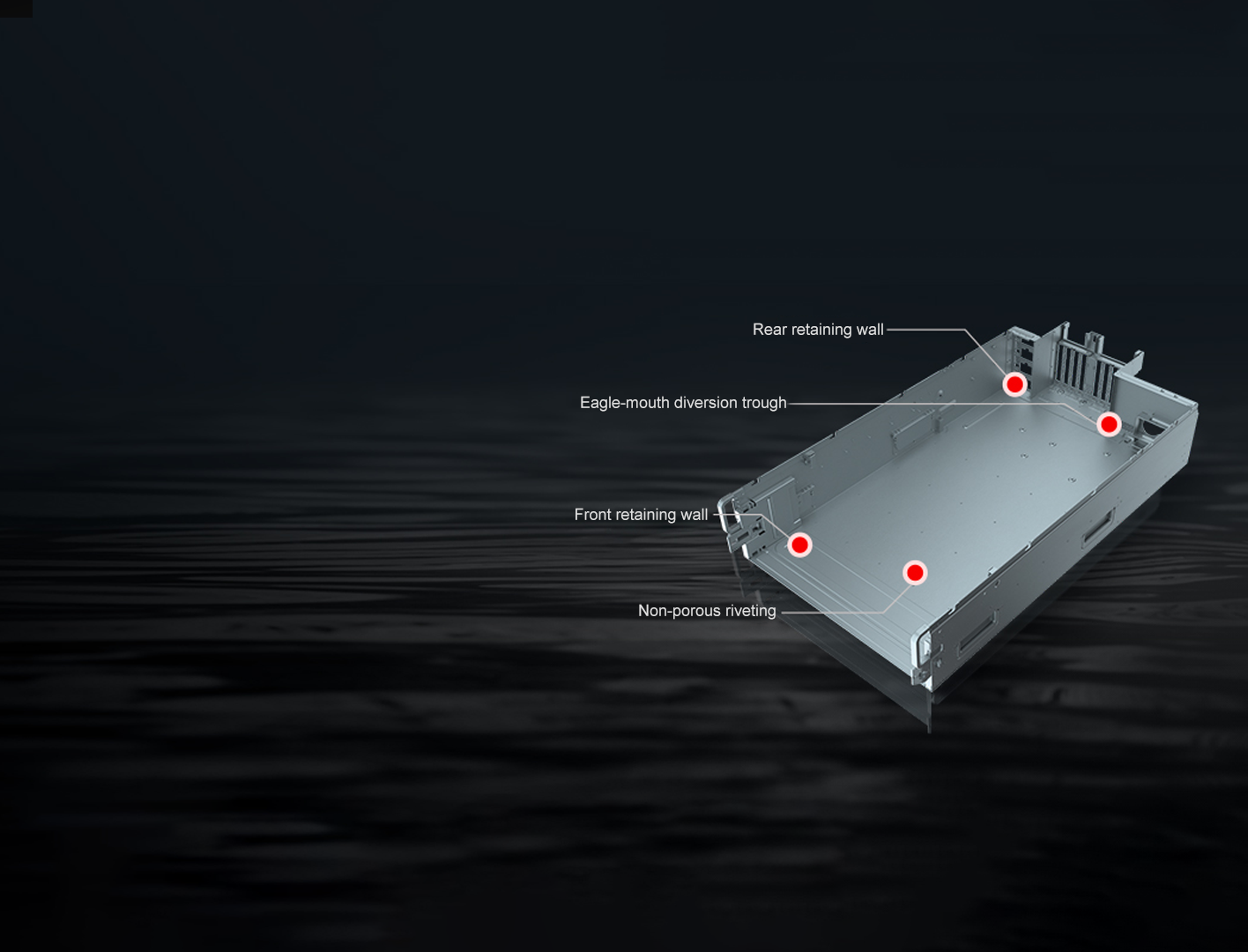

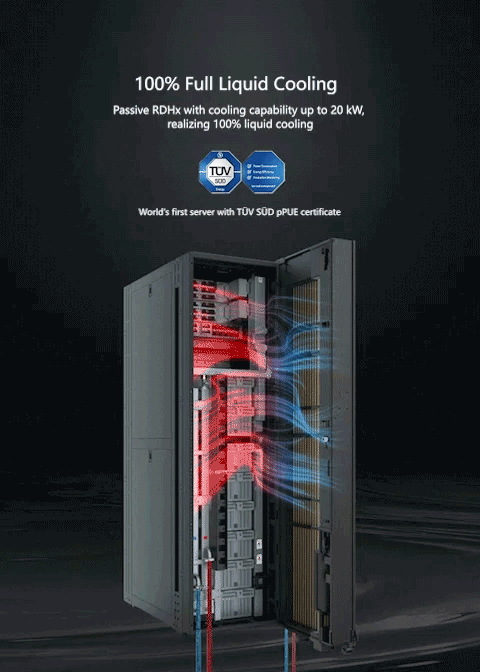

Native Liquid Cooling
100% native liquid cooling,
comprehensive protection,
higher security level,
and service life of over 10 years
World's first server with
TÜV Rheinland leakage-proof certificate
Large-Scale Cluster Deployment
Improving rollout efficiency by over 10x
Intelligent Management
Intelligent Cabinet Management
Online detection, proactive warning, and intelligent shutdown
Intelligent O&M with Robots
Bus Blind Mating
Plug and play, cable-free design, intelligent inspection, and simplified O&M
World's firstcertified intelligent data center server by TÜV SÜD
