FusionPoD Rack-Scale Liquid-Cooled Server
Major application scenarios:
Cloud
HPC
Liquid-Cooled Data Center
• The FusionPoD rack-scale liquid-cooled server (FusionPoD) features a high-density computing cluster cabinet that offers exceptional performance, energy efficiency, and reliability, while also supporting integrated delivery.
• It is applicable to cloud computing, virtualization, big data, high-performance computing (HPC), and other applications, and can be widely deployed in enterprise, telecom, Internet company data centers, as well as Internet Data Centers (IDCs).
FusionPoD Rack-Scale Liquid-Cooled Server
Major application scenarios:
Cloud
HPC
Liquid-Cooled Data Center
pPUE as Low as 1.06
High-Density Deployment with 144 CPUs
Three-Bus (Liquid, Network, and Power) Blind Mating
100% Native Liquid Cooling
pPUE as Low as 1.06
High Energy Efficiency
pPUE as low as 1.06, with TÜV SÜD pPUE certificate
Passive RDHx
Efficient heat exchange without air conditioning in the equipment room, achieving 100% full liquid cooling
High-Density Deployment with 144 CPUs
High Computing Density
Up to 144 CPUs in the cabinet
High Power Supply Density
Up to 3 kW per PSU and a total power of 33 kW in N+1 redundancy
Three-Bus (Liquid, Network, and Power) Blind Mating

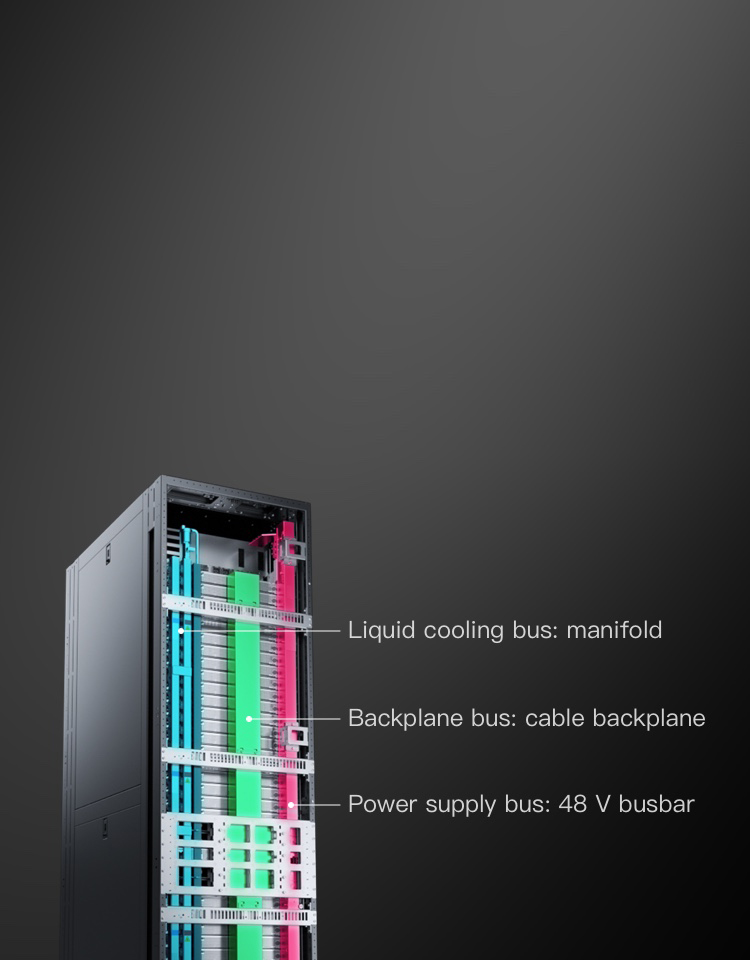

Industry-Leading Three-Bus Design
Three-bus (Liquid, Network, and Power) and cable-free design
Easy and Convenient Parts Replacement
Memory replacement without removing cold plates
Blind Mating of Nodes for Efficient O&M
Blind mating of nodes without changing customers' O&M habits, supporting unmanned O&M
100% Native Liquid Cooling

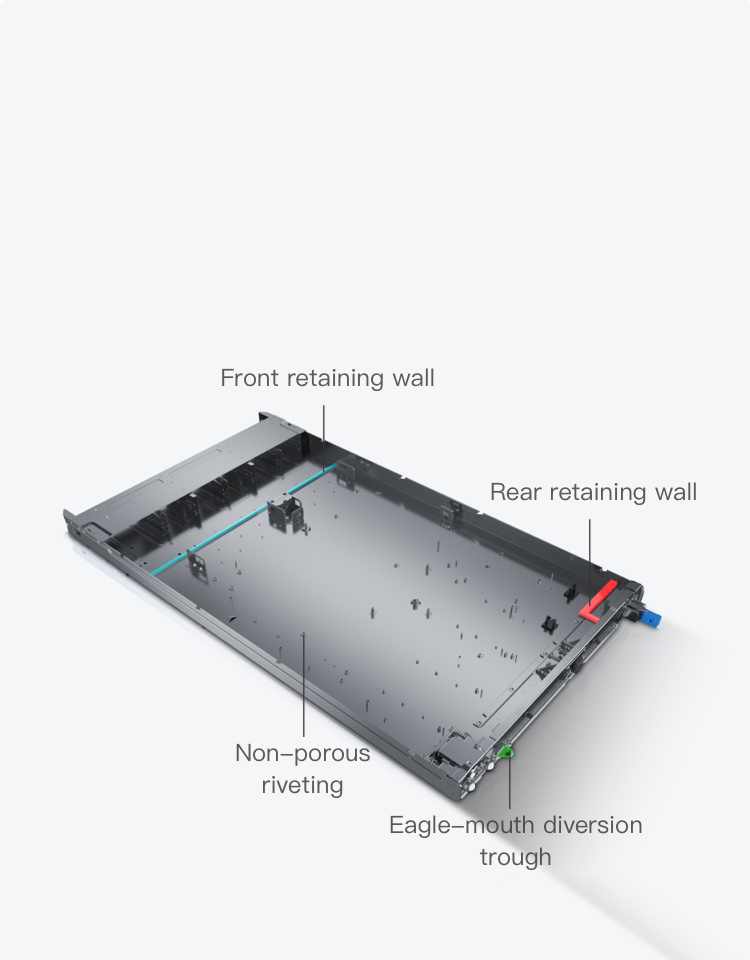

Native Liquid Cooling Design

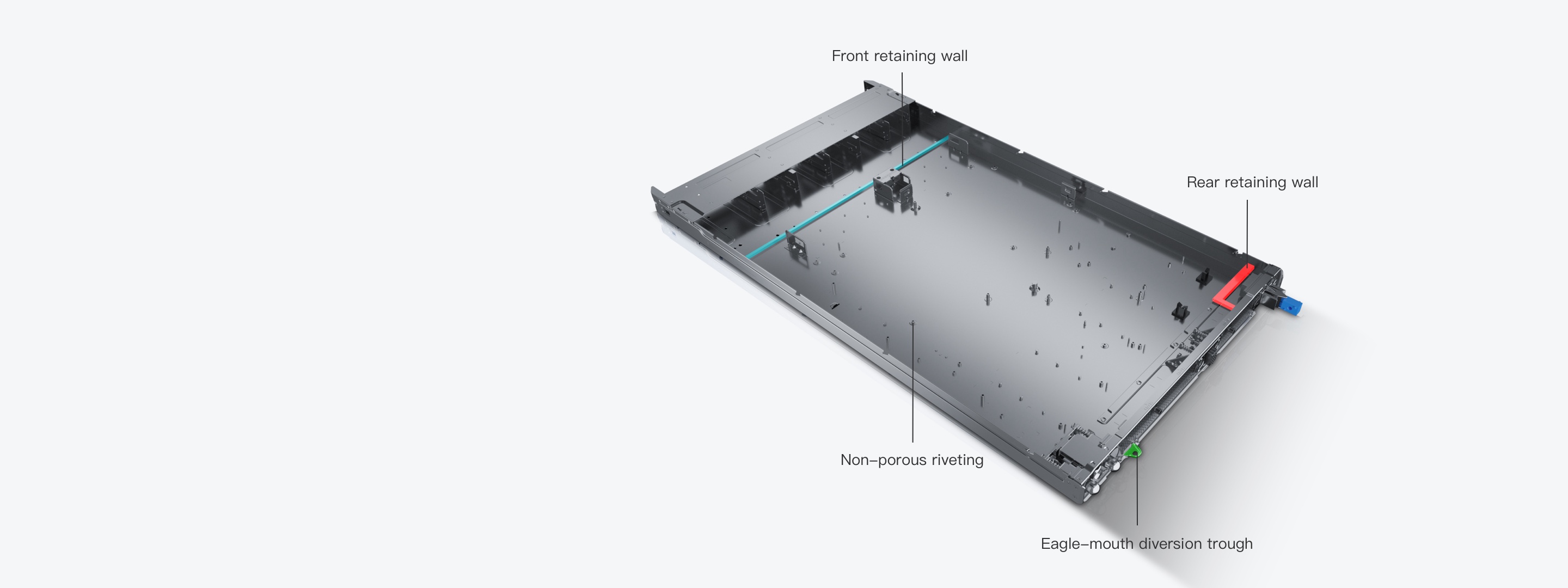

Protection design of the liquid-cooled node: non-porous riveting,
front and rear water retaining walls, and eagle-mouth diversion trough
Intelligent Management for Proactive O&M
Power consumption management and hot swap supported, ensuring smooth operation of the server
Ten Years of Reliability Certified by TÜV Rheinland
Highly reliable liquid-cooling components used to ensure a service life of 10+ years and no leakage
Large-Scale Application
Over 100,000 nodes deployed on the live network
FusionPoD Node
DH120E V8
