Optimal Price-Performance
Industry-Leading Security
Extraordinary Energy Efficiency
Next-Gen 2U1P Rack Server
Major application scenarios:
Virtualization
Big data analytics
AI inference

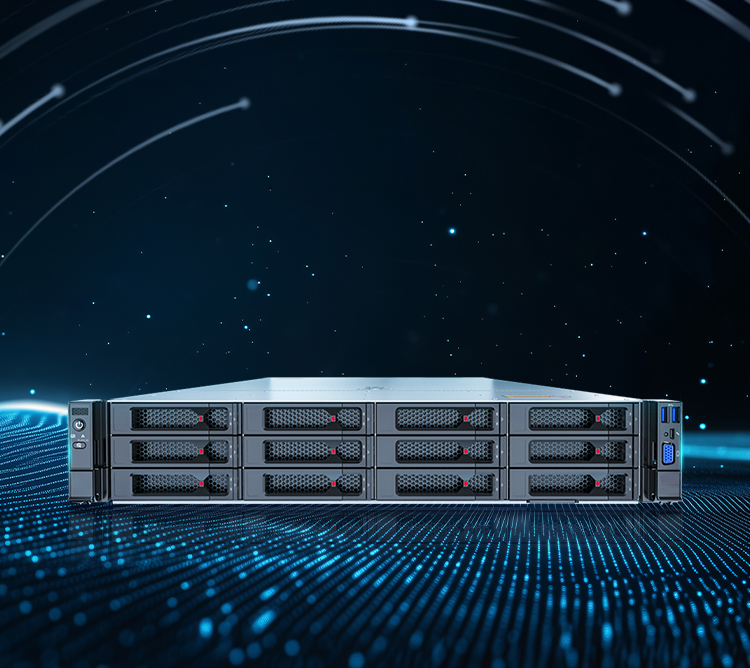

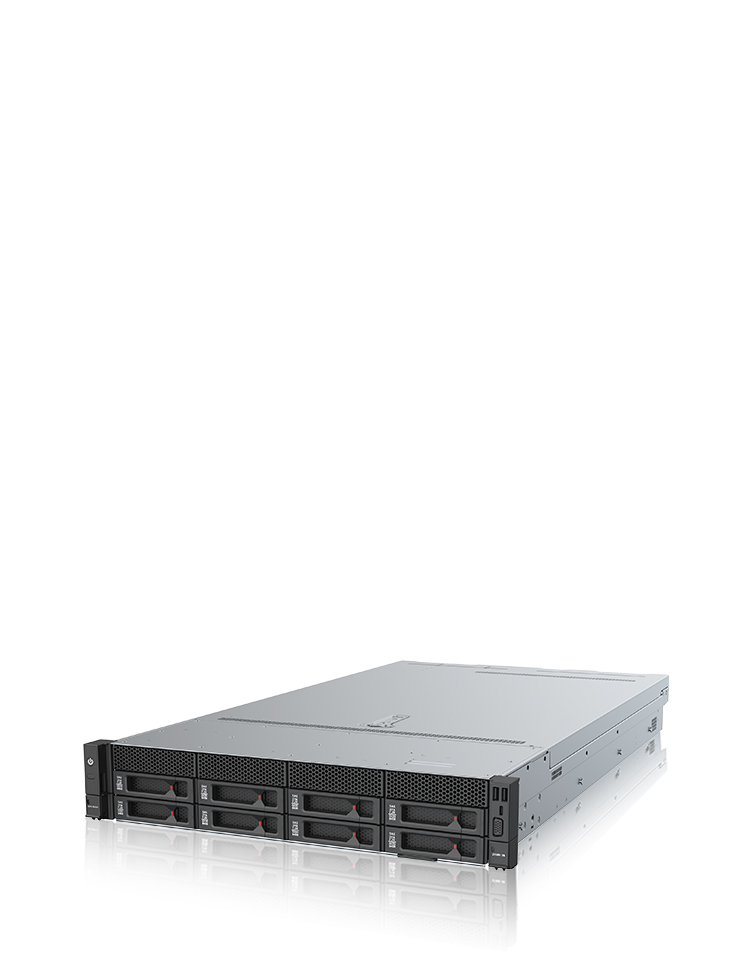

The FusionServer 2158H V8 is a next-generation 2U1P rack server designed to meet the demands of virtualization, big data analytics, databases, cloud scenarios, and AI inference.
With outstanding performance, strong scalability, proven reliability, and ease of management and deployment, the 2158H V8 is ideal for handling complex workloads in industries such as Internet and telecom.
Optimal Price-Performance

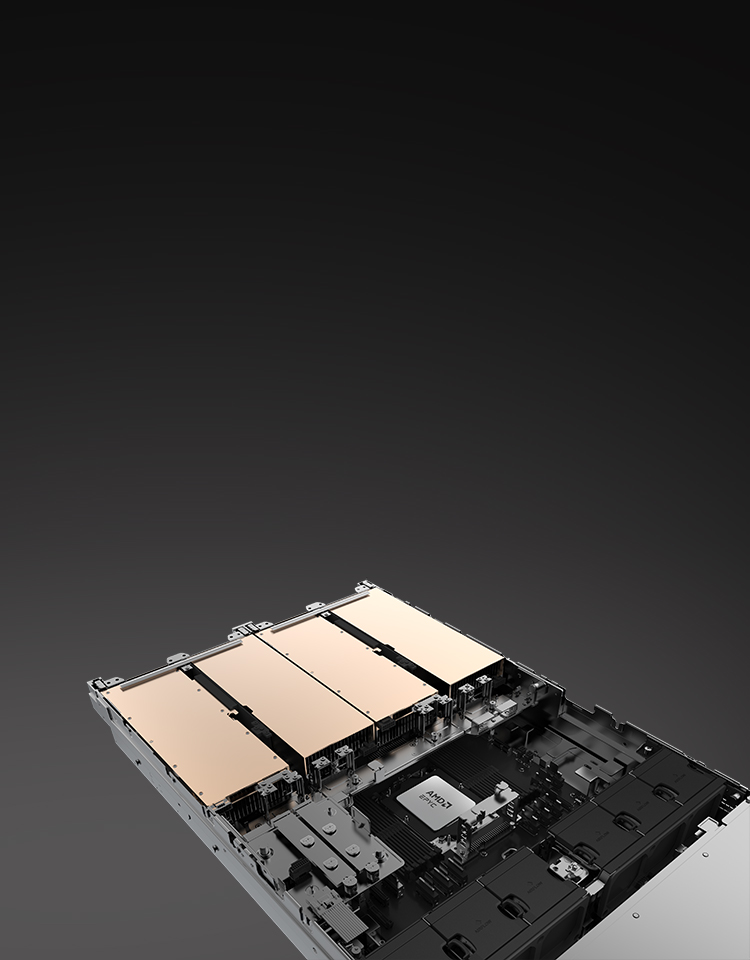

Optimized CPU-to-GPU Ratio
1 x AMD EPYC™ 9005 series CPU (Turin) with up to 192 cores and 500 W TDP
1 x CPU + 4 x dual-width GPUs
1 x CPU + 10 x single-width GPUs

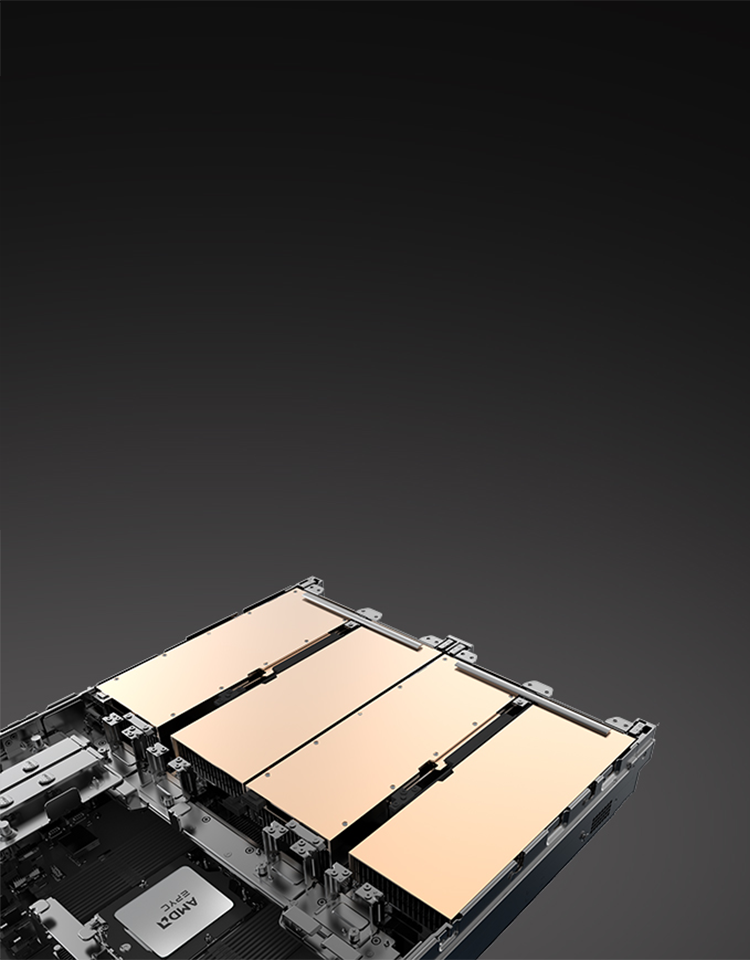

Enhanced Compatibility
Compatible with diverse GPUs

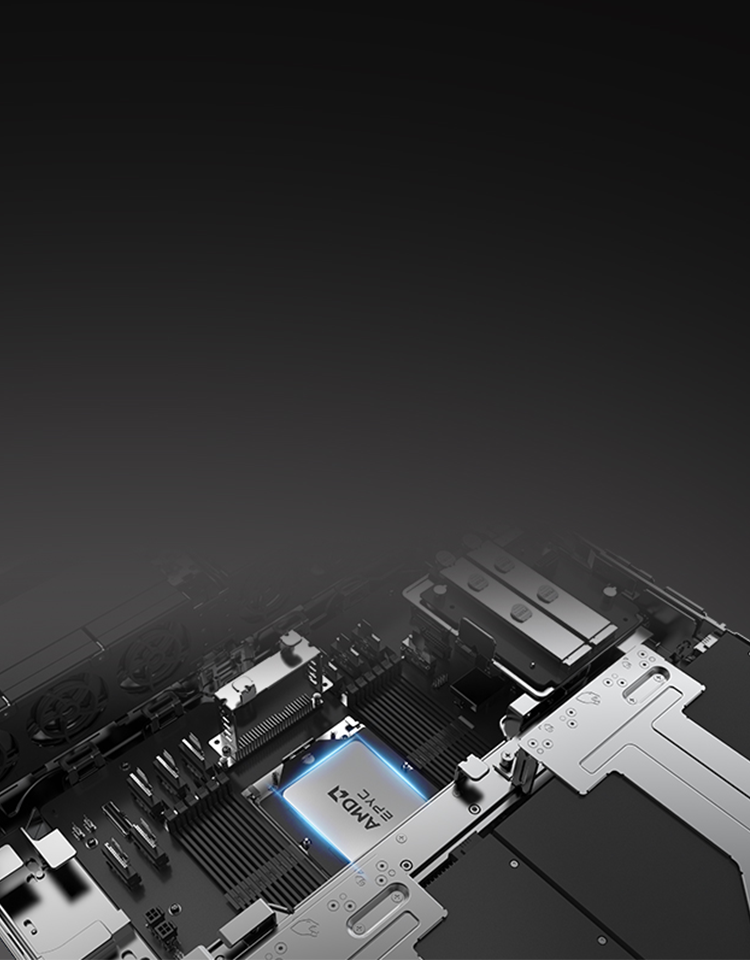

Boosted Performance
1 x 192-core CPU with up to 500 W TDP
Global No.1 in SPEC tests * from the data published on April 16, 2025
Industry-Leading Security
Security Certification
CC EAL4+, offering proven security against advanced threats
Data Protection Certification
FIPS, delivering robust data protection and encryption for sensitive information
Extraordinary Energy Efficiency

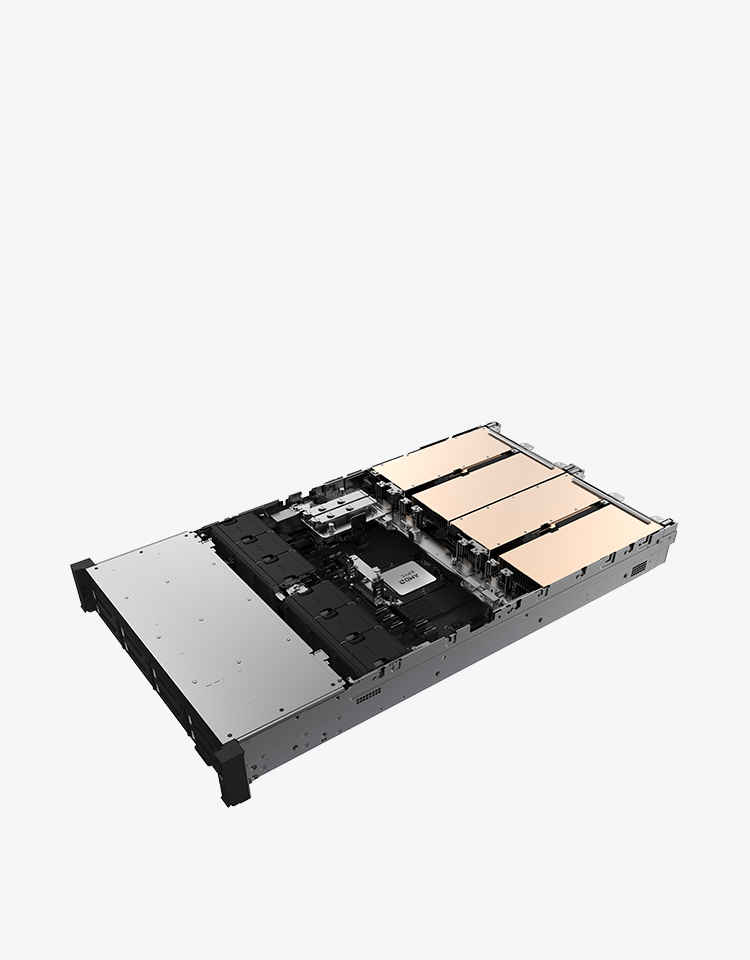

Exceptional Cooling
Exclusive MPC-PID2.0, ensuring stable server operation in environments above 50°C

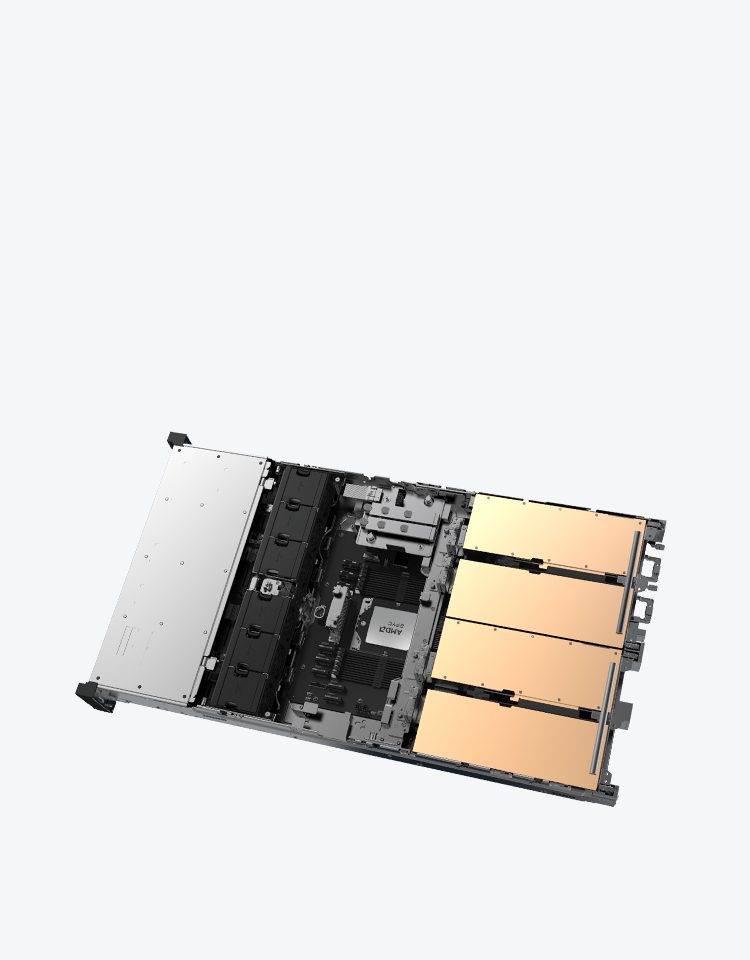

Superior Energy Saving
Dynamic bus voltage adjustment for minimal power consumptionGlobal No.1 in SPECpower tests * from the data published on April 16, 2025
Technical Specifications
2U rack server
1 x 4th Gen AMD EPYCTM 9004 (Genoa) or 5th-Gen EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor
Hot-swappable and flexible drive configurations:
• 8 x 2.5″ SAS/SATA/NVMe drives
• 8 x 3.5″ SAS/SATA/NVMe drives
• 12 x 3.5″ SAS/SATA/NVMe drives
• 24 x 2.5″ drives (16 x NVMe drives + 8 x SAS/SATA drives)
• 2 x M.2 SSDs (SAS/SATA)
RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0
10 x PCIe expansion slots; support PCIe 5.0
4 x dual-width GPU cards and 1 x dual-width DPU card
Four 80 x 80 or six 60 x 60 hot-swappable counter-rotating fan modules in N+1 redundancy
2 x PSUs in 1+1 redundancy:
• 900 W/1500 W/2000 W Platinum AC PSUs
• 900 W/2000 W/3000 W Titanium AC PSUs
• 1200 W -48 V DC PSUs
• 1500 W 380 V high-voltage DC PSUs
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
•It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.
xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, Oracle, and Ubuntu
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4
CE, UL, CCC, FCC, VCCI, and RoHS
L-shaped, adjustable, and holding rails
86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
