Supreme Computing
Outstanding Security
Optimal Energy Efficiency
Next-Gen 2U2P Rack Server
Major application scenarios:
AI inference
Cloud computing
Virtualization
HPC

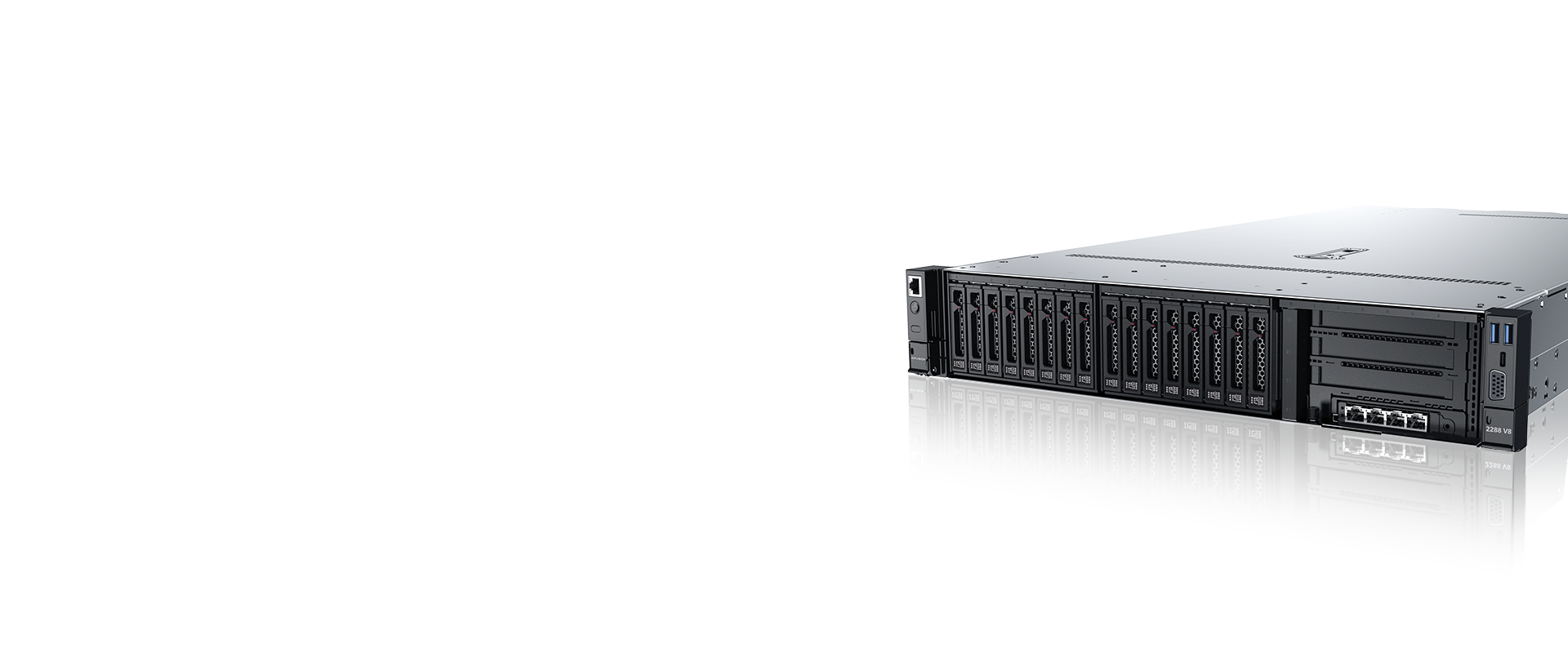

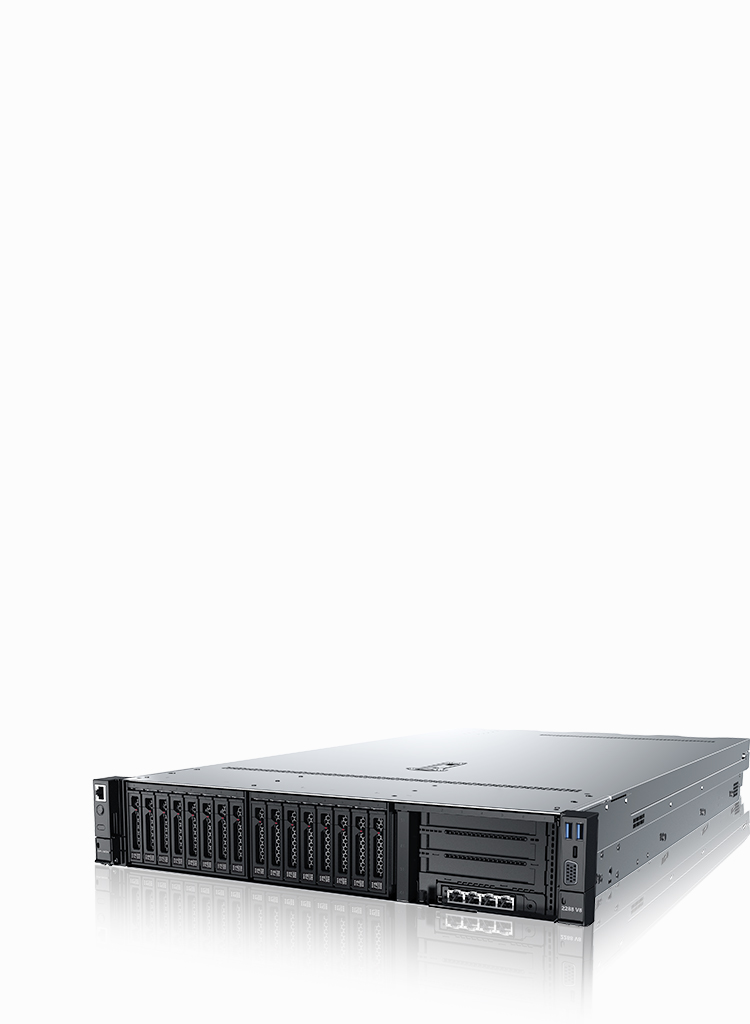

The FusionServer 2288 V8 is a next-generation 2U2P rack server tailored to meet the demands of AI inference, cloud computing, virtualization, High-Performance Computing (HPC), graphics processing, VDI, and big data analytics.
Offering low power consumption, unmatched scalability, solid reliability, and ease of management and deployment, the 2288 V8 is an ideal choice for addressing massive workloads in industries such as Internet, telecom, government and enterprise, finance, and manufacturing.
Next-Gen 2U2P Rack Server
Major application scenarios:
AI inference
Cloud computing
Virtualization
HPC
Supreme Computing

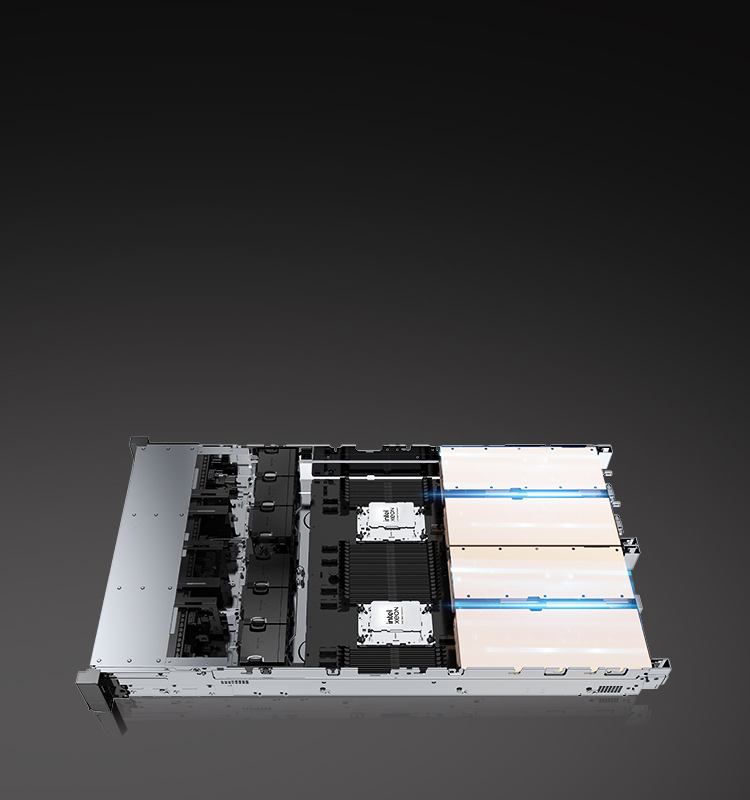

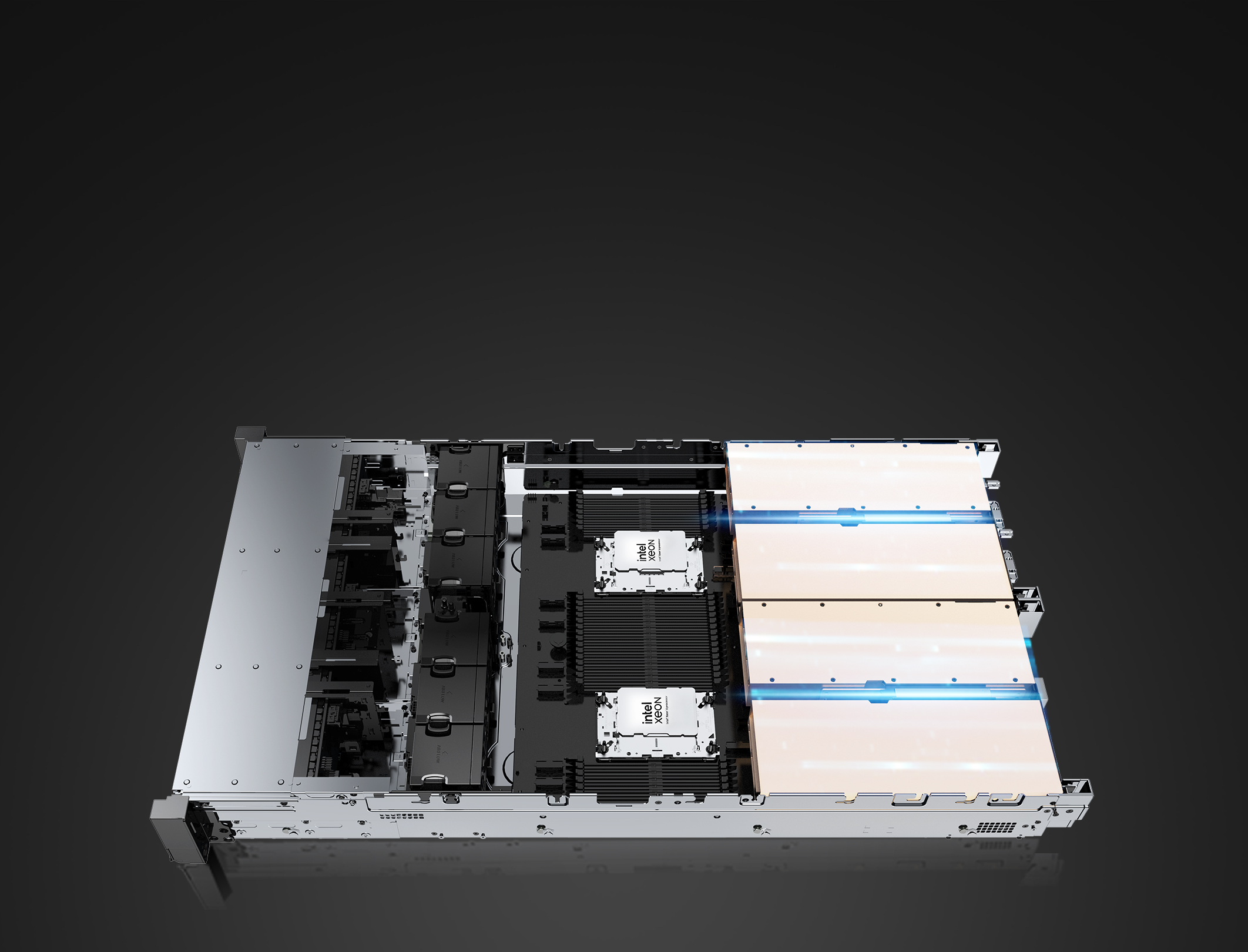

Power-Packed Performance
2 x Intel®Xeon®6 processors
4 x double-width GPUs, each with up to 450 W TDP

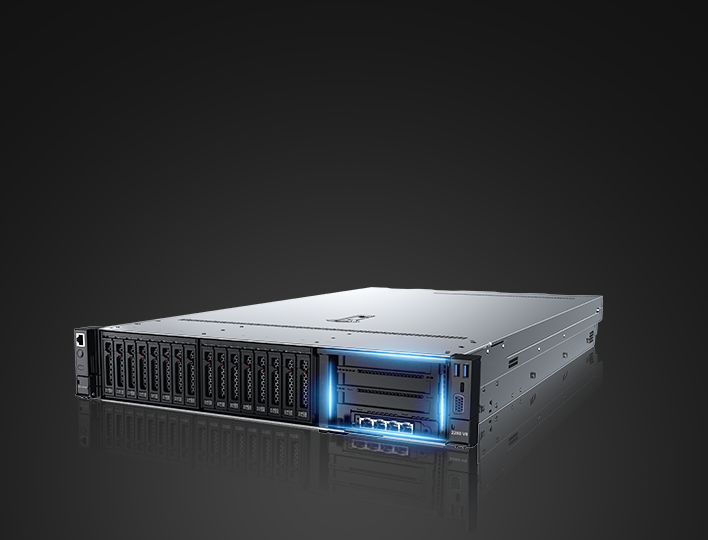

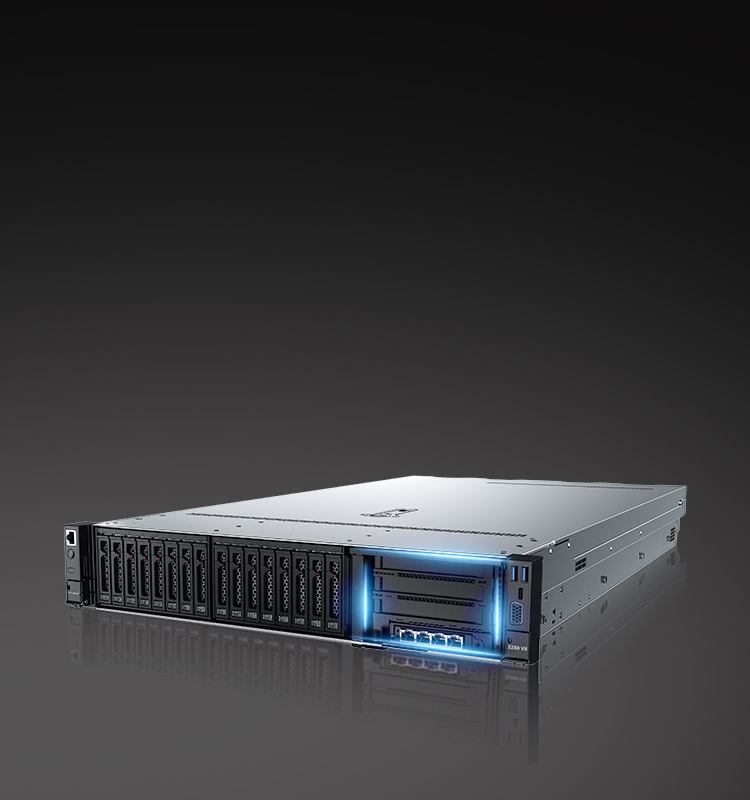

Exceptional Scalability
21 x PCIe slots, supporting PCIe 5.0 and front cable routing

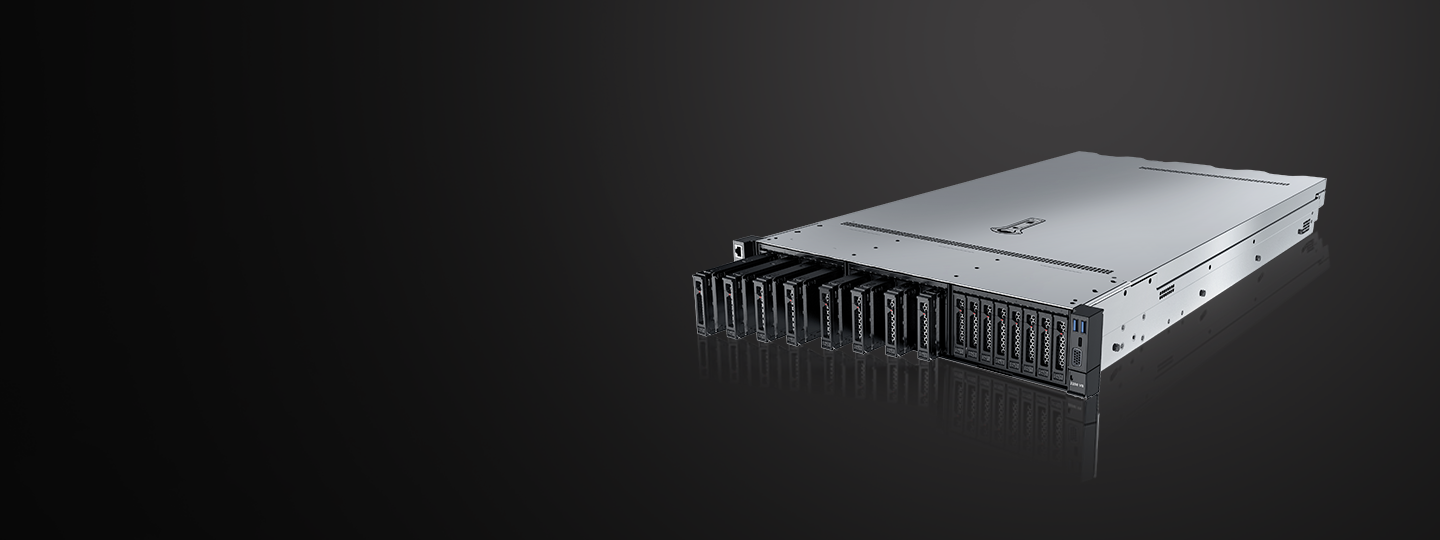

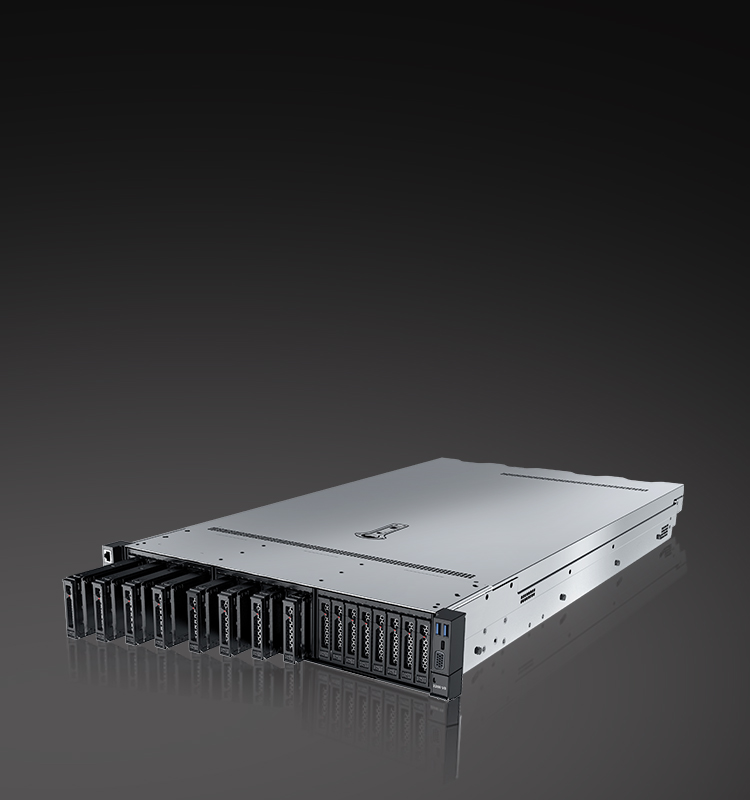

Flexible Configuration
Various drive configurations with hot-swappable support:
• 20 x 3.5" SAS/SATA drives
• 33 x 2.5" SAS/SATA drives
• 24 x NVMe SSDs
• 36 x E3.S SSDs
Outstanding Security

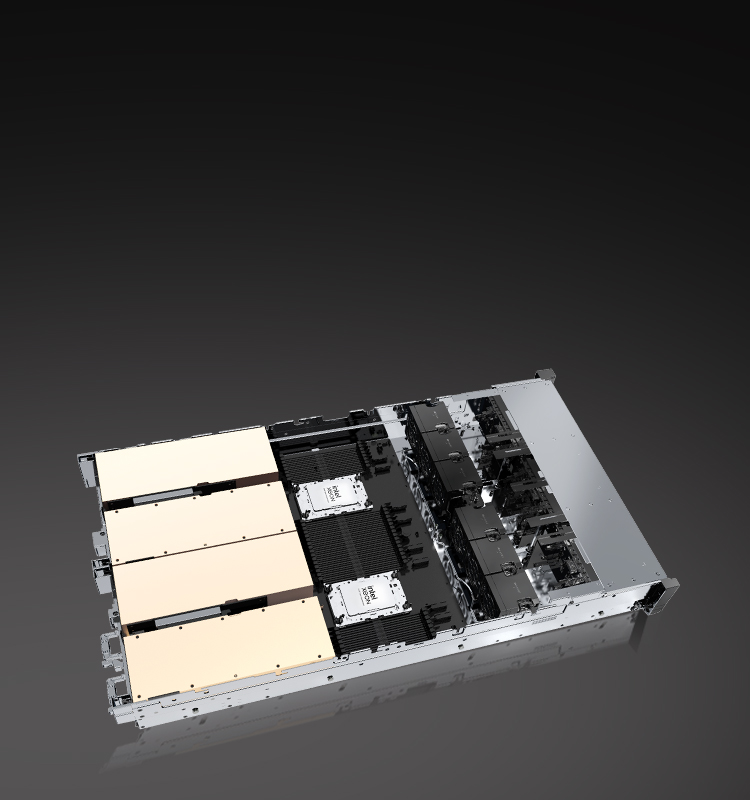

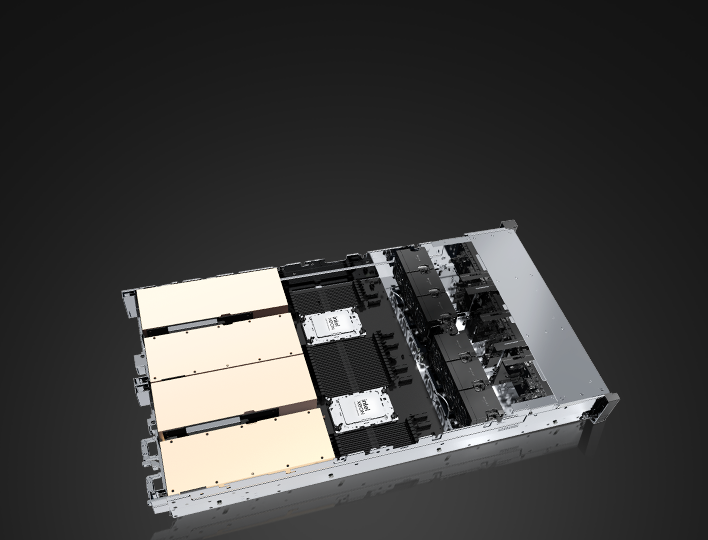

Enhanced Maintenance Efficiency
Quick, precise PCIe link fault diagnosis, boosting efficiency by 50%

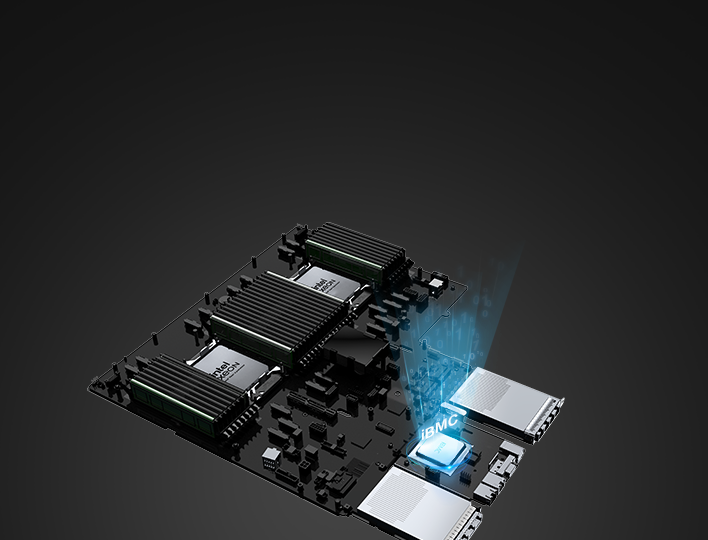

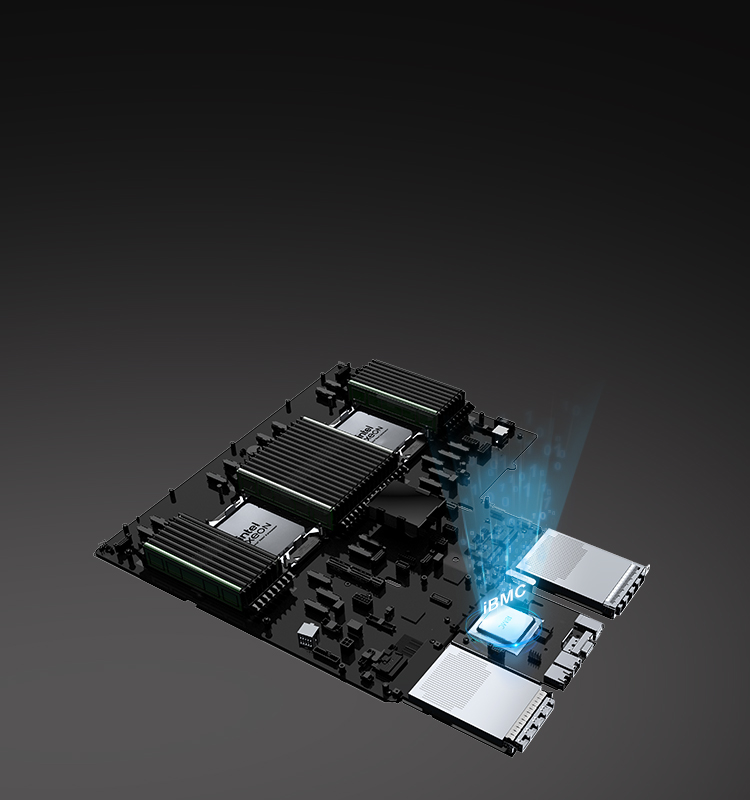

Reduced System Downtime
Industry-exclusive AI memory self-healing, with precise memory link diagnosis, cutting downtime by 66%
Optimal Energy Efficiency

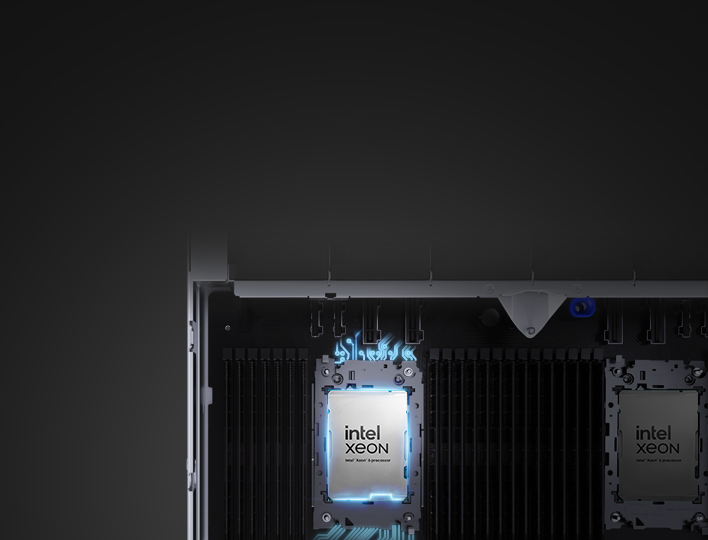

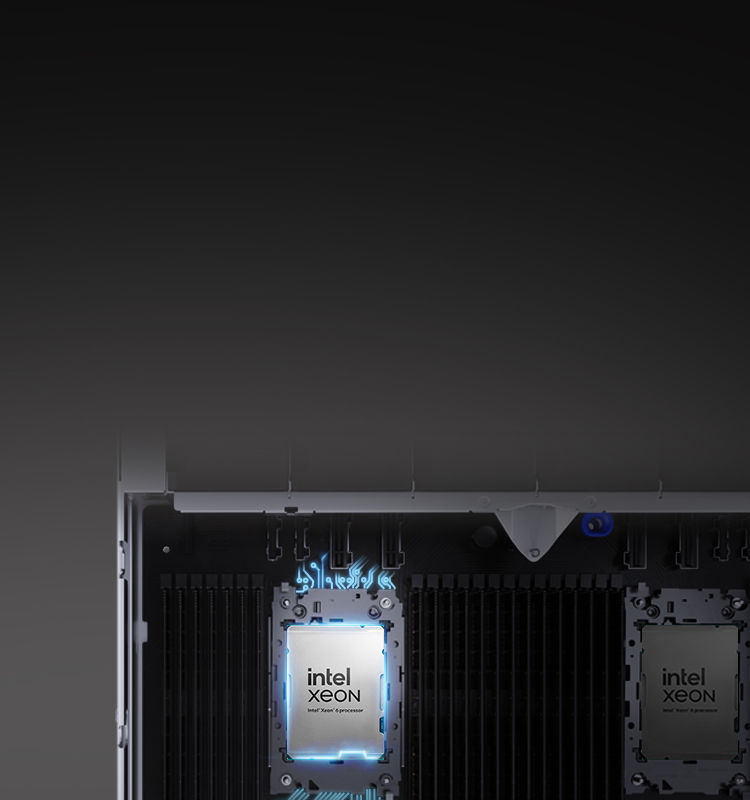

Dynamic Energy Management
Intelligent, non-disruptive tuning based on workloads, achieving peak energy efficiency without rebooting

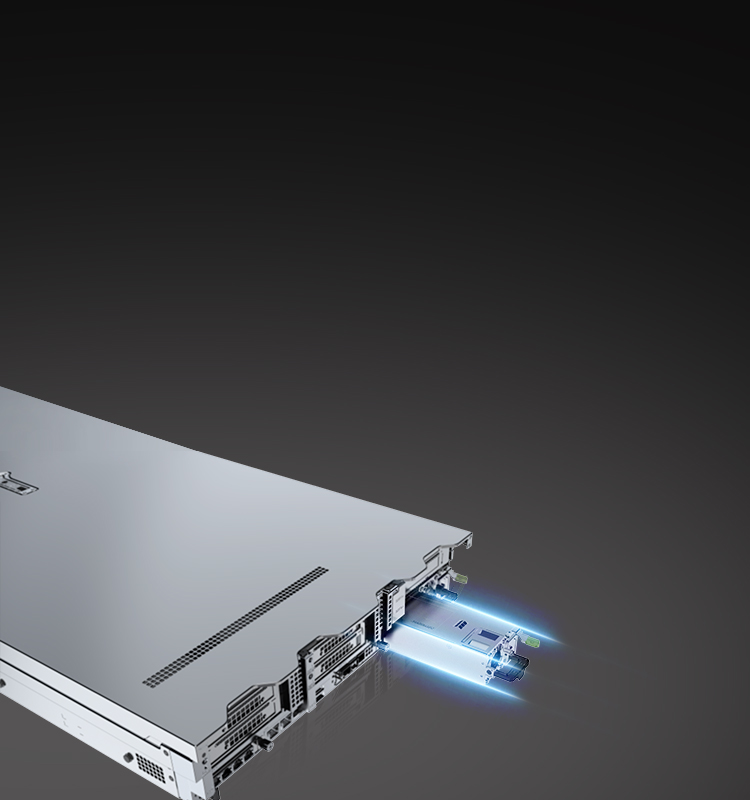

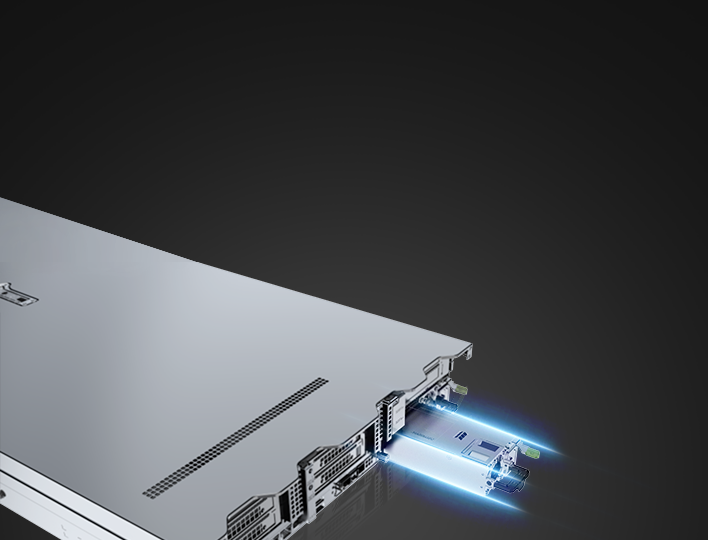

Industry-Leading Power Supply
97% power conversion efficiency, driven by three core innovations, setting the benchmark
Technical Specification
2U Rack Server
2 x Intel® Xeon®6 6700P/6500P/6700E Scalable processors with TDP 350W per processor
32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s
Hot-swappable drives configurations:
-24 x 2.5“ SAS/SATA/NVMe drives
-12 x 3.5“ SAS/SATA drives
Flash storage: 2 x M.2 SSDs, hardware RAID, and hot swap
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Multiple network expansion capabilities; 2 x FlexIO card slots dedicated for OCP 3.0 NICs, which can be configured as required; supporting hot swap and PCIe 5.0
Up to 10 x PCIe slots, supporting PCIe 5.0
4 x hot-swappable counter-rotating fans in N+1 redundancy
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
-The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management
-It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4
L-shaped guide rails, adjustable guide rails, and holding rails
86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
