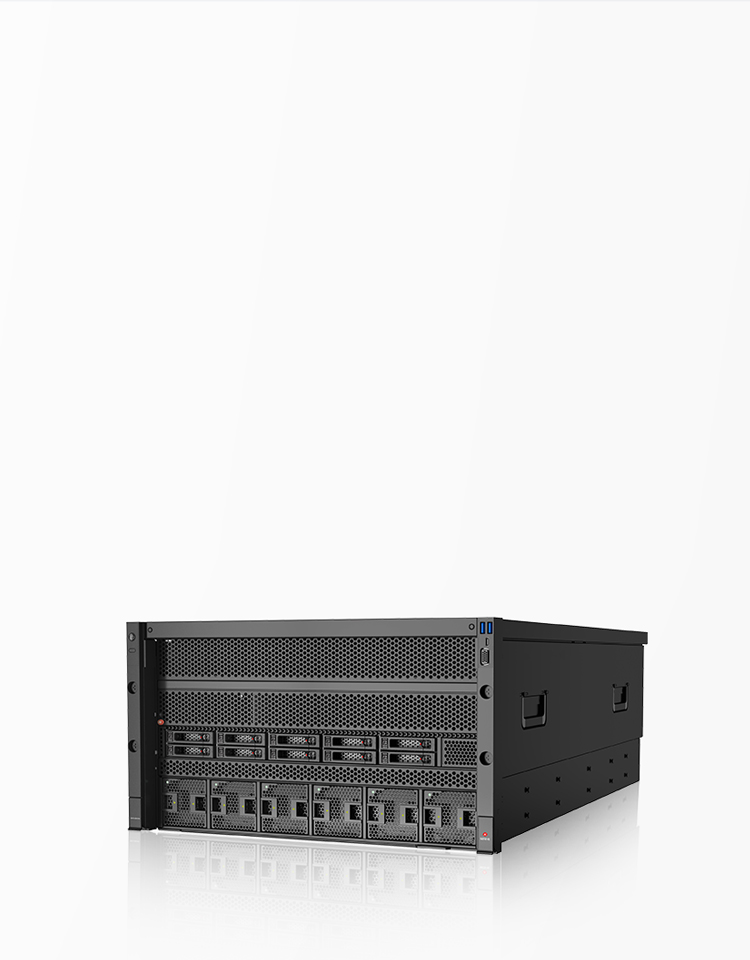

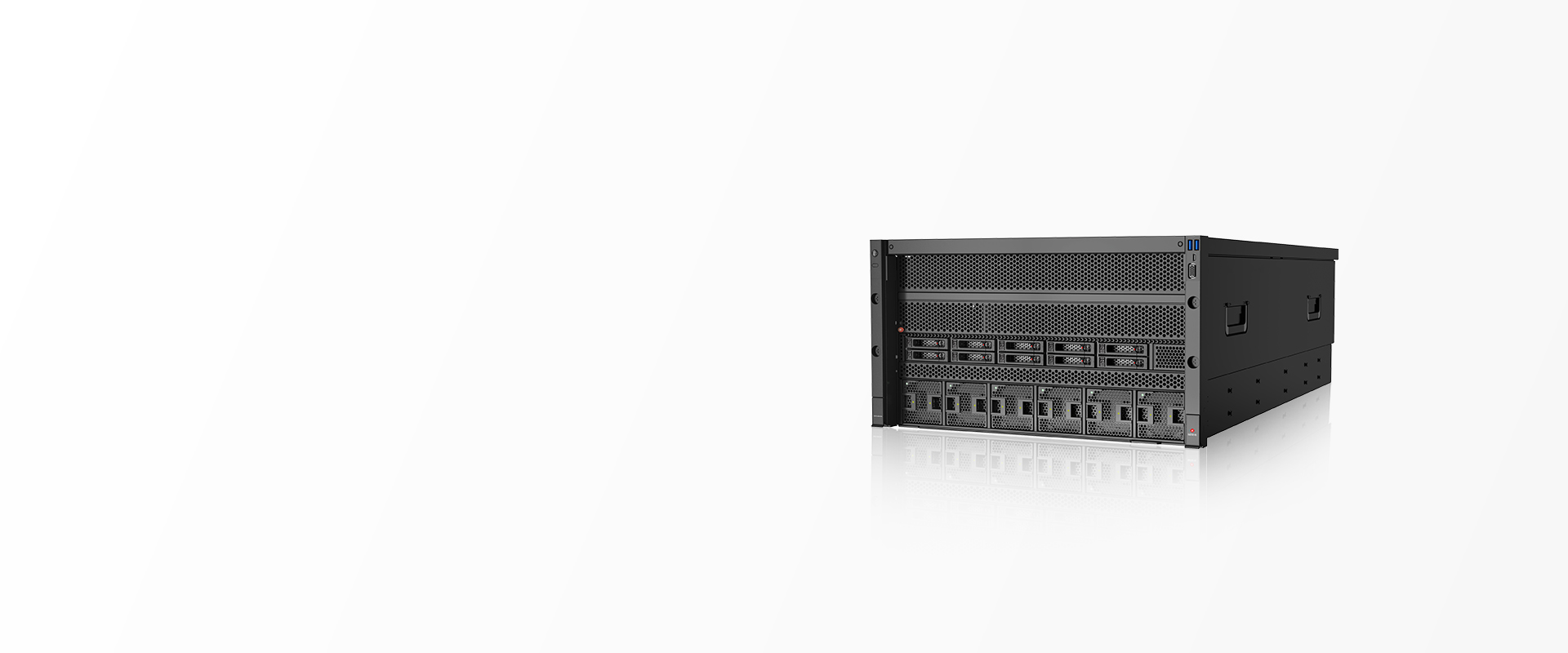

G6550 V8 AI Server

6U AI server

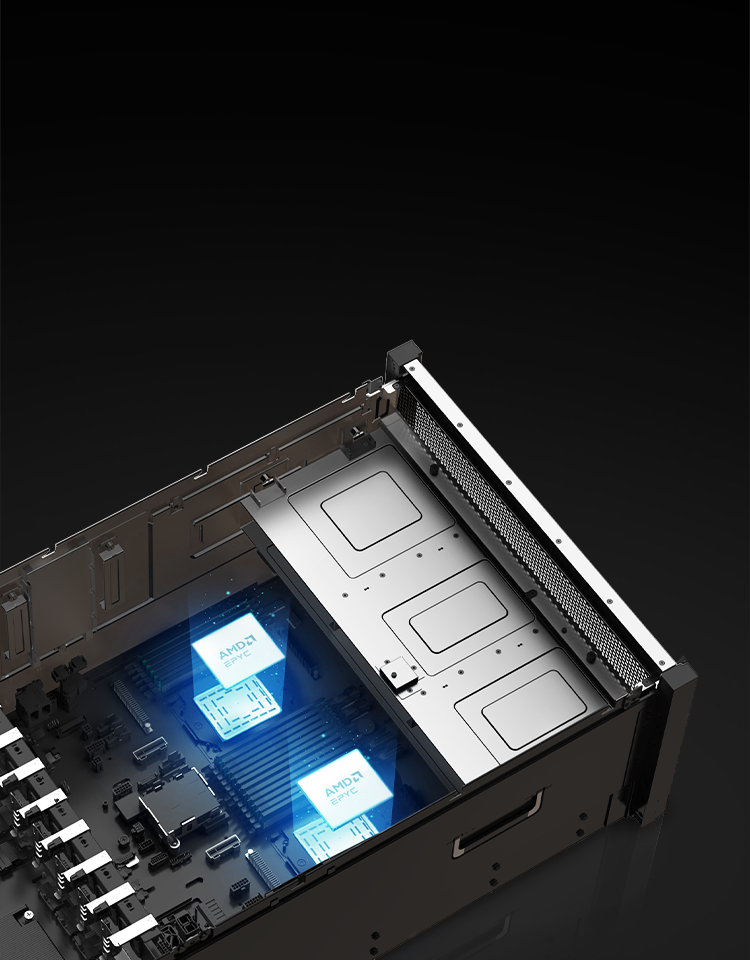

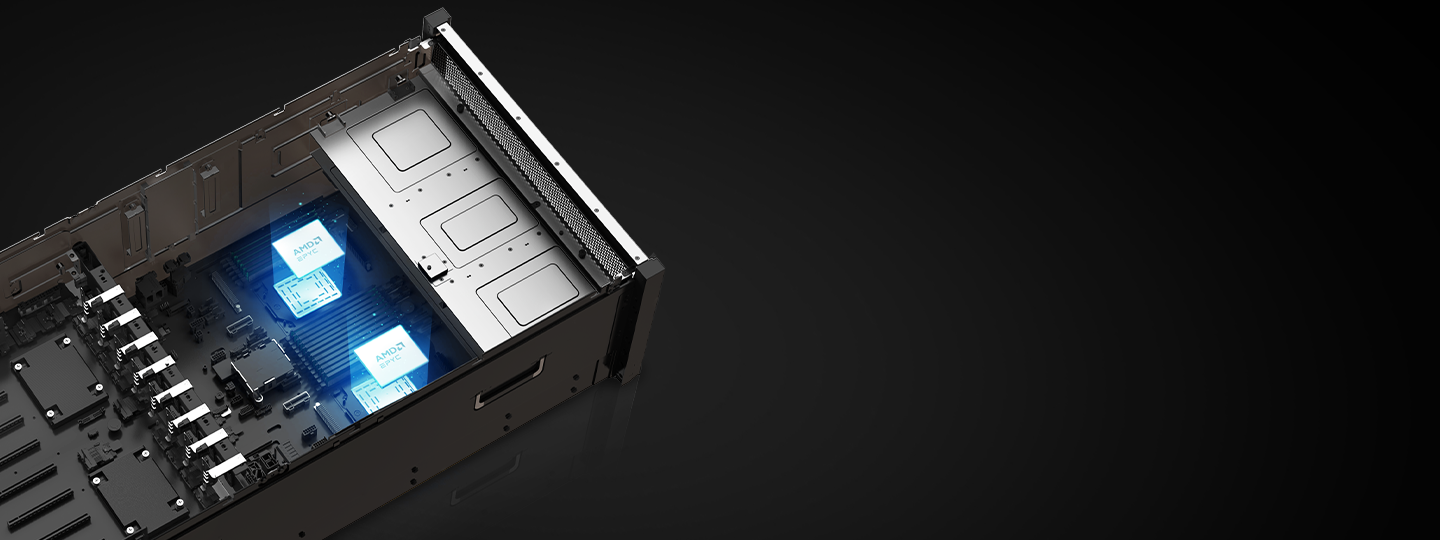

2 x 5th Gen AMD EPYC™ 9005 Series processors, each with up to 500 W TDP

24 x memory slots available for DDR5 DIMMs at up to 6400 MT/s

– Up to 10 x 2.5″ SAS/SATA/NVMe drives
– supports two M.2 SSDs

RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

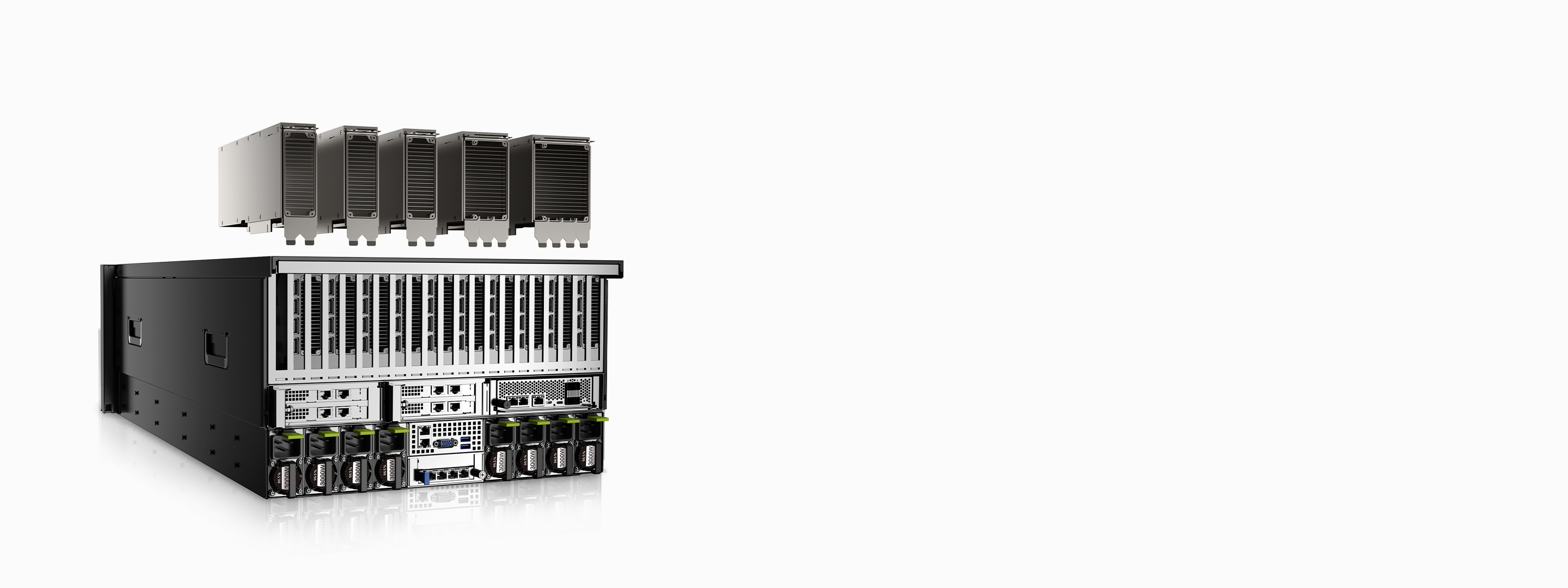

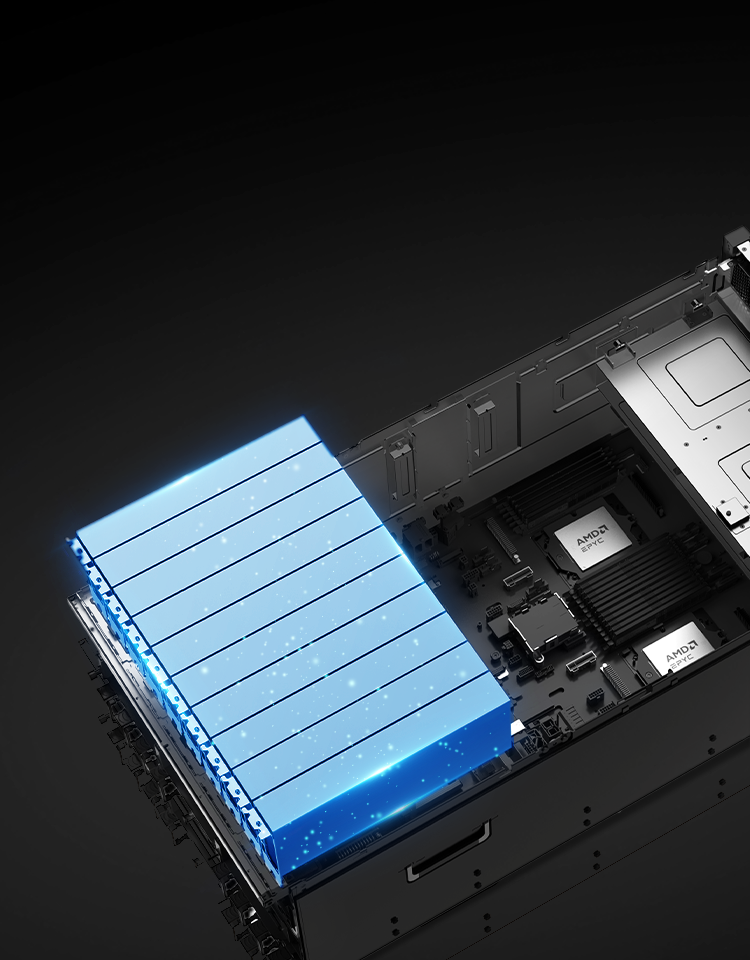

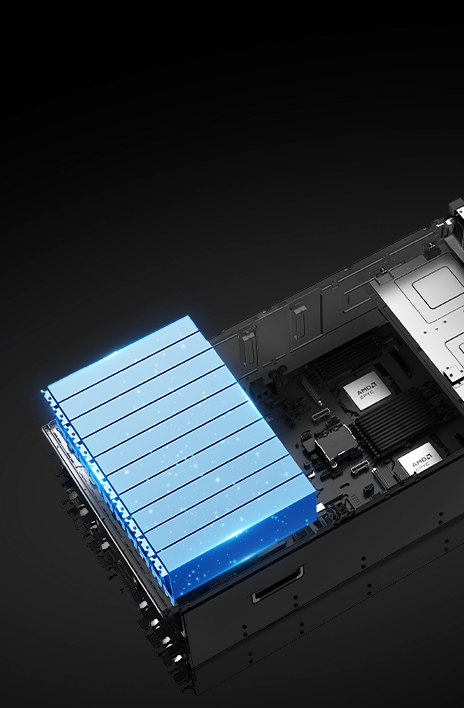

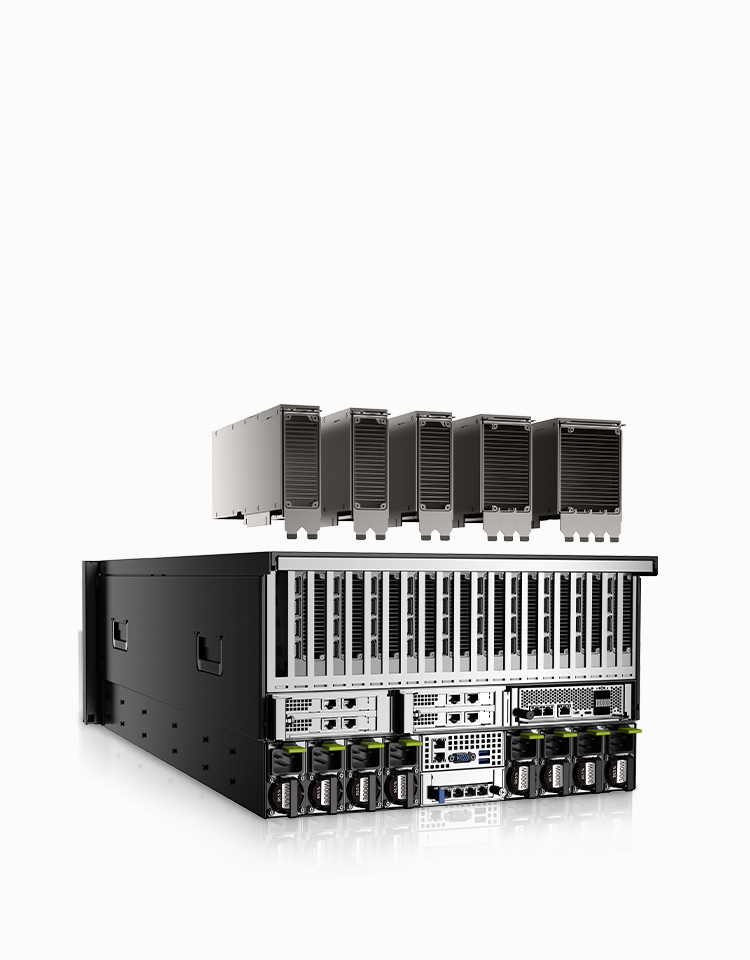

10 x dual-width GPUs

1 x OCP 3.0 NIC

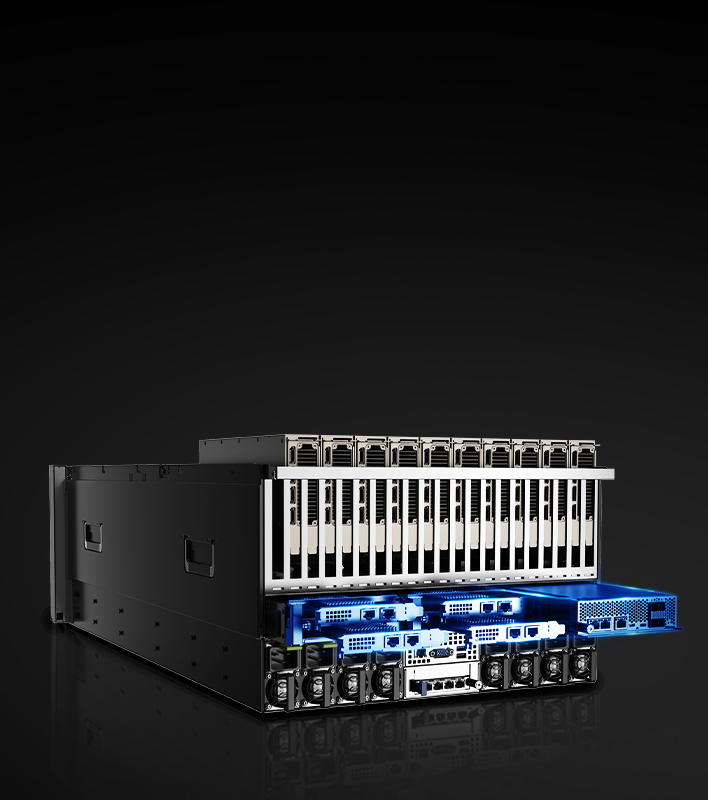

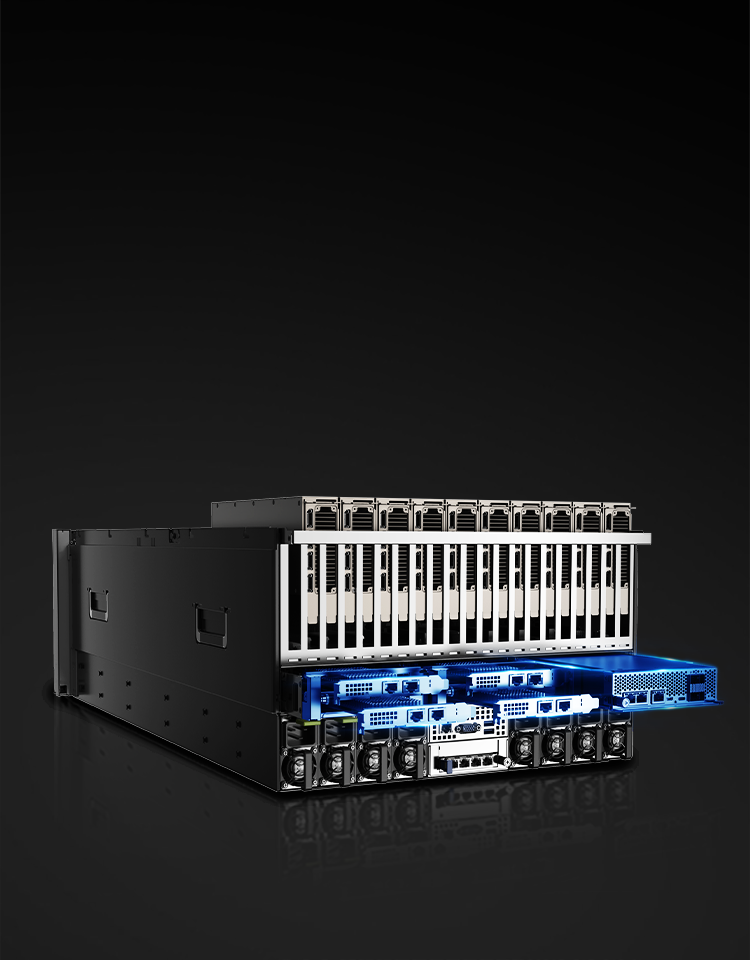

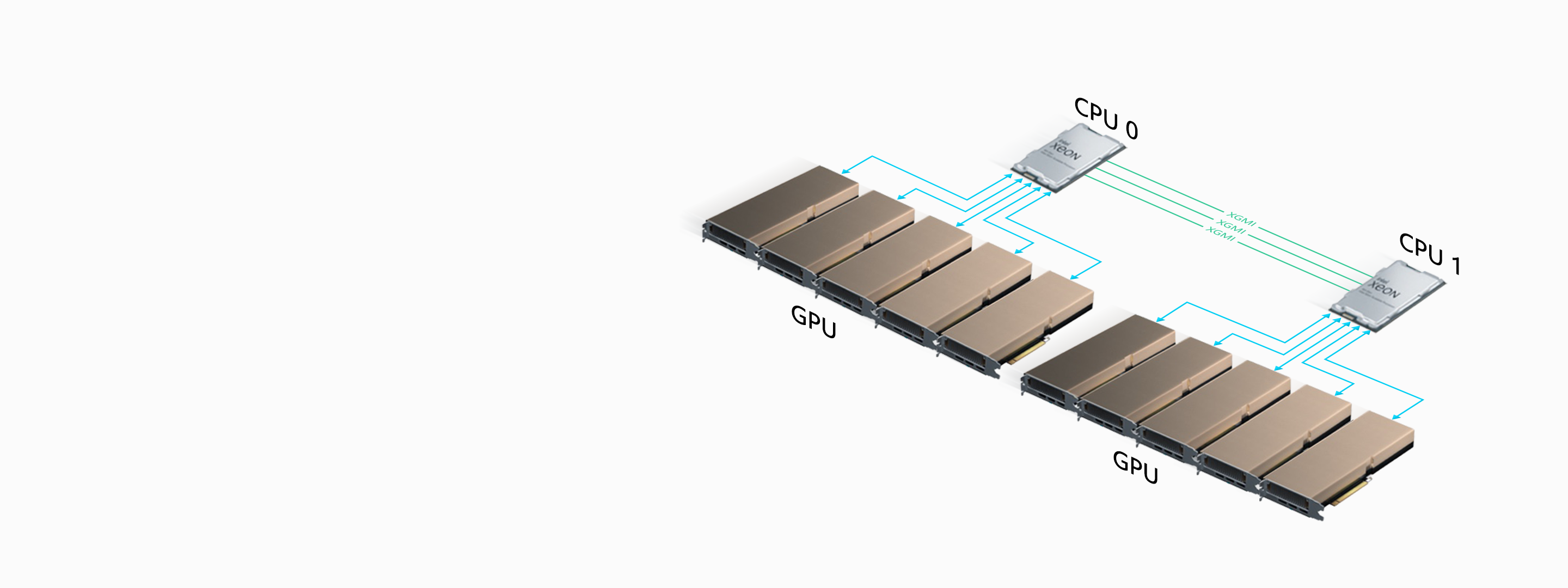

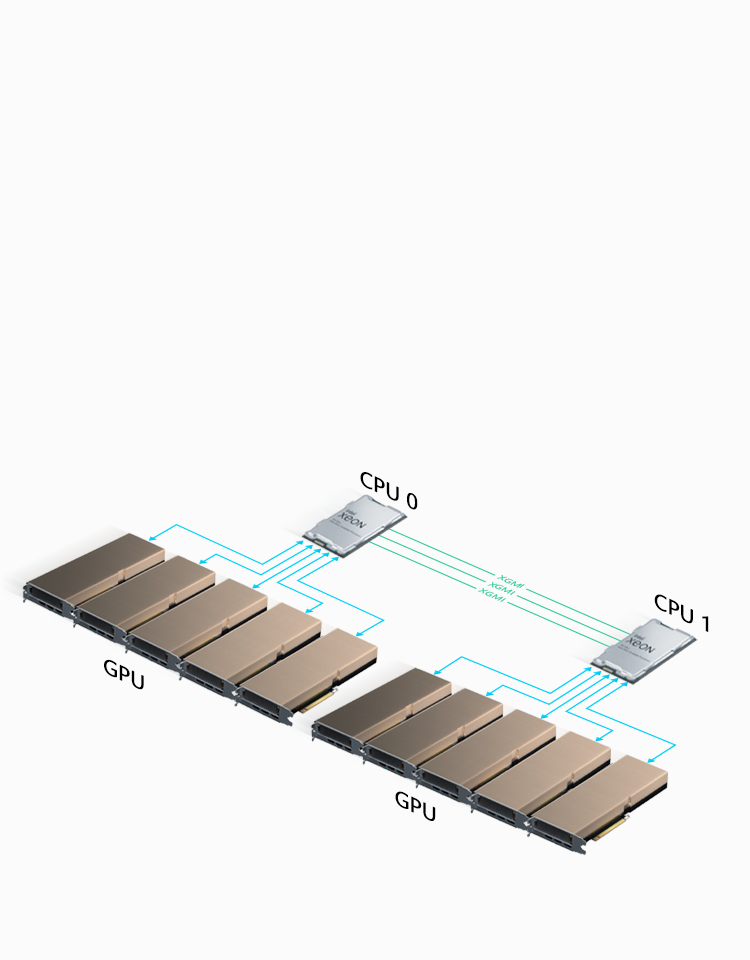

– Passthrough model：Up to 11 x standard PCIe 5.0 slots

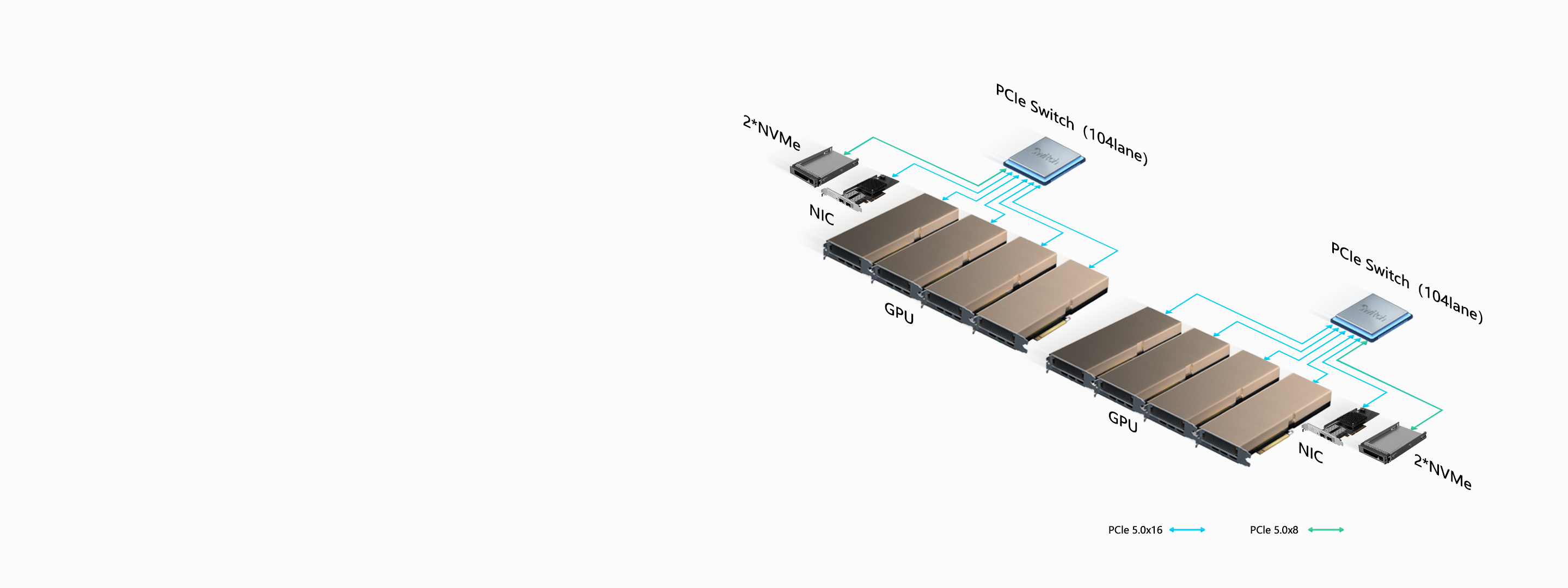

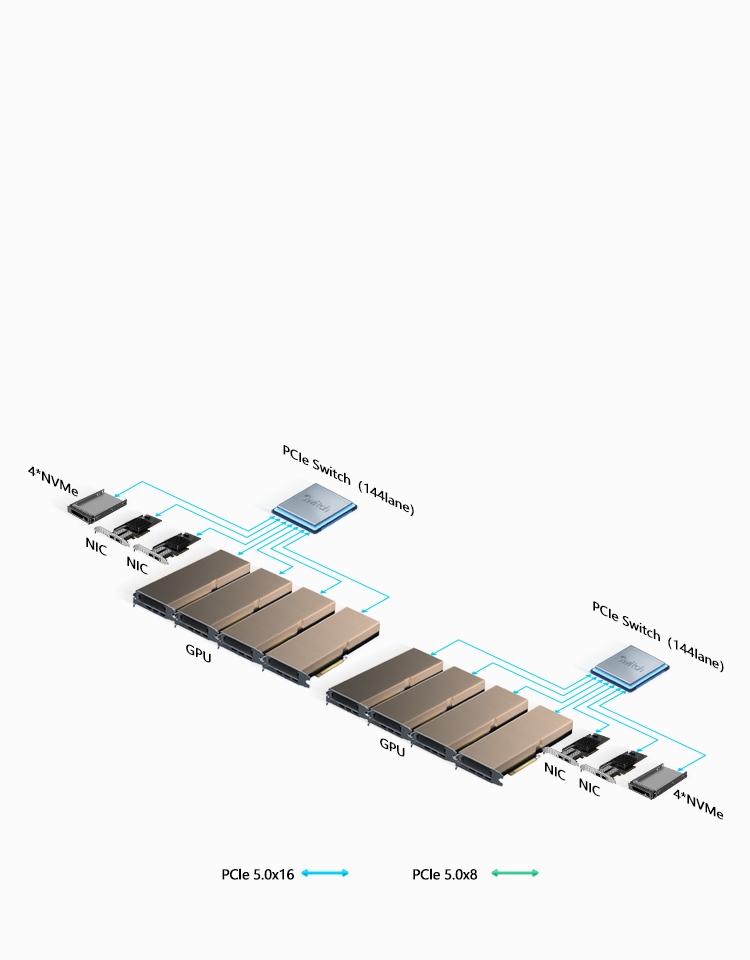

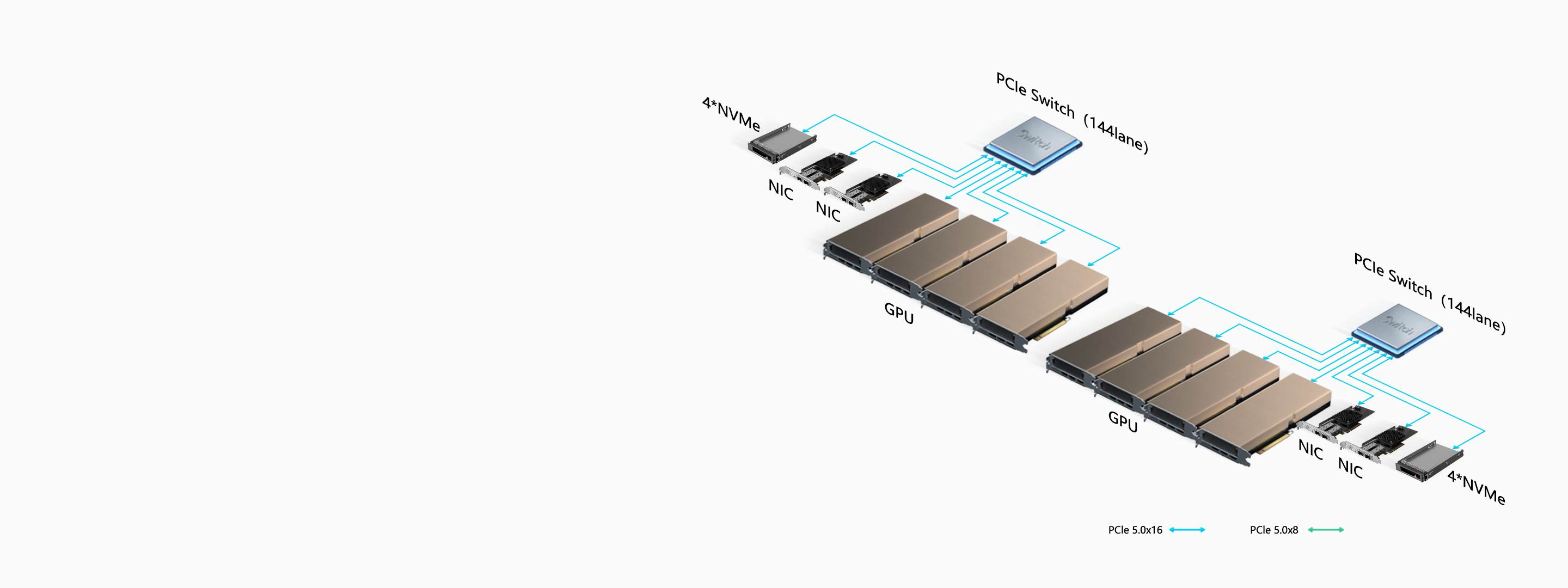

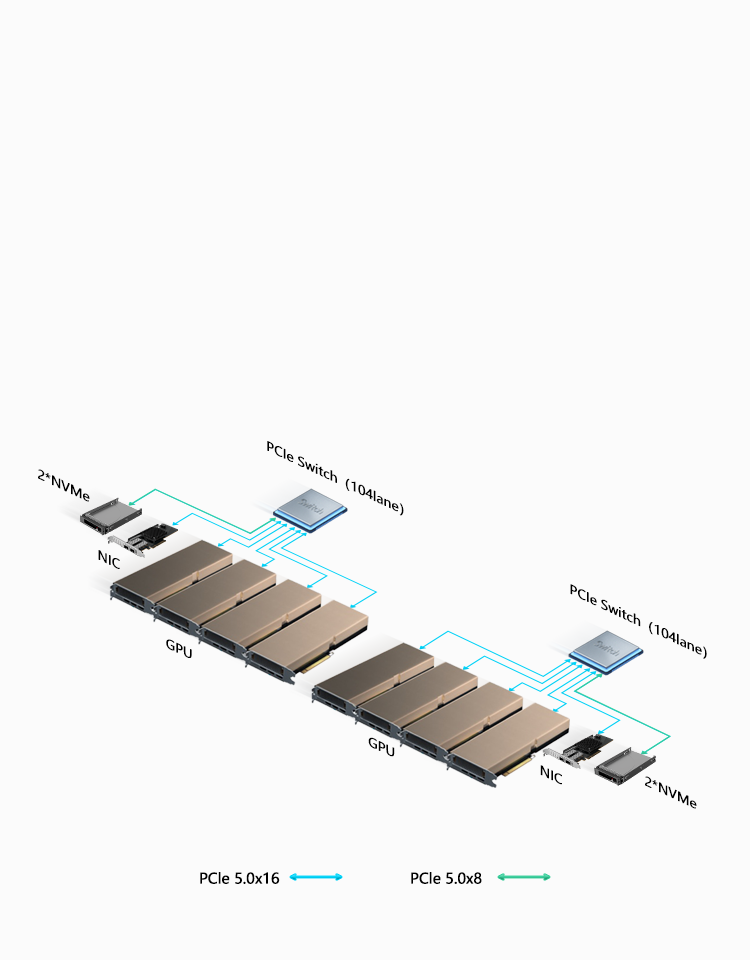

– Switch model：Up to 15 x standard PCIe 5.0 slots

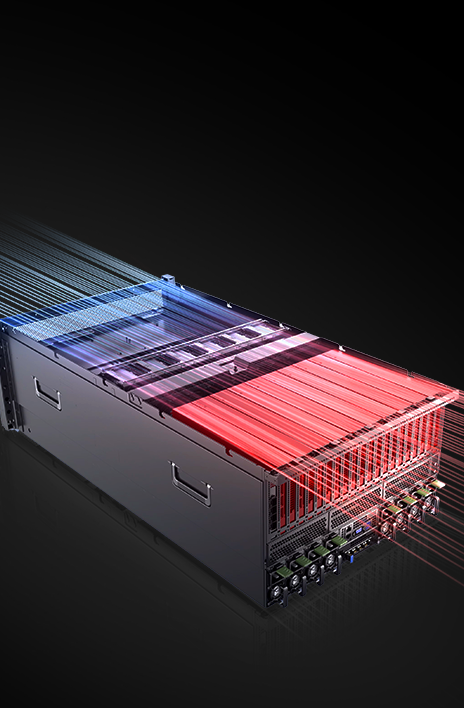

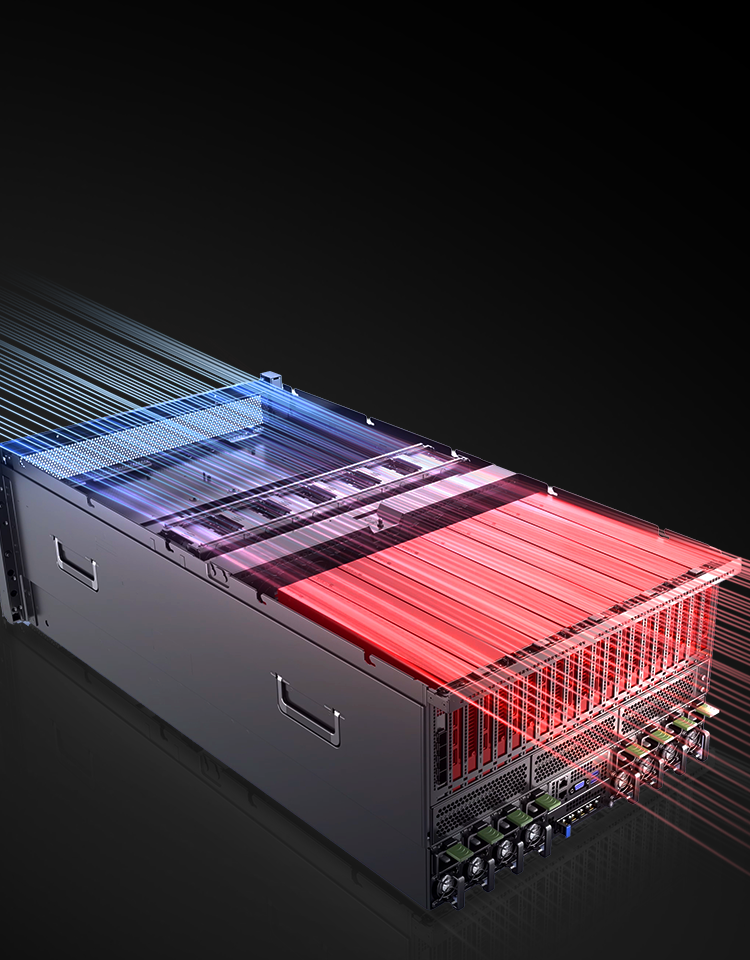

GPU: 12 or 18 x 6056++ fans in N+1 redundancy
CPU: 6 x 6056++ fans in N+1 redundancy

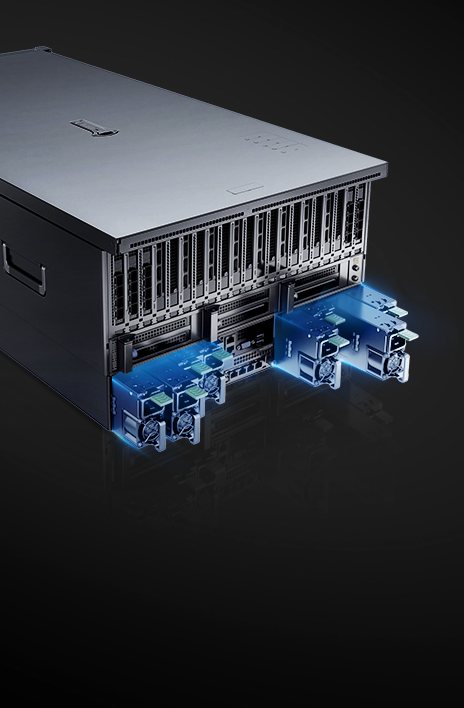

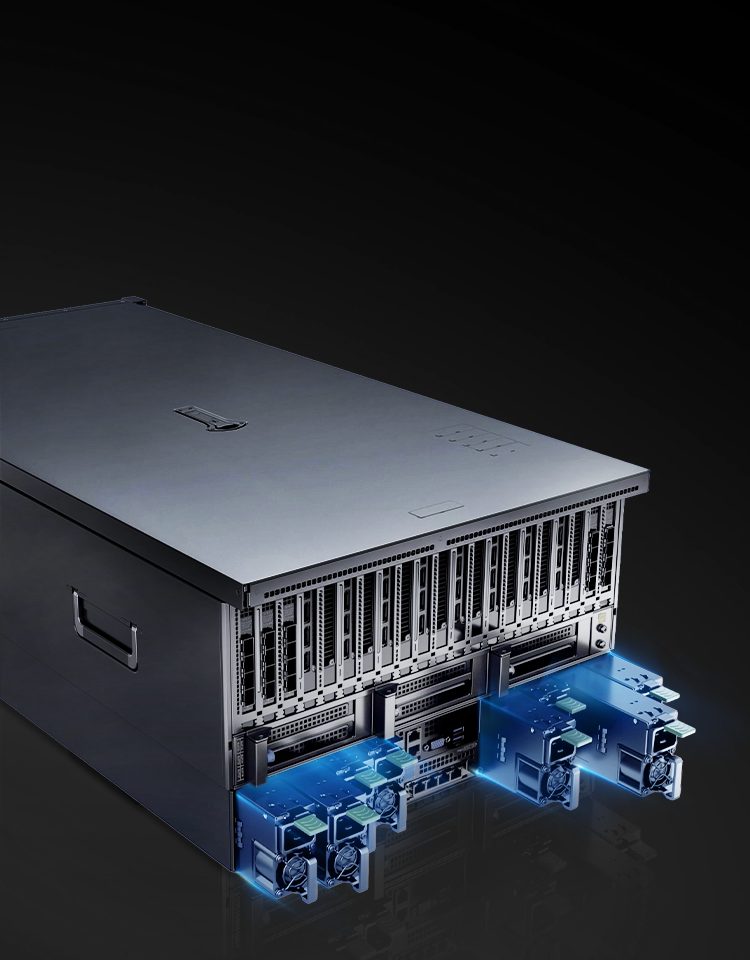

8 x 3200 W single-input or dual-input CRPSs in N+N redundancy

– The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote
management user interface based on HTML5/VNC KVM, and supports out-of-band management
functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified
management.
– It is optional to configure FusionDirector that enables intelligent, automatic, visualized, and refined
management throughout the server lifecycle.

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,
Oracle, Ubuntu, and openEuler

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel,
secure boot, and chassis intrusion detection

5ºC to 35ºC (41ºF to 95ºF), compliant with ASHRAE Class A1/A2

CE, UL, CCC, FCC, VCCI, and RoHS

L-shaped guide rails, adjustable guide rails, and holding rails

263.9 mm x 447 mm x 850 mm (10.39 in. x 17.60 in. x 33.46 in.)
