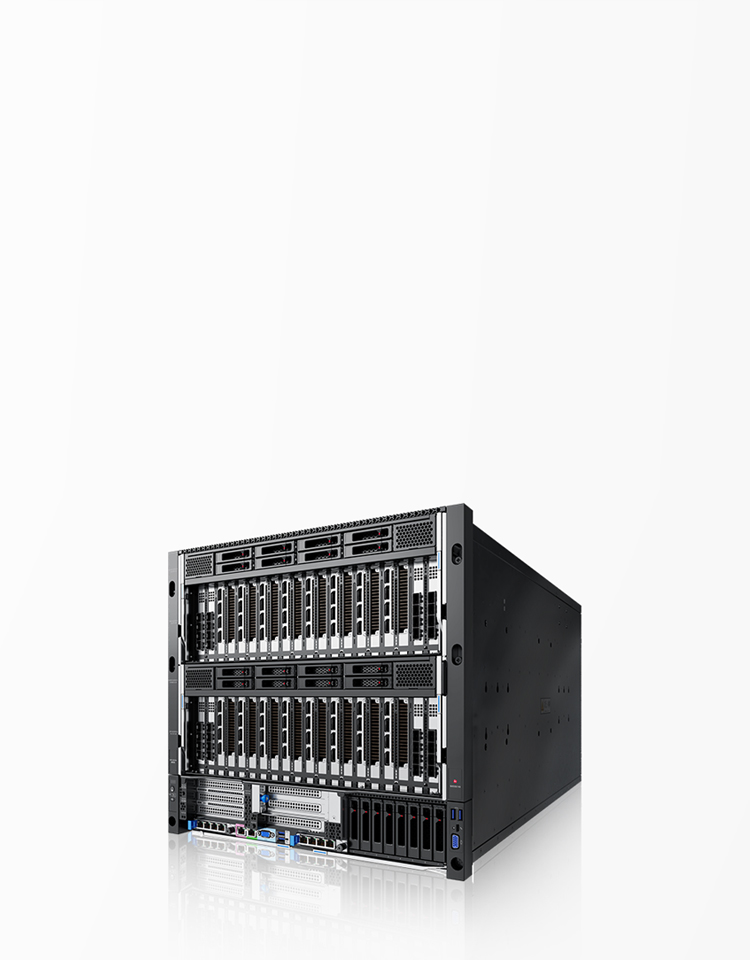

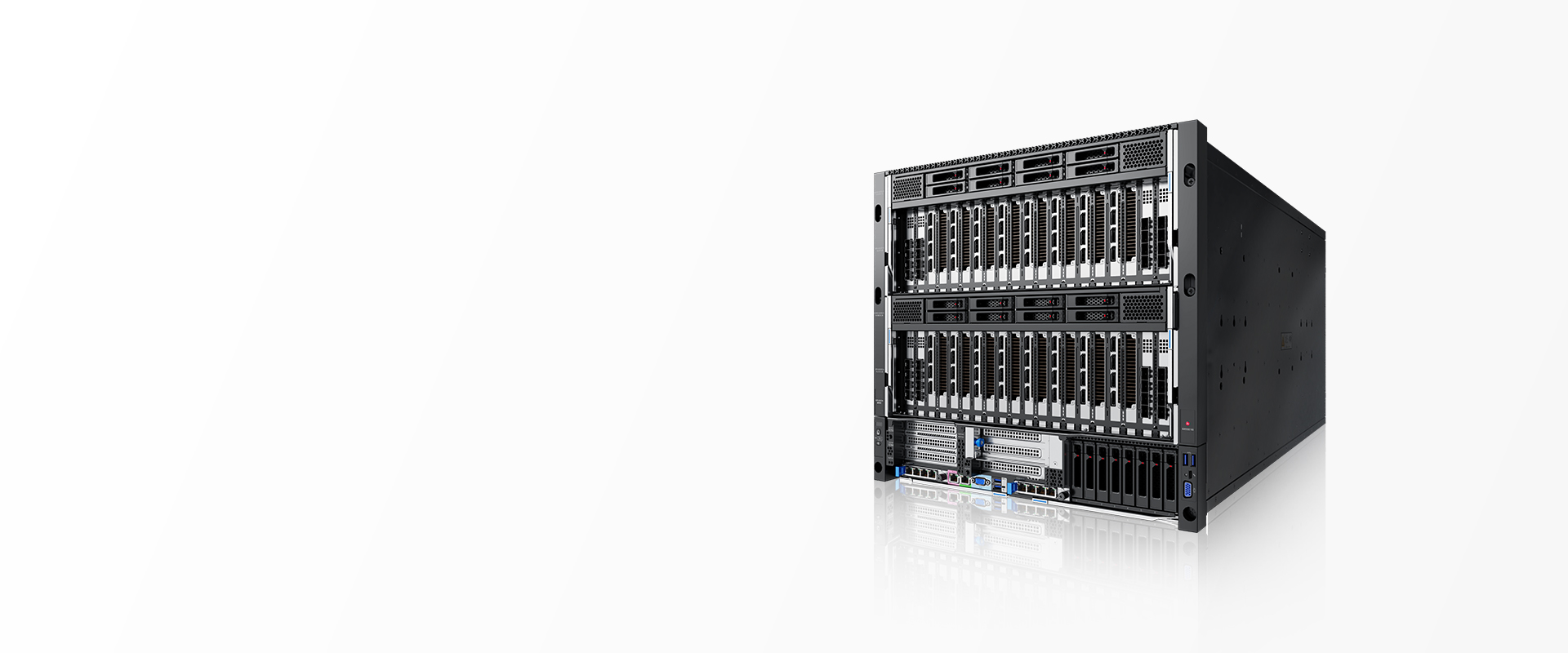

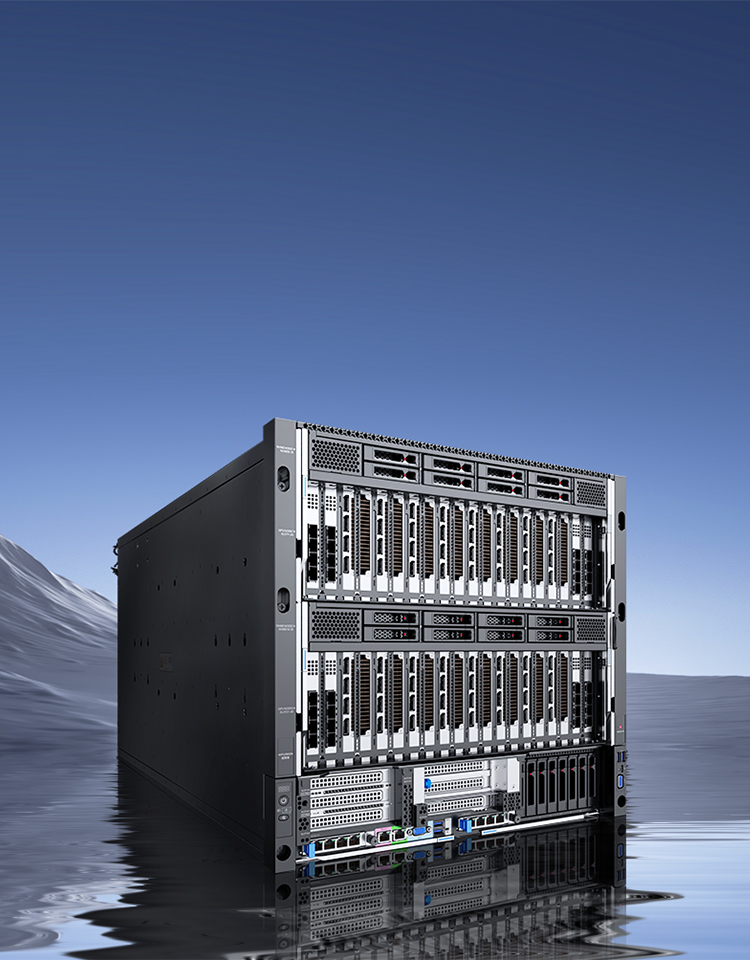

FusionServer G8550 V8 AI Server
Outstanding Performance

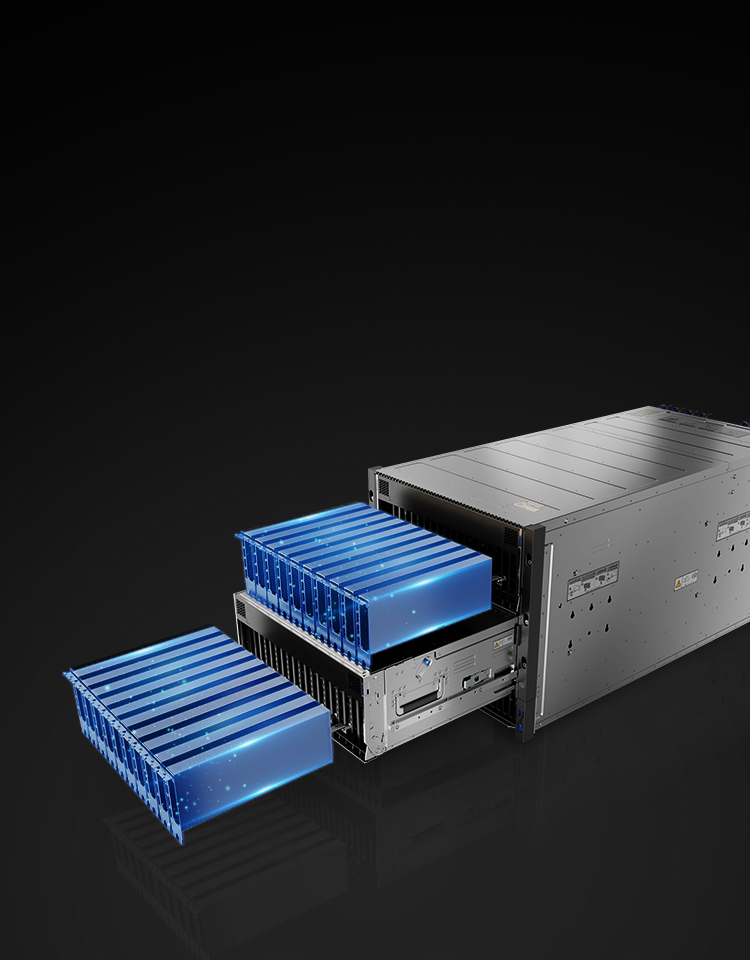

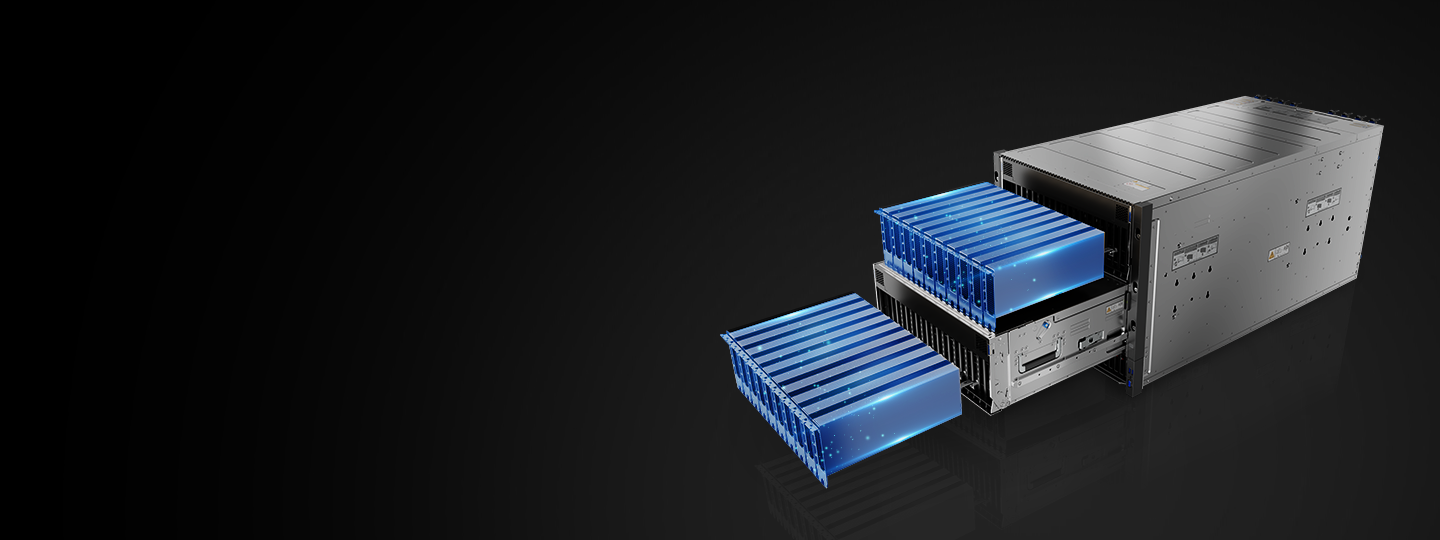

Ultimate training & inference performance
up to 20 dual-width GPU cards with 600 W TDP each

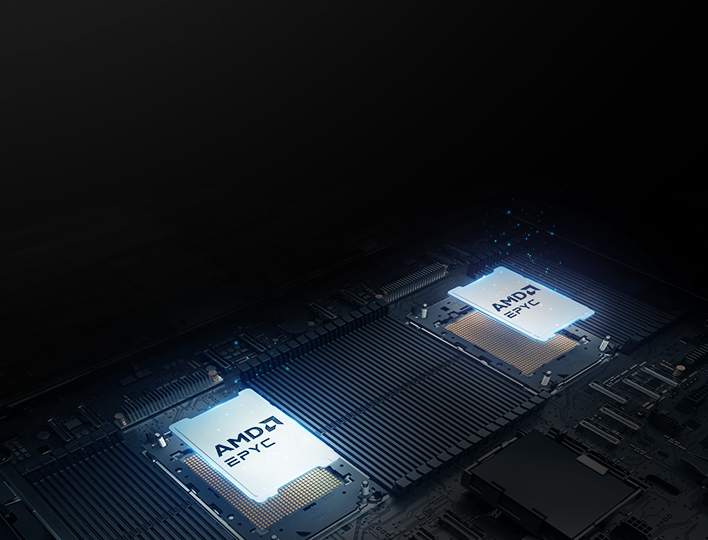

Enhanced CPU compute
two AMD Turin processors, each with a TDP of up to 500 W

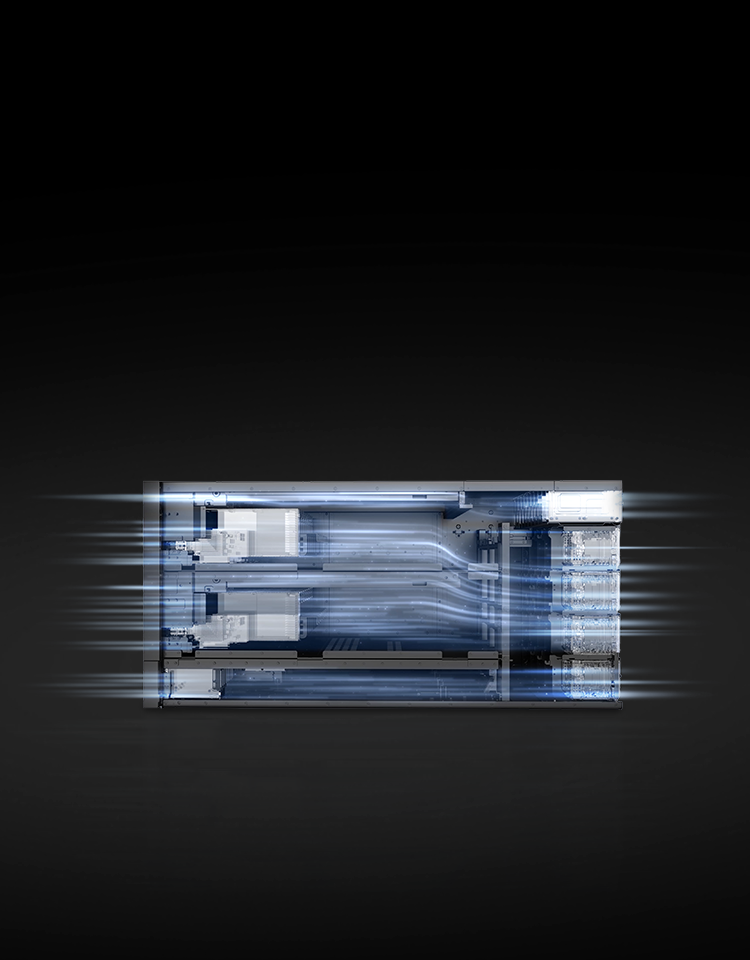

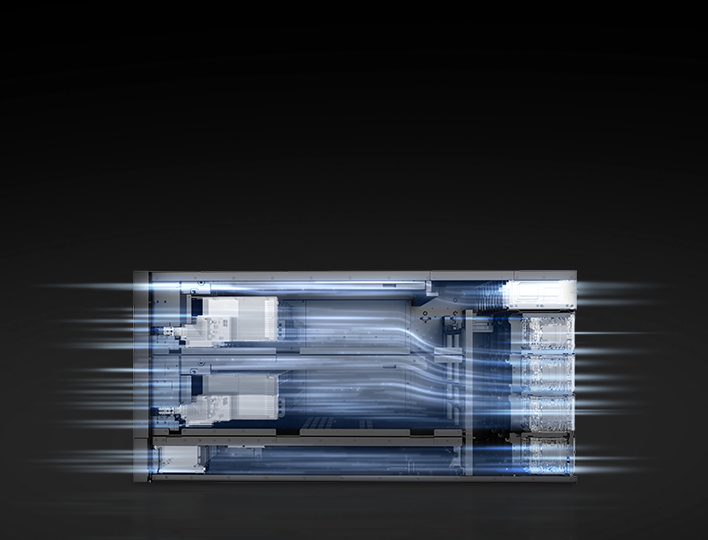

Advanced Air Cooling
zoned thermal design and targeted airflow for key components, enabling stable operation at ambient temperatures up to 35°C (95°F)

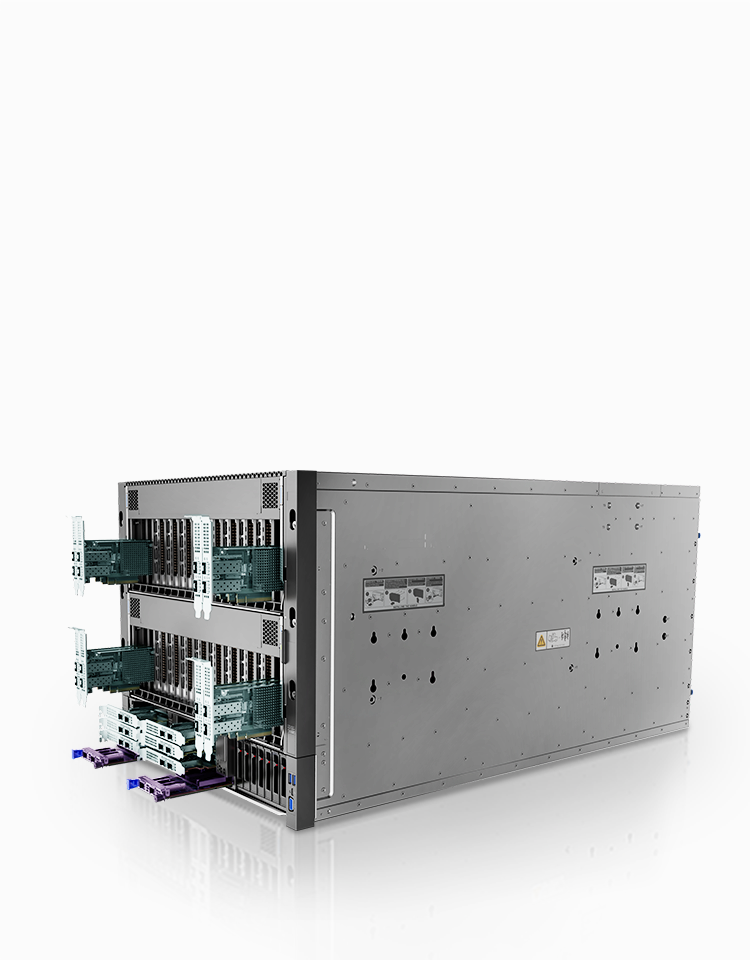

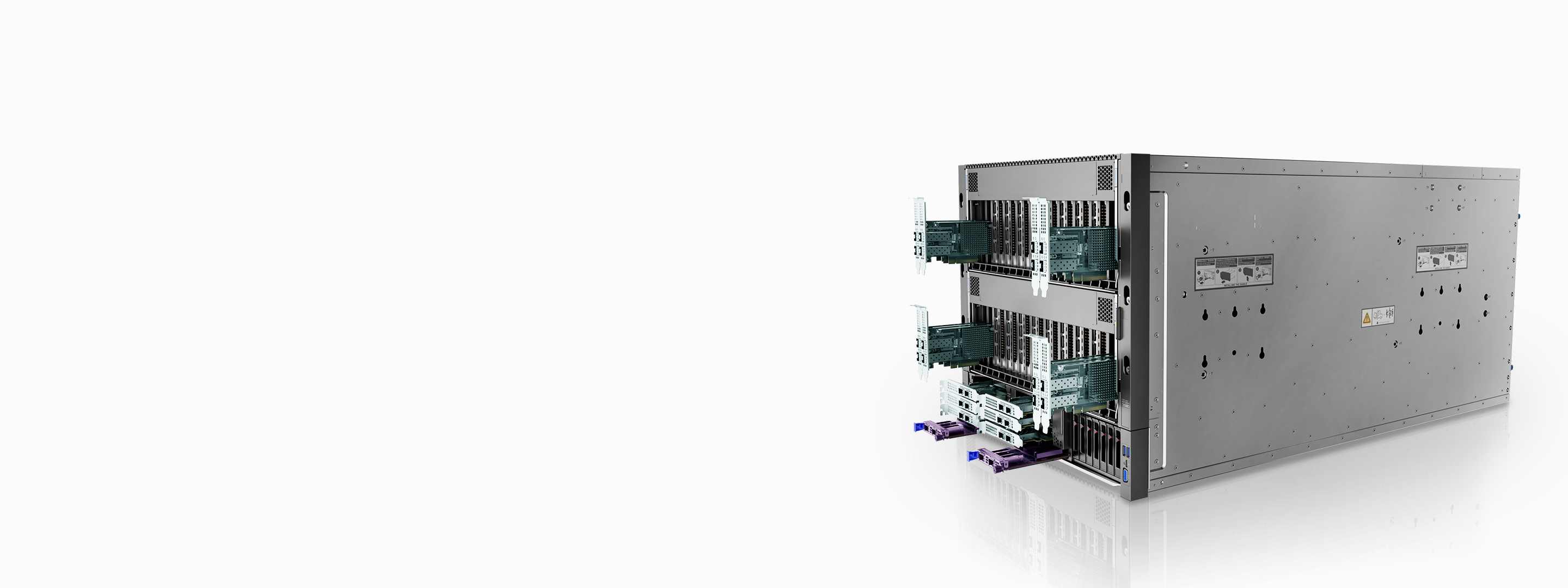

Flexible Expansion

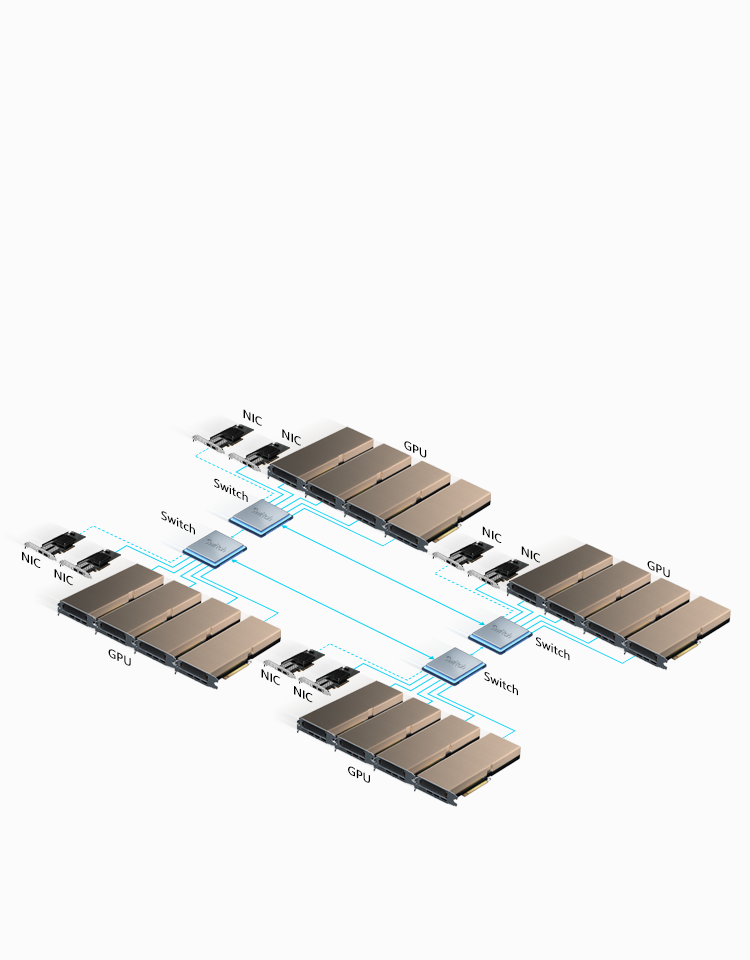

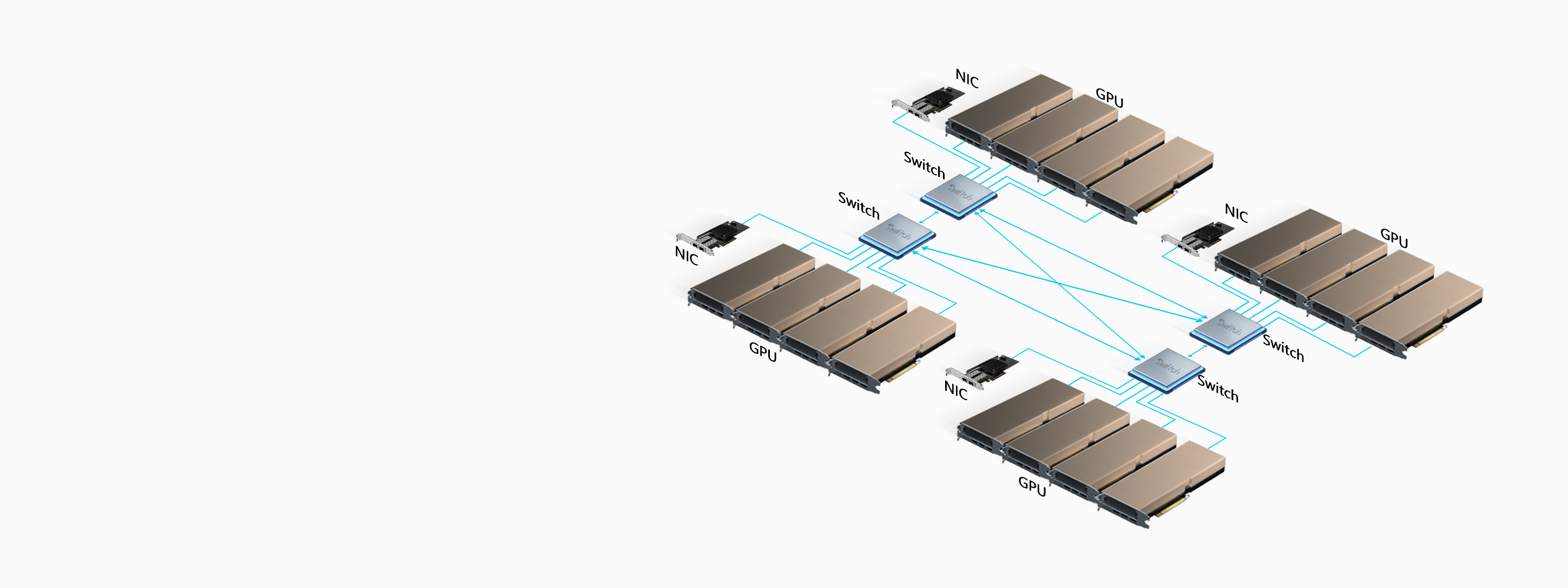

Leading Architecture

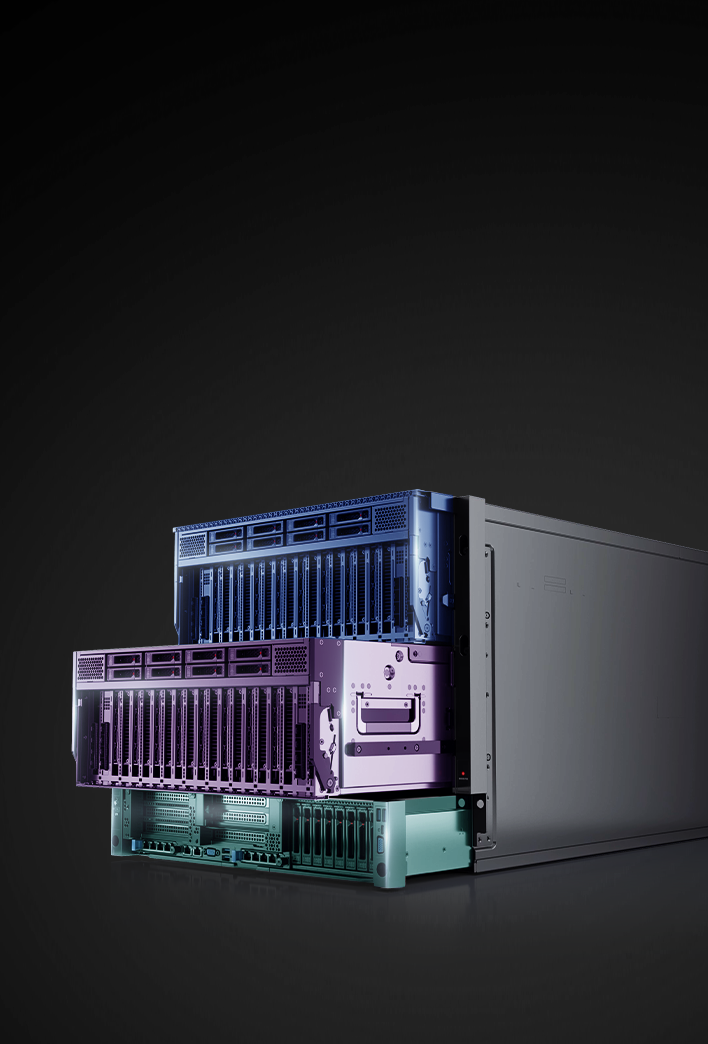

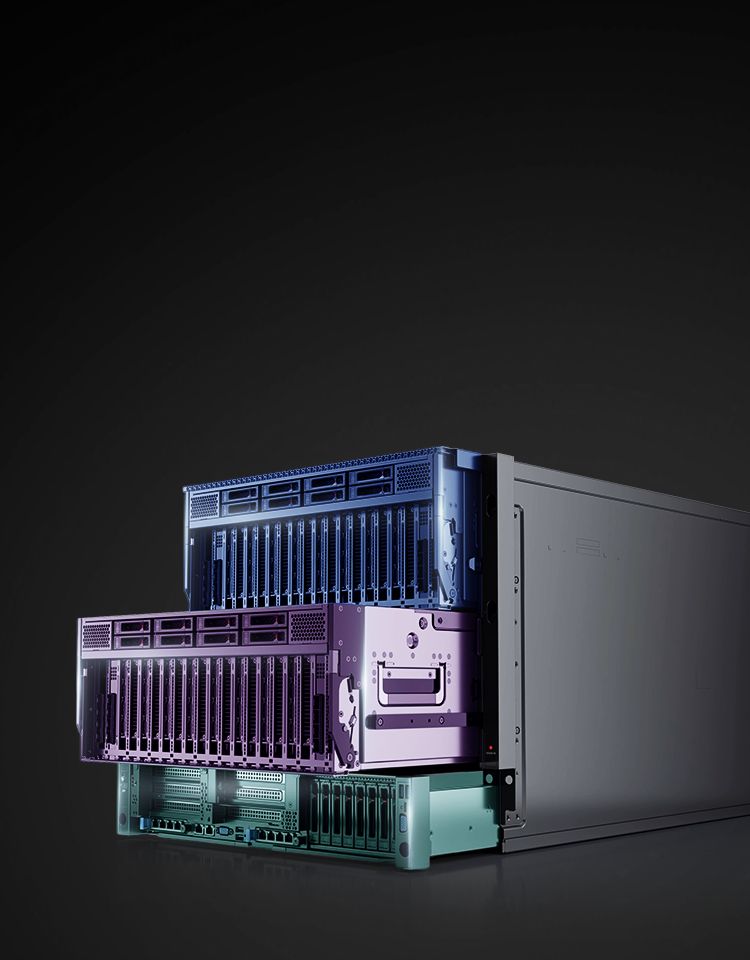

Modular design
seven types of highly cohesive, loosely coupled modules, each reconfigurable and independently upgradable

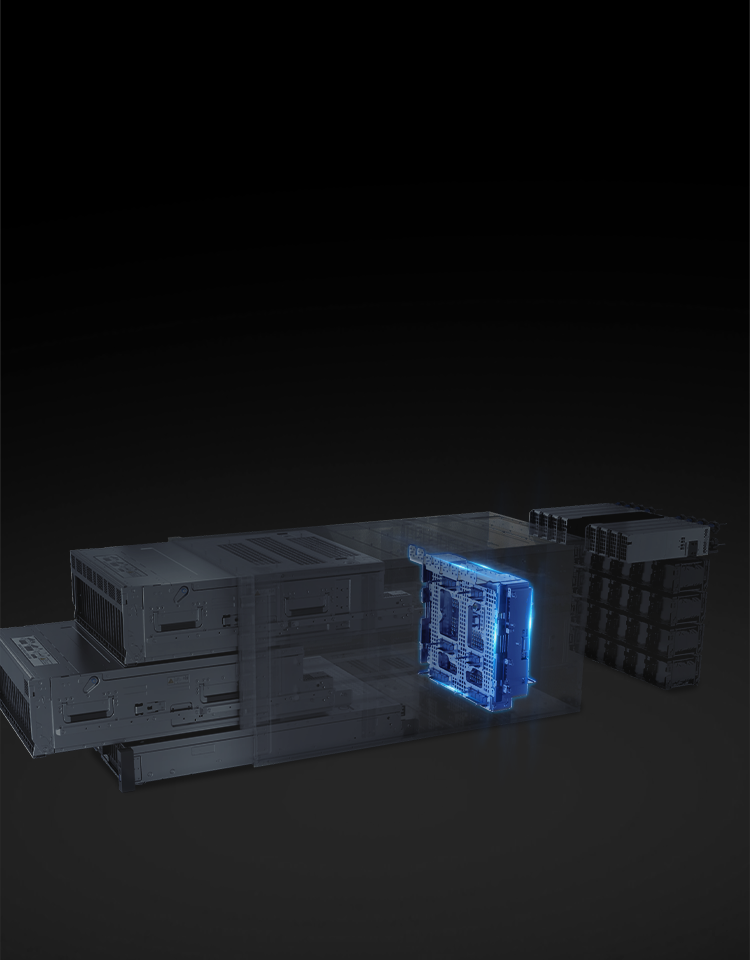

Simplified O&M
blind-mate cabling for I/O modules enabled by the cable tray, allowing for maintenance without rack ejection or chassis opening

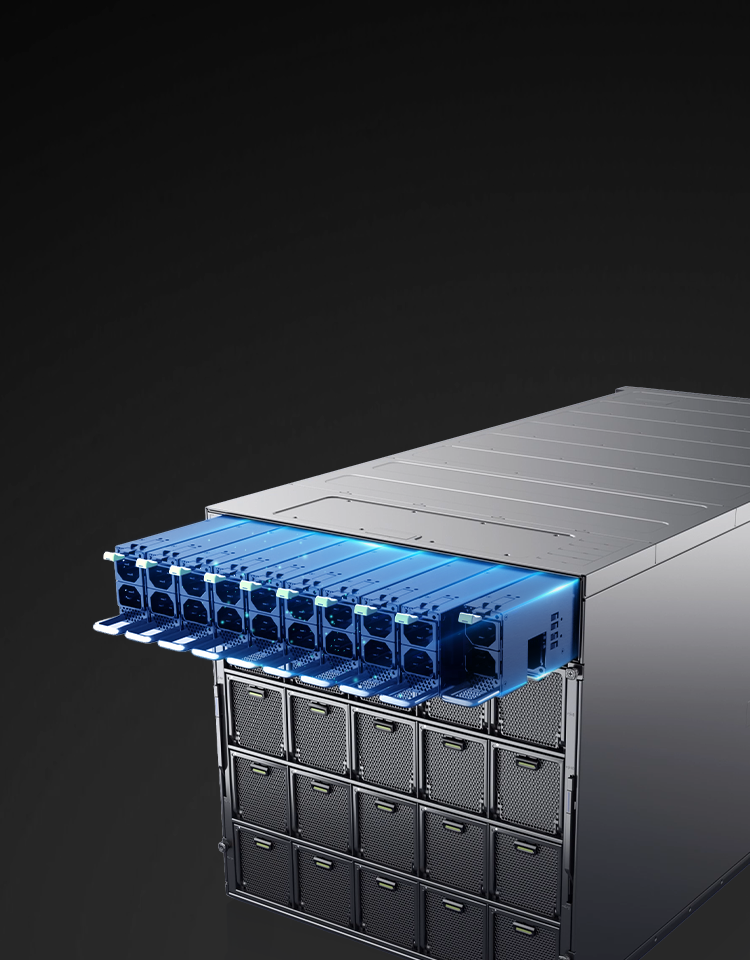

Reliable power supply
up to 8 dual-input PSUs with support for on-demand configuration and N+N/N+M redundancy
Technical Specifications
10U AI server
2 x 5th Gen AMD EPYC™ 9005 Series (Turin) processors, each with up to 500 W TDP
24 x DDR5 DIMM slots at up to 6400 MT/s
Switch-expanded: 16 x 2.5″ NVMe drives
CPU direct-connected: 8 x 2.5″ SAS/SATA/NVMe drives + 2 x 2.5″ NVMe drives
Internal: 2 x SATA/PCIe M.2 drives
RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
16 x dual-width GPUs
Flexible networking capabilities, supporting 2 x OCP 3.0 NICs
14 x PCIe expansion slots
20 x 8080 fans in N+1 redundancy
8 x 3200 W dual-input CRPS modules in N+N or N+M redundancy
Standard iBMC Management
• One dedicated GE management port for out-of-band management
• Standard interfaces: Redfish, SNMP, IPMI2.0
• Remote console: HTML5/VNC KVM
• Key features: fault diagnosis, automated O&M, hardware security hardening, monitoring, configuration, Agentless, and remote control
Optional Software Management
• FusionDirector management software
• Five advanced intelligent features
• Intelligent, automated, visual, and granular management across the entire lifecycle
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler…
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
5ºC to 35ºC (41ºF to 95ºF), compliant with ASHRAE Class A1/A2
CE, UL, CCC, VCCI, RoHS…
L-shaped guide rails and adjustable guide rails
441.7 mm x 447 mm x 900 mm (17.39 in. x 17.60 in. x 35.43 in.)
