Product Introduction

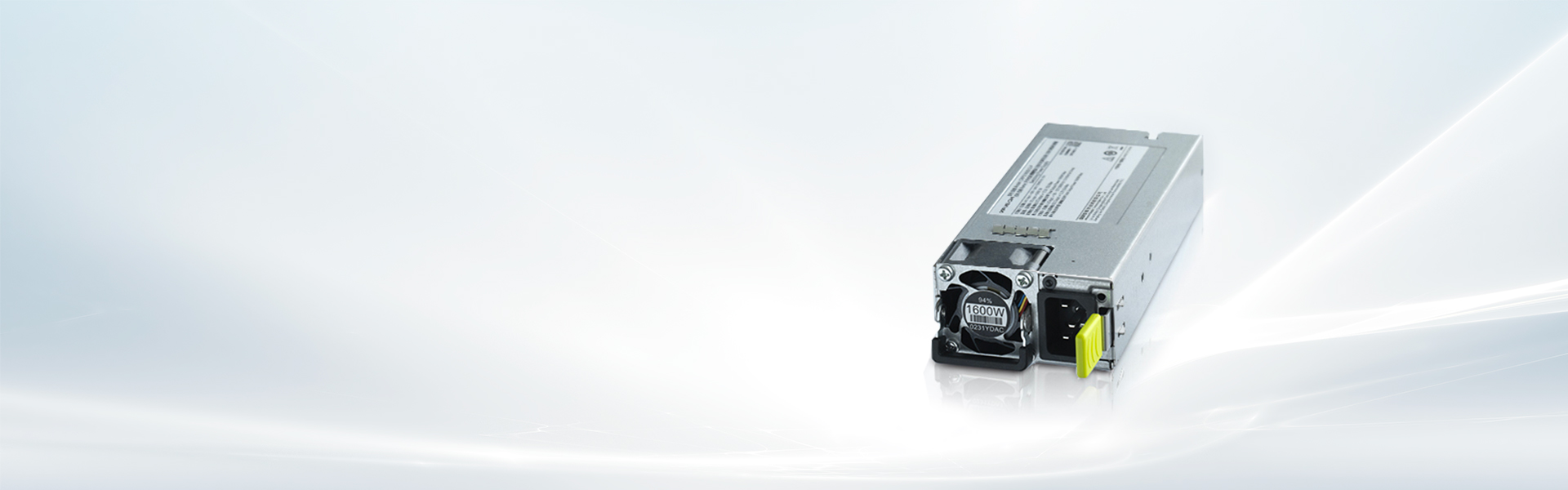

CRPS Platinum 1600 W PSU features high efficiency and reliability with redundancy operation and intelligent O&M. The PSU provides reliable and efficient power supply for data centers, enterprise servers, and similar applications.
Technical Specifications
CRPS1K6S12-P
90 to 264 V AC with dual-live-wire input
47 to 63 Hz
180 to 320 V DC and L/N reverse connection
10 A
Overvoltage, undervoltage, overcurrent, and overtemperature protection
Steady-state accuracy: 11.8 to 12.6 V; dynamic accuracy 11.6 to 12.8 V
1600 W (Vin: 180-264 V AC or 180-320 V DC)
1000 W (Vin: 90-132 V AC)
105 mVp-p
30,000 uF
100% load: 12 ms
50% load: 30 ms
50% load: 40 ms
80 Plus Platinum: > 94% at 20% load
Overvoltage, undervoltage, overcurrent, and short circuit protection
1+1/2+2/2+1 parallel redundancy operation, mixed models without failure, hot swappable, and fault isolation enabled
< 10% (10% to 20% load); 5% (≥ 20% load)
NRTL, TÜV, CB, CE, and CCC
5 years (20% time at 20% load, 80% time at 80% load)
<400 ppm
Automatic fan speed control and fan fault isolation
Operating temperature: 0°C to 55°C (32°F to 131°F)
Operating humidity: 5% to 90% (RH)
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 5% to 95% (RH)
