Product Introduction

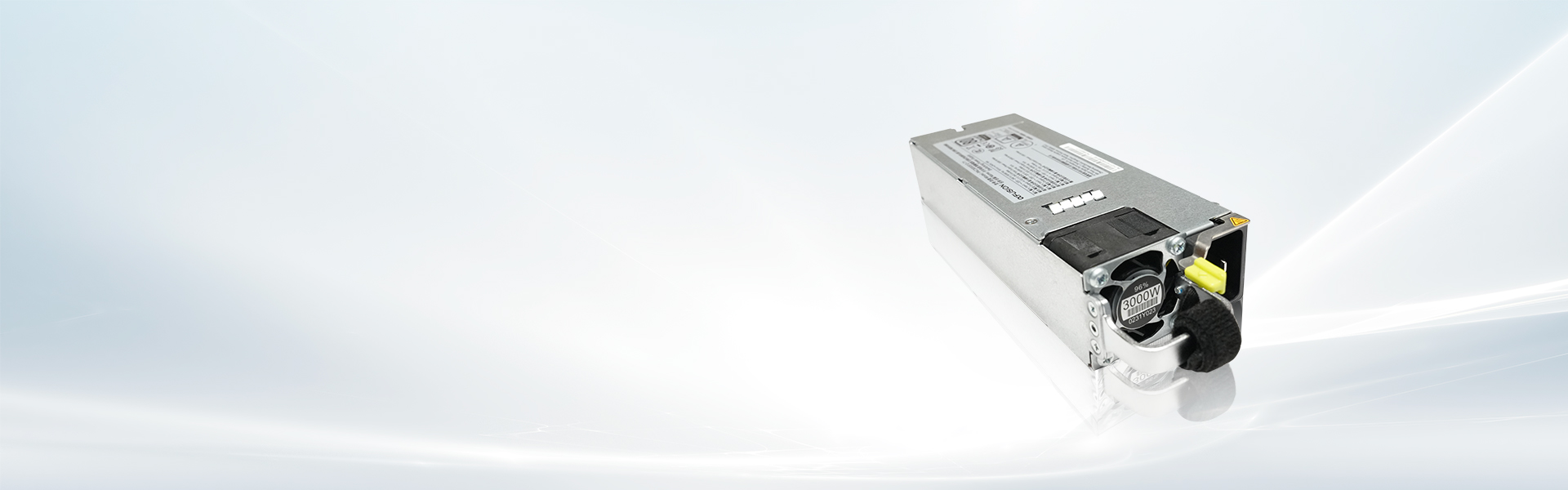

The PAC3000S12-T1 supports 90-264 V AC and 180-300 V DC input voltage ranges. This PSU provides a single output with three modes: MV12, SV12, and MV6, delivering a rated output power of 3000 W. It supports hot-swapping and current-sharing, enabling 1+1/2+2 parallel redundancy operations. Leveraging industry-leading all-digital control technology combined with patent topology, this PSU features high efficiency, high density, digitization, high reliability, and usability. It meets certification such as CE, TÜV, CCC, NRTL, and CB. It is ideal for various scenarios such as servers, storage, multi-access edge computing (MEC), and video matrix.
Product Feature
• 80 PLUS Titanium
• Titanium efficiency: 96% @ 50% load
• 1+1/2+2 parallel redundancy operation
• PMBus 1.2 with the black box
• High-precision input efficiency reporting: 3% @ 50% load
• Hot standby/cold standby/deep sleep (input power less than 1 W) and hot swapping
• Two input systems: AC and HVDC
• Three output modes: MV12, SV12, and MV6
• Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, and ORing isolation protection
• CE, TÜV, CCC, NRTL, and CB certifications
• IEC 62368-1, EN 62368-1, and GB 4943.1-2022 compliant
• RoHS compliant
Technical Specifications
183.0 mm x 68.0 mm x 40.3 mm (7.20 in. x 2.68 in. x 1.58 in.)
<2 kg (4.41 lb)
96% @ 50% load
≤1 W (deep sleep), ≤5 W (cold standby)
IP20
500,000 h
90 to 264 V AC & 180 to 300 V DC
220 V AC single-phase and 110 V AC dual-live wire
50 to 60 Hz
220 V AC: 16
≥ 0.98 @ 50% load
≤5% (230 V AC/50 Hz, 30% to 100% load)
12.3 V DC
3000 W
130% load: 10 ms
≤120 mVp-p
≤ ±5% (50% to 100%)
12 V DC: 540 to 22,000 uF
PMBus1.2
Black box, online update, and alarm reporting
Undervoltage, overvoltage, overcurrent, short circuit, and overtemperature protection
5°C to 50°C (41°F to 122°F)
–40°C to +85°C (–40°F to +185°F)
5% to 95%
IEC 62368-1, EN 62368-1, and GB 4943.1-2022
CE, TÜV, CCC, NRTL, and CB
