Product Introduction

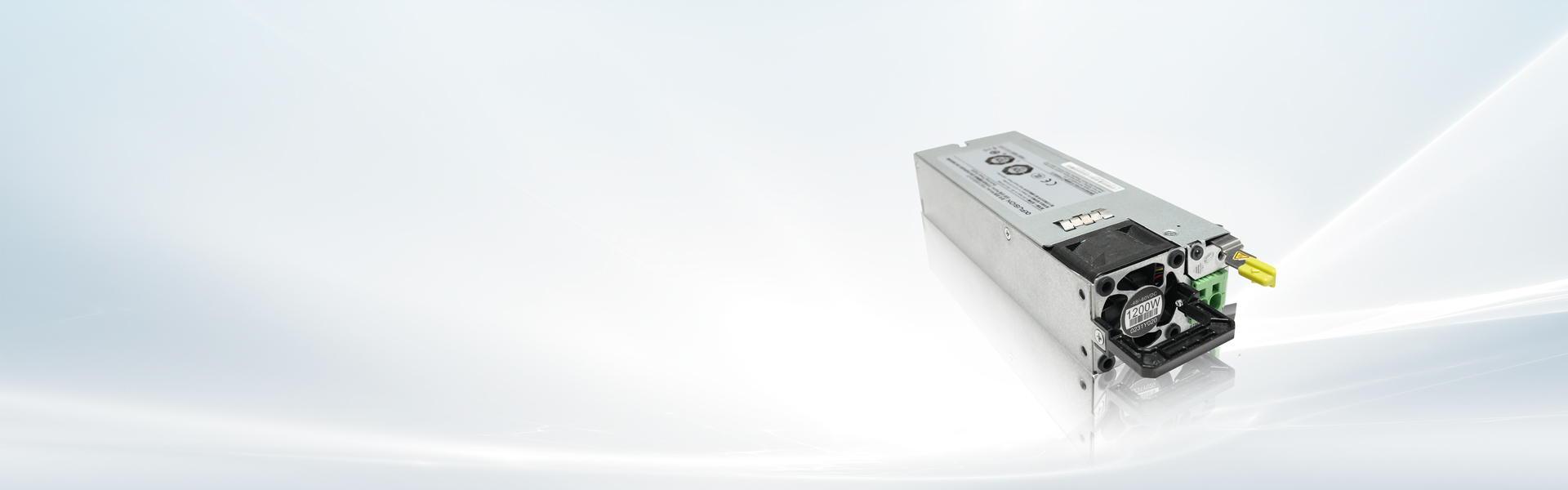

The PDC1200S12-CF supports a -38.4 to -72 V DC input voltage range. The PSU provides single output with three output modes: MV12, SV12, and MV6, delivering a rated output power of 1,200 W. It supports hot-swapping and current-sharing, enabling 1+1/2+2/3+3 parallel redundancy operations. It meets certification such as CE, TÜV, CCC, NRTL, and CB. It is ideal for various scenarios such as servers, storage, multi-access edge computing (MEC), and video matrix.
Product Feature
• Efficiency: 92.5% @ 50% load
• 1+1/2+2/3+3 parallel redundancy operation
• PMBus 1.2 with the black box
• High-precision input efficiency reporting: 3% @ 50% load
• Hot standby/cold standby/deep sleep (input power less than 1 W) and hot swapping
• Input system: -48 V DC
• Three output modes: MV12, SV12, and MV6
• Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, and ORing isolation protection
• CE, TÜV, CCC, NRTL, and CB certifications
• IEC 62368-1, EN 62368-1, and GB 4943.1-2022 compliant
• RoHS compliant
Technical Specifications
183.0 mm x 68.0 mm x 40.3 mm (7.20 in. x 2.68 in. x 1.58 in.)
<2 kg (4.41 lb)
92.5% @ 50% load
25 W
IP20
500,000 h
–38.4 to +72 V DC
38.4 V DC: 40
11.97 to 12.6 V DC
1,200 W
≤120 mVp-p
≤ ±5% (50% to 100%)
12 V DC: 540 to 22,000 uF
PMBus1.2
Black box, online update, and alarm reporting
Undervoltage, overvoltage, overcurrent, short circuit, and overtemperature protection
5°C to 50°C (41°F to 122°F)
–40°C to +85°C (–40°F to +185°F)
5% to 95%
IEC 62368-1, EN 62368-1, and GB 4943.1-2022
CE, TÜV, CCC, NRTL, and CB
