Product Introduction

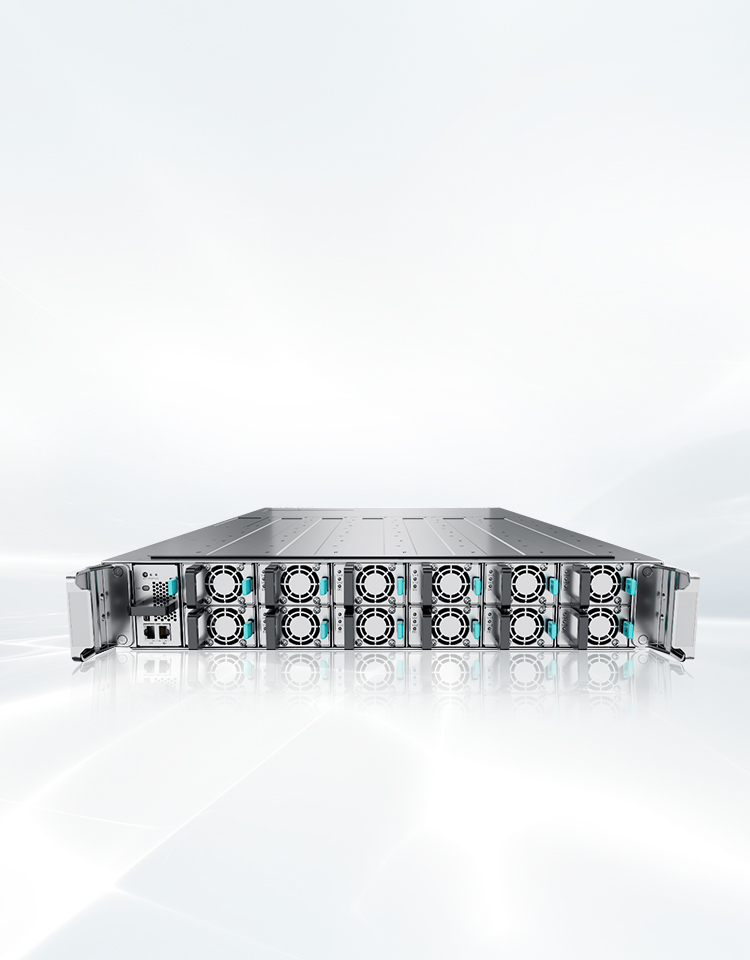

FusionWatt PS260 is a new-generation power system with high power density designed for AI data centers. In a compact 2RU form factor, it supports up to 12pcs 5500W power supply unit, delivering a maximum power capacity of 66kW per shelf and scalable up to 264 kW. The system features N+M redundancy for flexible scalability, and delivers 54 V DC output with a blind-mating design for easy installation and maintenance.
With integrated power management, leakage detection, system asset management, network management, and PDU management, FusionWatt PS260 is an ideal centralized power solution for rack-scale liquid-cooled servers.
Technical Specifications
FusionWatt PS260
4 inputs with 2+2 redundancy
12 x C14 sockets
AC: three phases, five wires, 380 V to 415 V AC, and 47 Hz to 63 Hz
HVDC: 190 V to 400 V DC
54 V DC, 66 kW
12pcs 5500 W
Hot-swappable PSUs in N+M redundancy
System monitoring and management, supporting online PSU upgrade and status/asset information retrieval
1 x RJ45 (current sharing bus+sync+IPMB), 1 x float leakage sensor interface, and 2 x photoelectric leakage sensor interfaces
86.7 mm (2U) x 537 mm x 900 mm (3.41 in. × 21.14 in. × 35.43 in.)
51 kg (112.44 lb)
