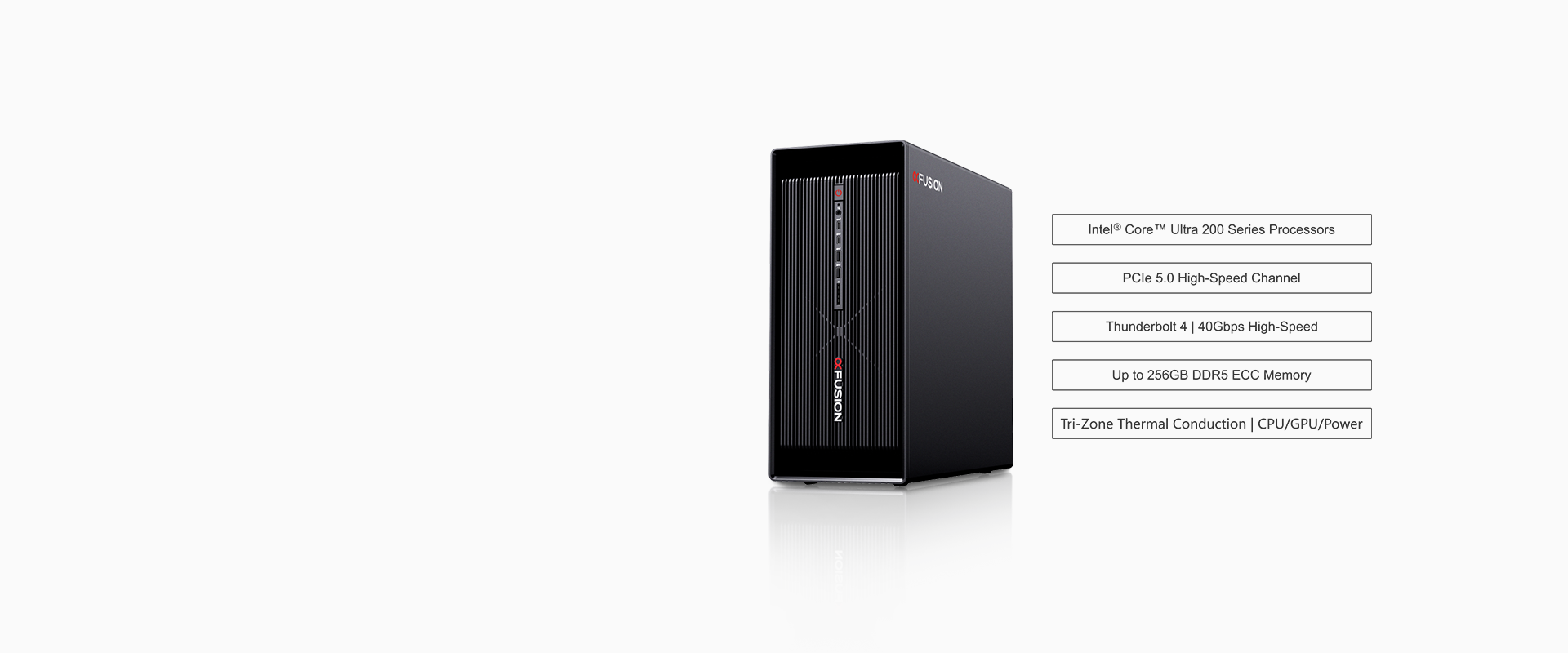

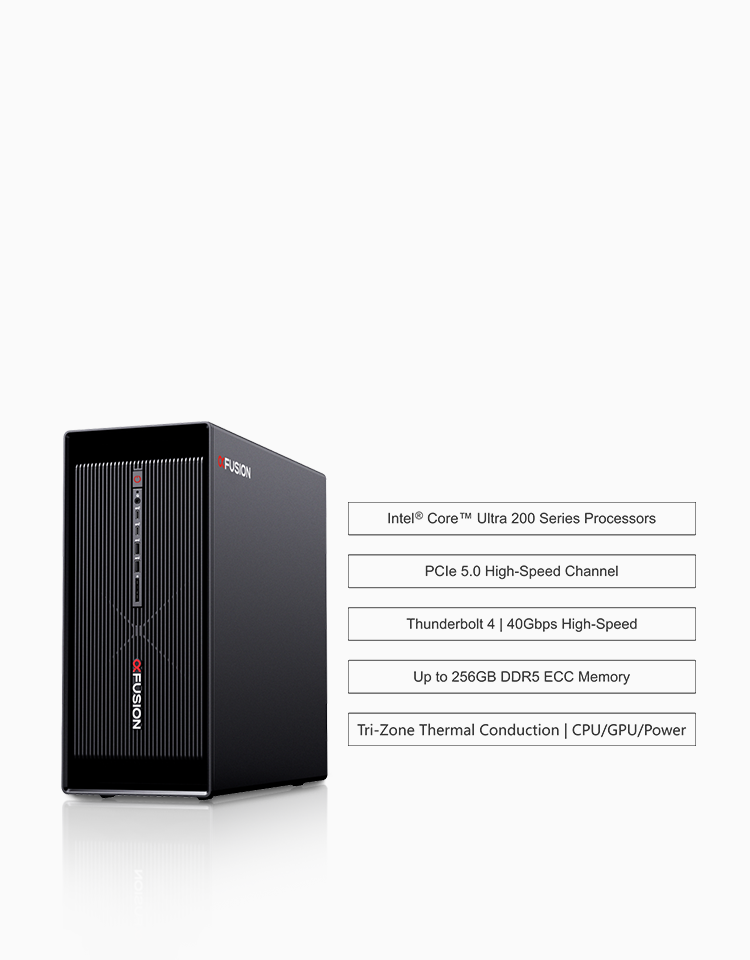

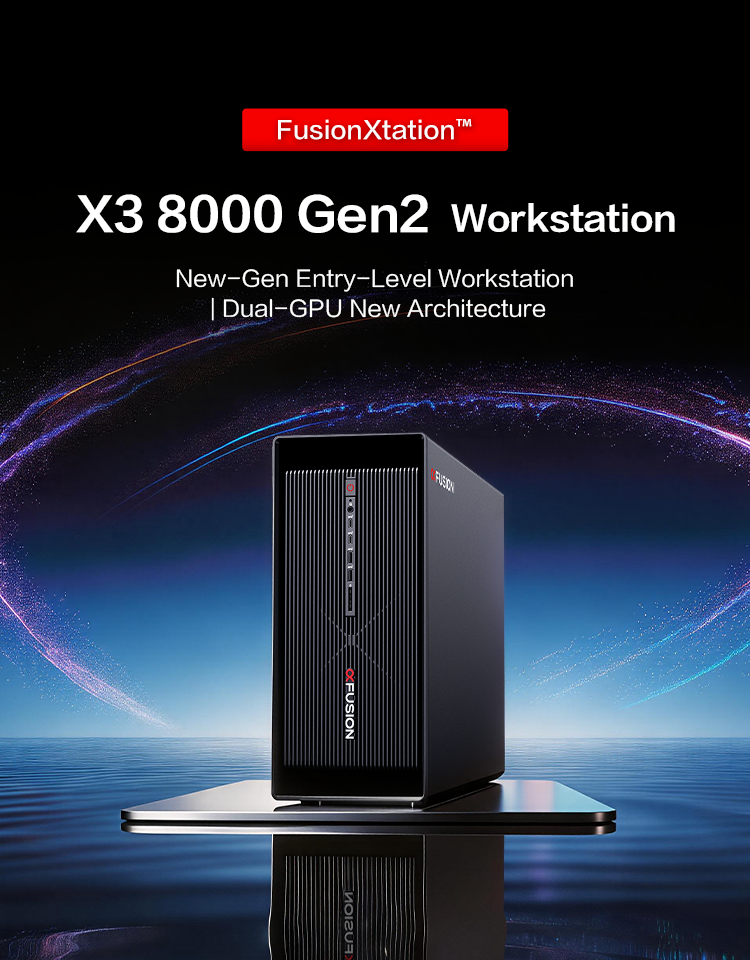

FusionXtation™ X3 Gen2
Workstation
FusionXtation™ X3 Gen2

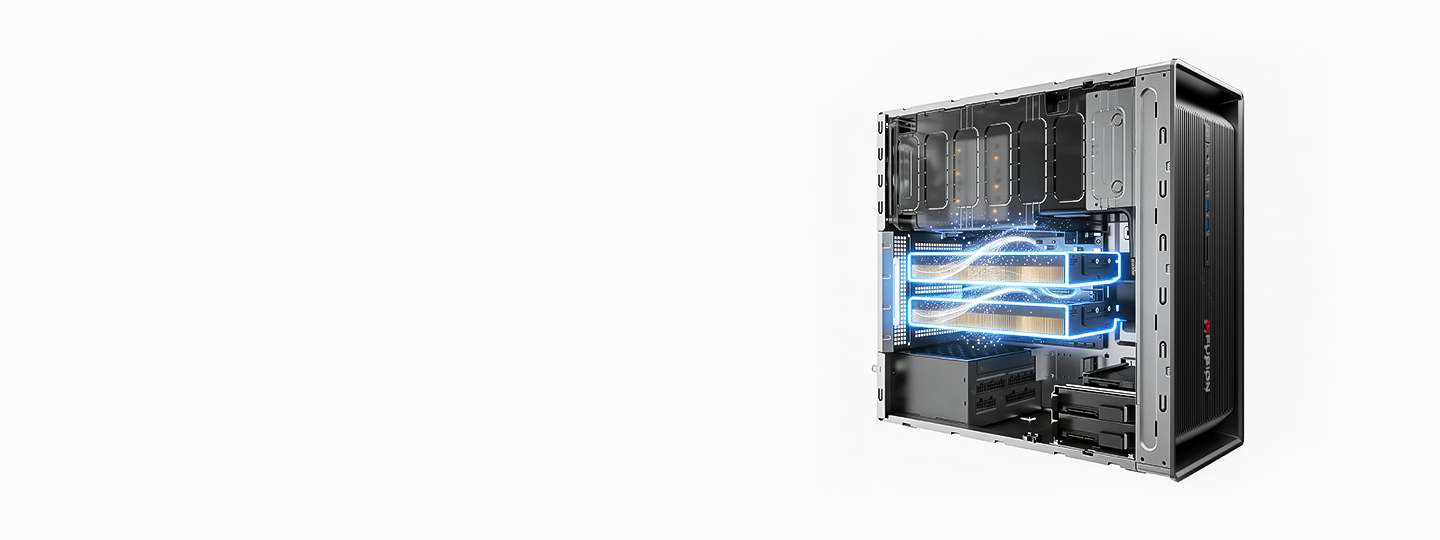

Pro-Grade • AI Computing Power
144G VRAM | Local Inference for 200B Large Models

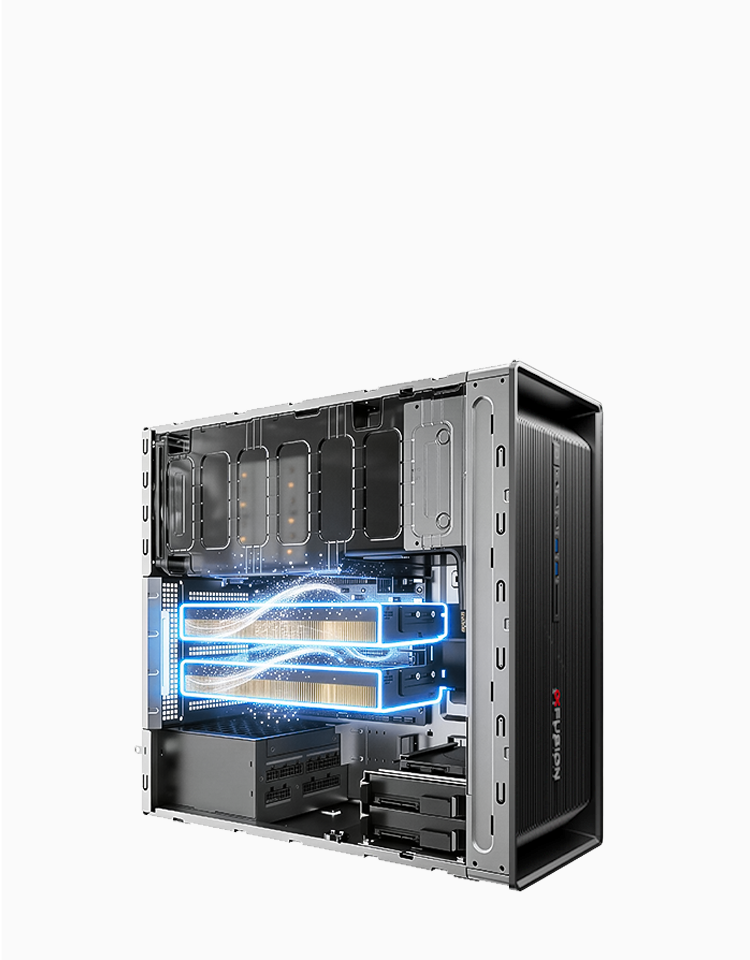

PCIe 5.0 Adaptive Channels | Dual-GPU Deployment
4th-Gen PCIe Compatible | Visualization Upgrade

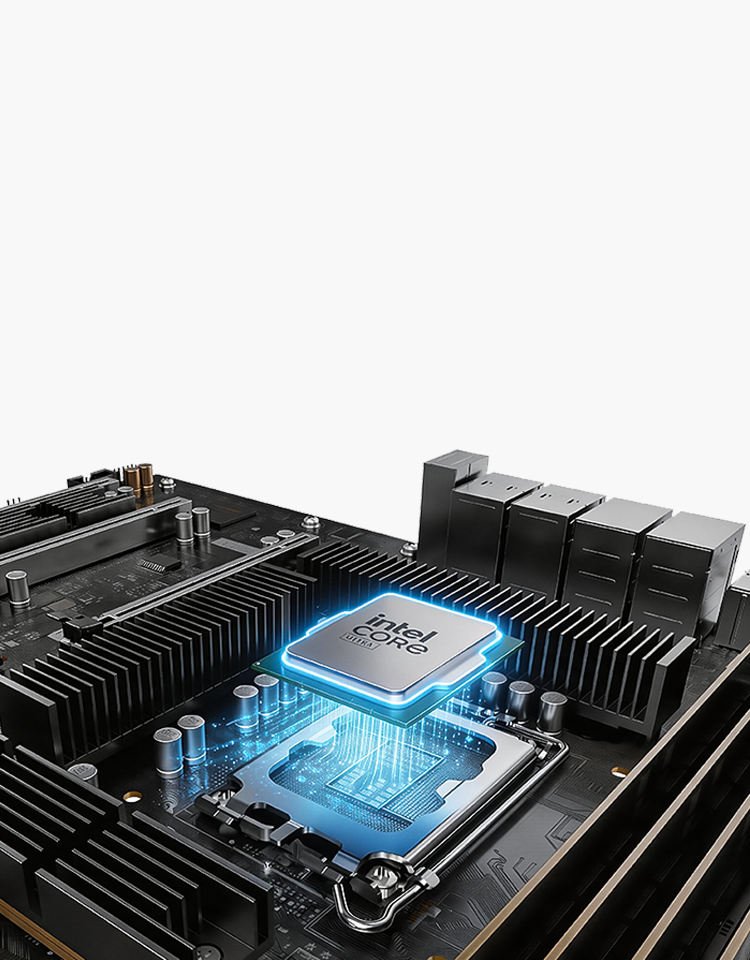

Superior Performance

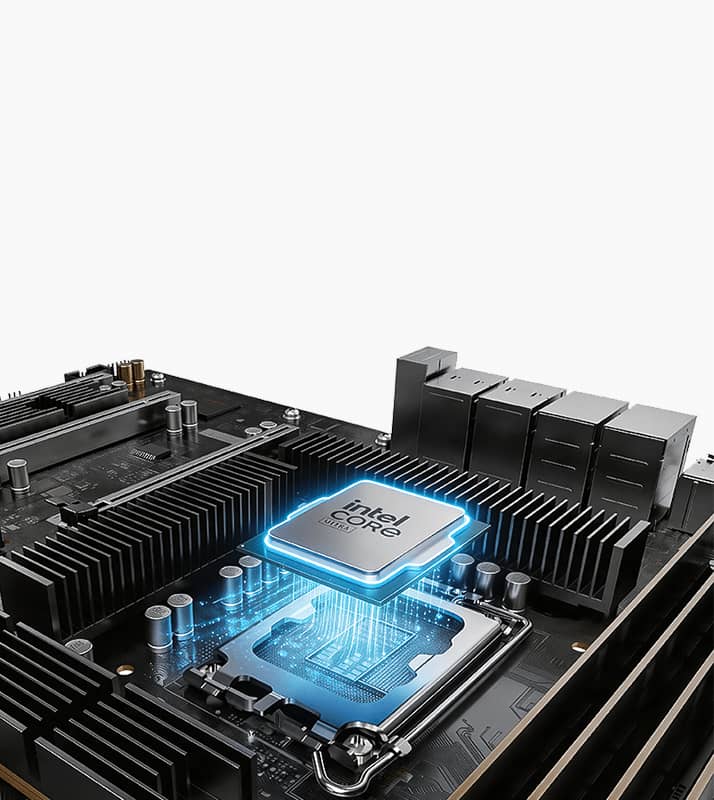

Intel® Core™ Ultra 200 Processor | Extended Boost 235W
Full-Spec Professional Graphics Card Compatibility
Single Card 600W / Dual Cards 300W
Rich Data Communication
PCIe 5.0x16 Fully Compatible Graphics Card
2×2.5GE Ports + USB3.2 Multi-Device Collaboration
DP+HDMI Dual Video Ports for AI Terminal Interconnection

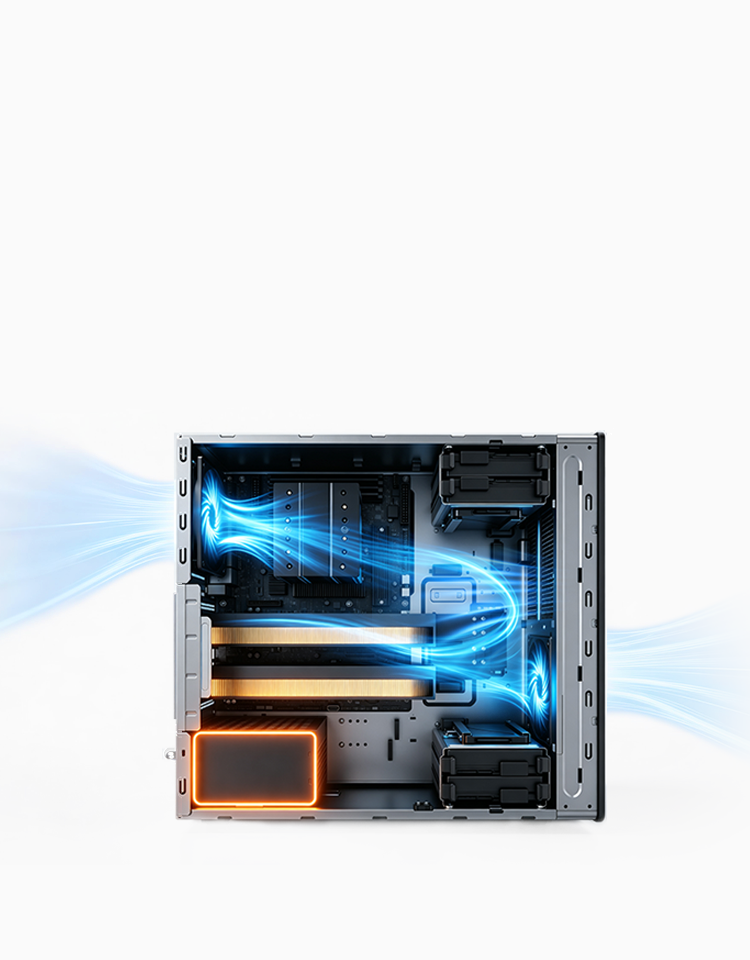

Rock-Solid Reliability

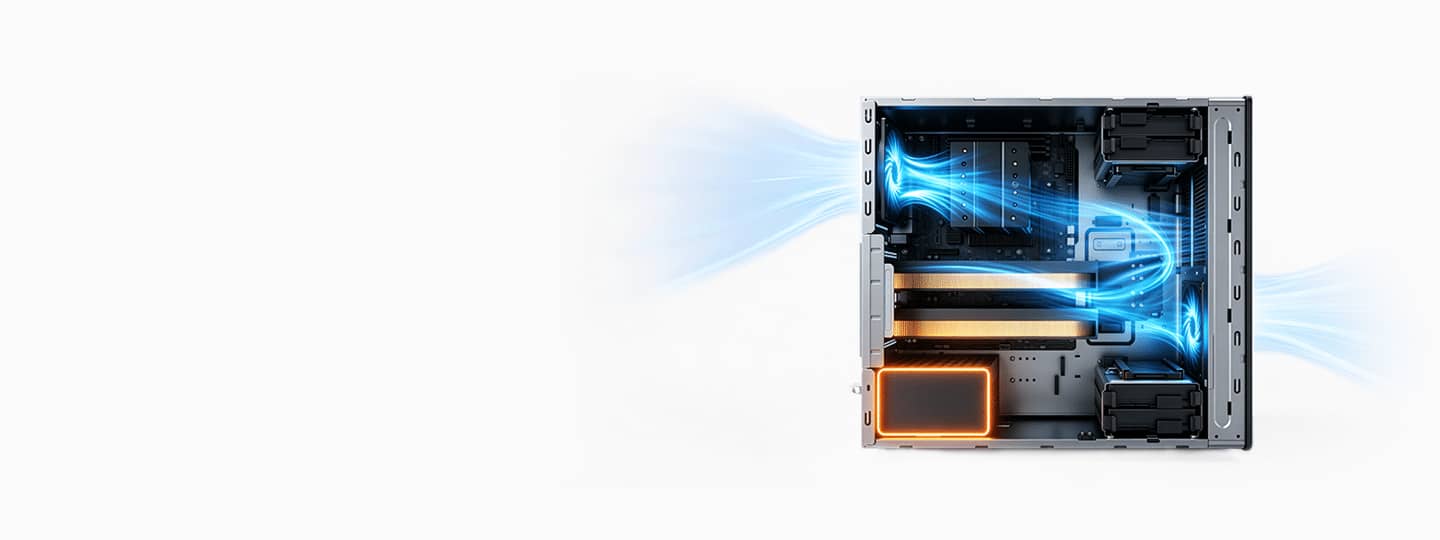

Tri-Zone Air Duct • Precision Temperature Control
DDR5 ECC • Fault Prevention
TPM Chip • Data Encryption
1200W Platinum Power Supply • Stable Power & Cost Reduction
BMC • Remote Monitoring & Early Warning

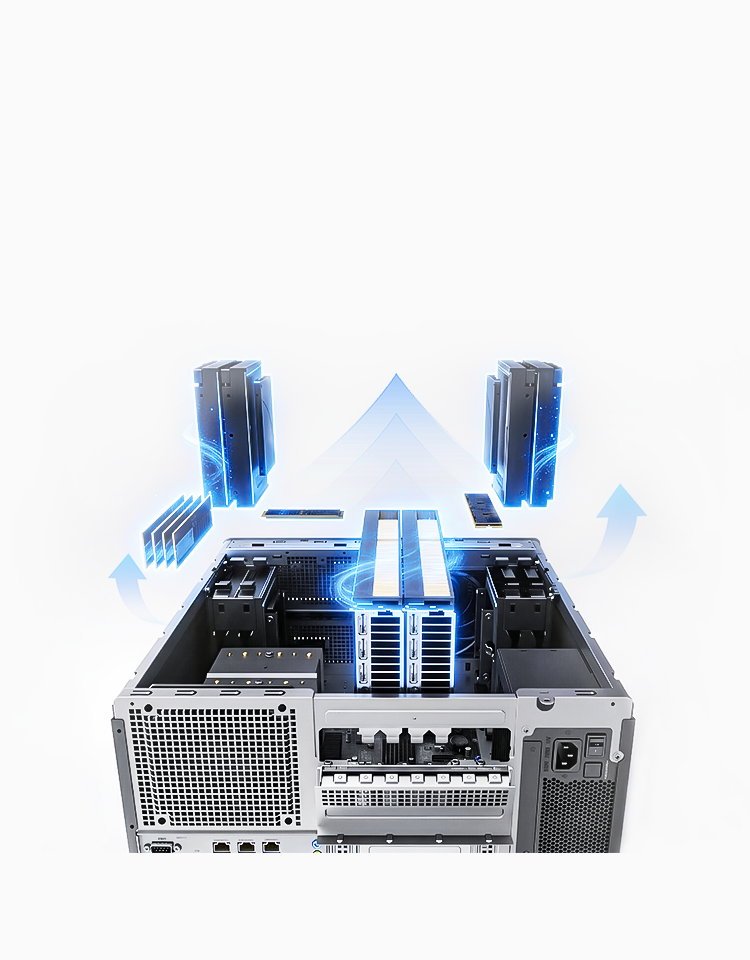

Scalable Flexibility

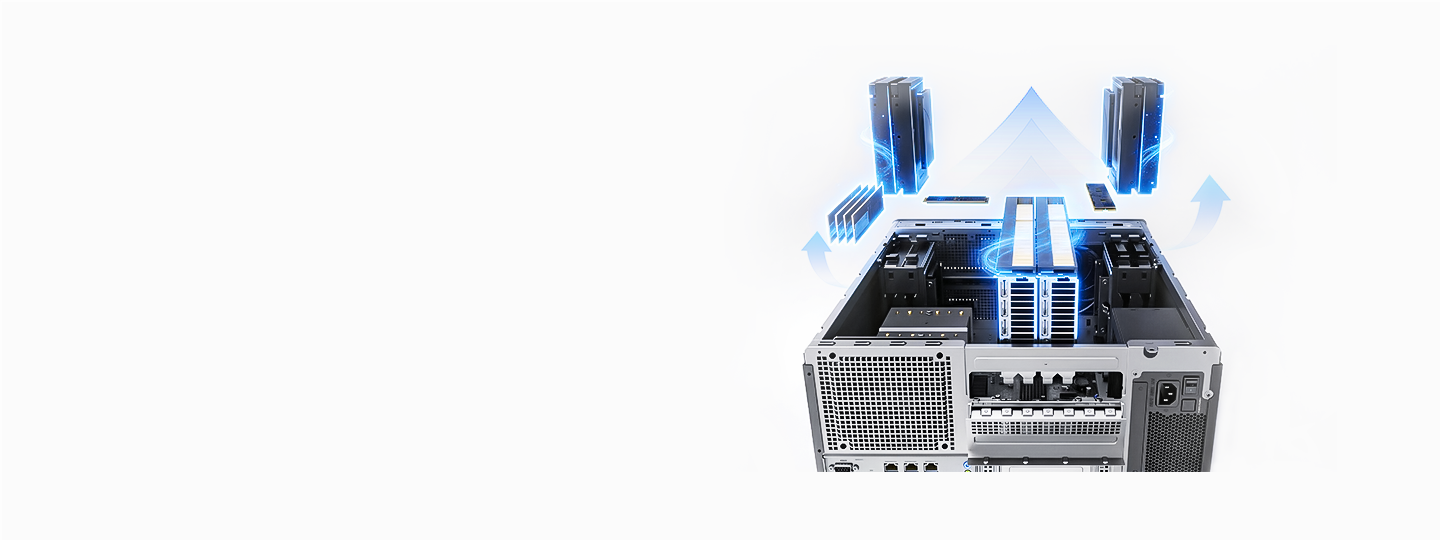

4 PCIe + 8 Hard Drives + 4 Memory Slots
Full-Dimensional Hardware Expansion
*：Technical specifications available for download via related resources.
Note：Services marked with an asterisk (*) are available for an additional fee
Technical Specifications
Tower,32L
Intel W880
Intel® CoreTM Ultra 5 Processor 225 (22 MB cache, 10 cores, 10 threads, up to 4.9 GHz, 65 W)
Intel® CoreTM Ultra 5 Processor 235 (26 MB cache, 14 cores, 14 threads, up to 5.0 GHz, 65 W)
Intel® CoreTM Ultra 5 Processor 245 (26 MB cache, 14 cores, 14 threads, up to 5.1 GHz, 65 W)
Intel® CoreTM Ultra 5 Processor 245K (26 MB cache, 14 cores, 14 threads, up to 5.2 GHz, 125 W)
Intel® CoreTM Ultra 5 Processor 250K Plus (30 MB cache, 18 cores, 18 threads, up to 5.3 GHz, 125 W)
Intel® CoreTM Ultra 7 Processor 265 (36 MB cache, 20 cores, 20 threads, up to 5.3 GHz, 65 W)
Intel® CoreTM Ultra 7 Processor 265K (36 MB cache, 20 cores, 20 threads, up to 5.5 GHz, 125 W)
Intel® CoreTM Ultra 9 Processor 270K Plus (40 MB cache, 24 cores, 24 threads, up to 5.5 GHz, 125 W)
Intel® CoreTM Ultra 9 Processor 285 (40 MB cache, 24 cores, 24 threads, up to 5.6 GHz, 65 W)
Intel® CoreTM Ultra 9 Processor 285K (40 MB cache, 24 cores, 24 threads, up to 5.7 GHz, 125 W)
Remote management, hardware monitoring, and out-of-band management
Up to 256 GB (4 x 64 GB) DDR5 CUDIMM/UDIMM memory, supporting both ECC and non-ECC
16 GB: 1R x 8 DDR5, 5600 MT/s, non-ECC
32 GB: 2R x 8 DDR5, 5600 MT/s, non-ECC
64 GB: 2R x 8 DDR5, 6400 MT/s, non-ECC
32 GB: 2R x 8 DDR5, 5600 MT/s, ECC
Up to 4 x 3.5″ + 2 x 2.5″ SATA HDDs/SSDs
2 TB, 3.5″, 5400 RPM, SATA, HDD
4 TB, 3.5″, 7200 RPM, enterprise HDD
12 TB, 3.5″, 7200 RPM, enterprise HDD
NVME M.2 SSDs (PCIe 4.0 x4 supported)
256 GB, M.2 2280, PCIe NVMe Gen4 x 4, SSD
512 GB, M.2 2280, PCIe NVMe Gen4 x 4, SSD
1 TB, M.2 2280, PCIe NVMe Gen4 x 4, SSD
1 x PCIe 5.0 x (auto-switching to PCIe 5.0 x 8)
1 x PCIe 4.0 x 16 (auto-switching to PCIe 4.0 x 8 if the first slot runs at x 16)
1 x PCIe 5.0 x 4
1 x PCIe 4.0 x 4 ( x 16 slot)
360 W internal PSU (80 PLUS Gold certified)
600 W internal PSU (80 PLUS Platinum certified)
750 W internal PSU (80 PLUS Platinum certified)
1250 W internal PSU (80 PLUS Platinum certified
TPM (optional)
Front panel:
2 x USB 3.2 Gen 2 (10 Gbit/s) Type-C ports
2 x USB 3.2 Gen 1 (5 Gbit/s) ports
1 x universal audio port
1 x front 3-in-1 media card reader (USB 2.0)

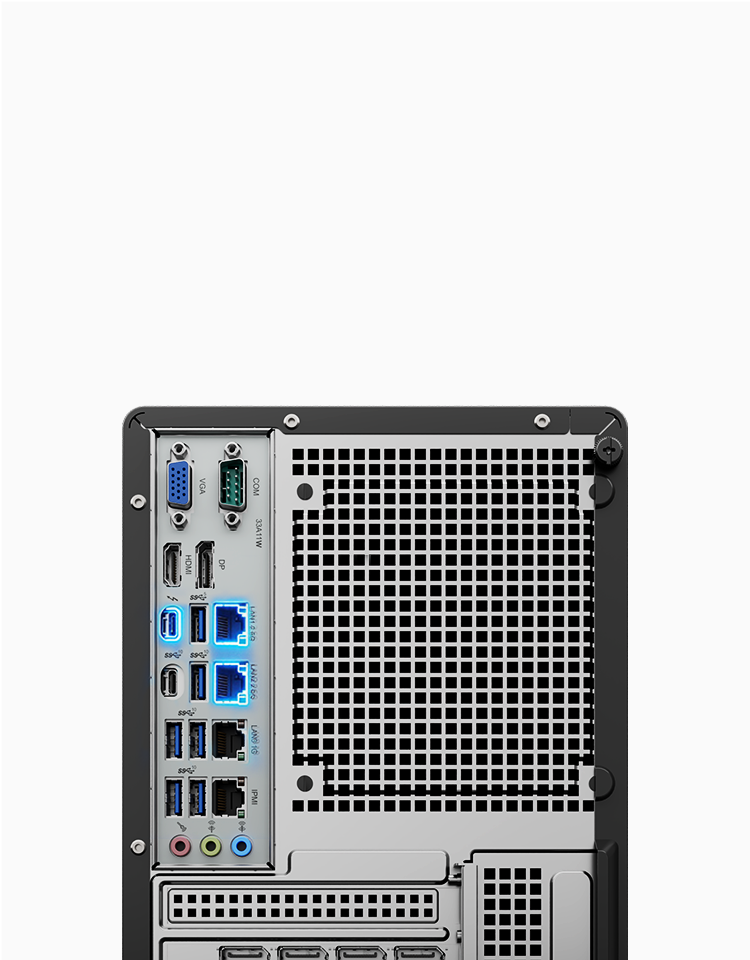

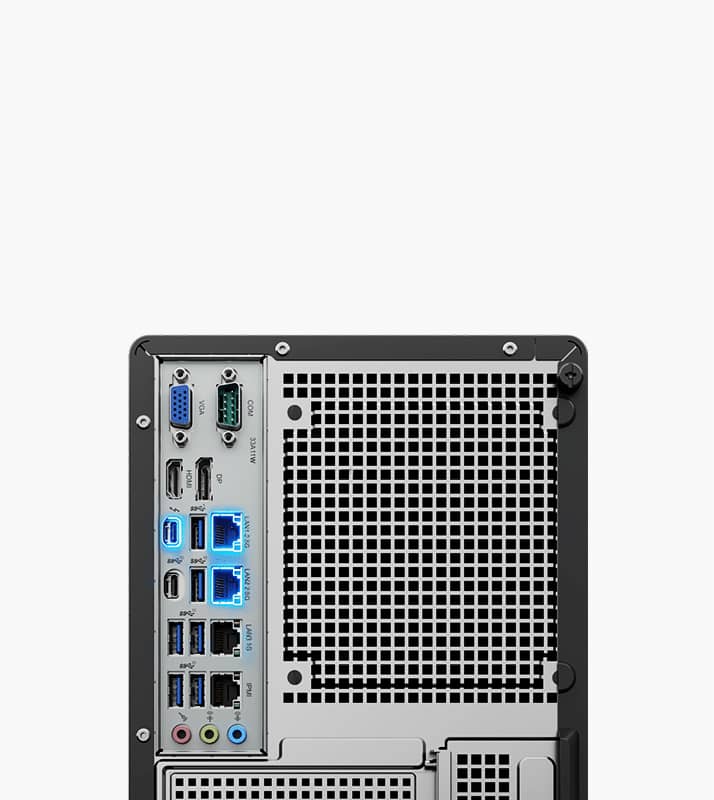

Rear panel:
1 x Thunderbolt port
1 x USB 3.2 Gen 2 (10 Gbit/s) Type-C port
5 x USB 3.2 Gen 2 (10 Gbit/s) ports
1 x USB 3.2 Gen 1 (5 Gbit/s) port
1 x DisplayPort 1.4 port
1 x HDMI 2.0 port
1 x VGA port
1 x COM port
1 x RJ45（1GE）
1 x RJ45 (1GE) IPMI dedicated management port (optional for BMC version)
2 x RJ45 (2.5GE) ports, supporting network wake-up
1 x audio input port (3.5 mm; 0.14 in.)
1 x audio output port (3.5 mm; 0.14 in.)
1 x microphone input port (3.5 mm; 0.14 in.)
435 mm x 182 mm x 419 mm (17.13 in. x 7.17 in. x 16.50 in.)

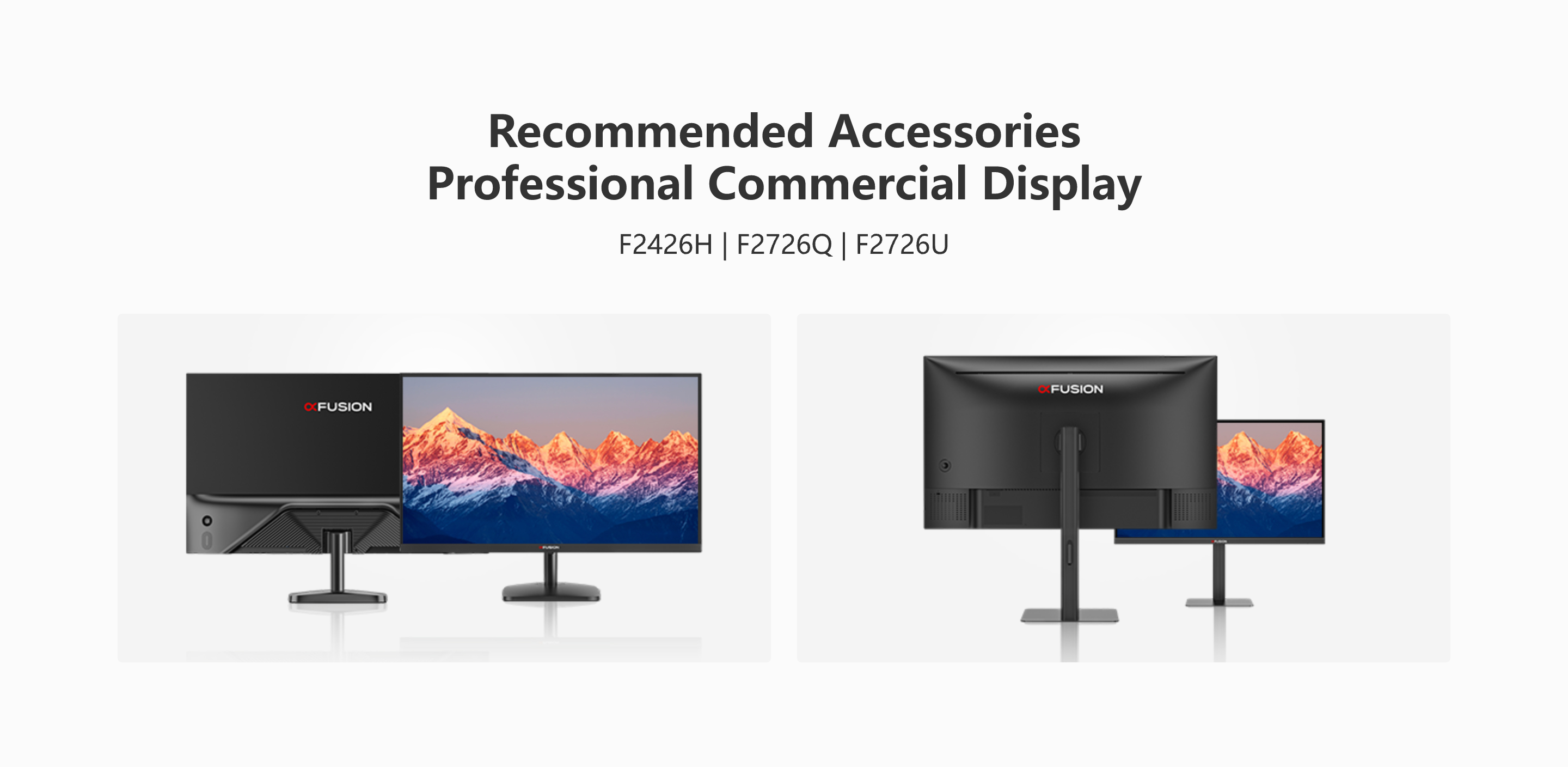

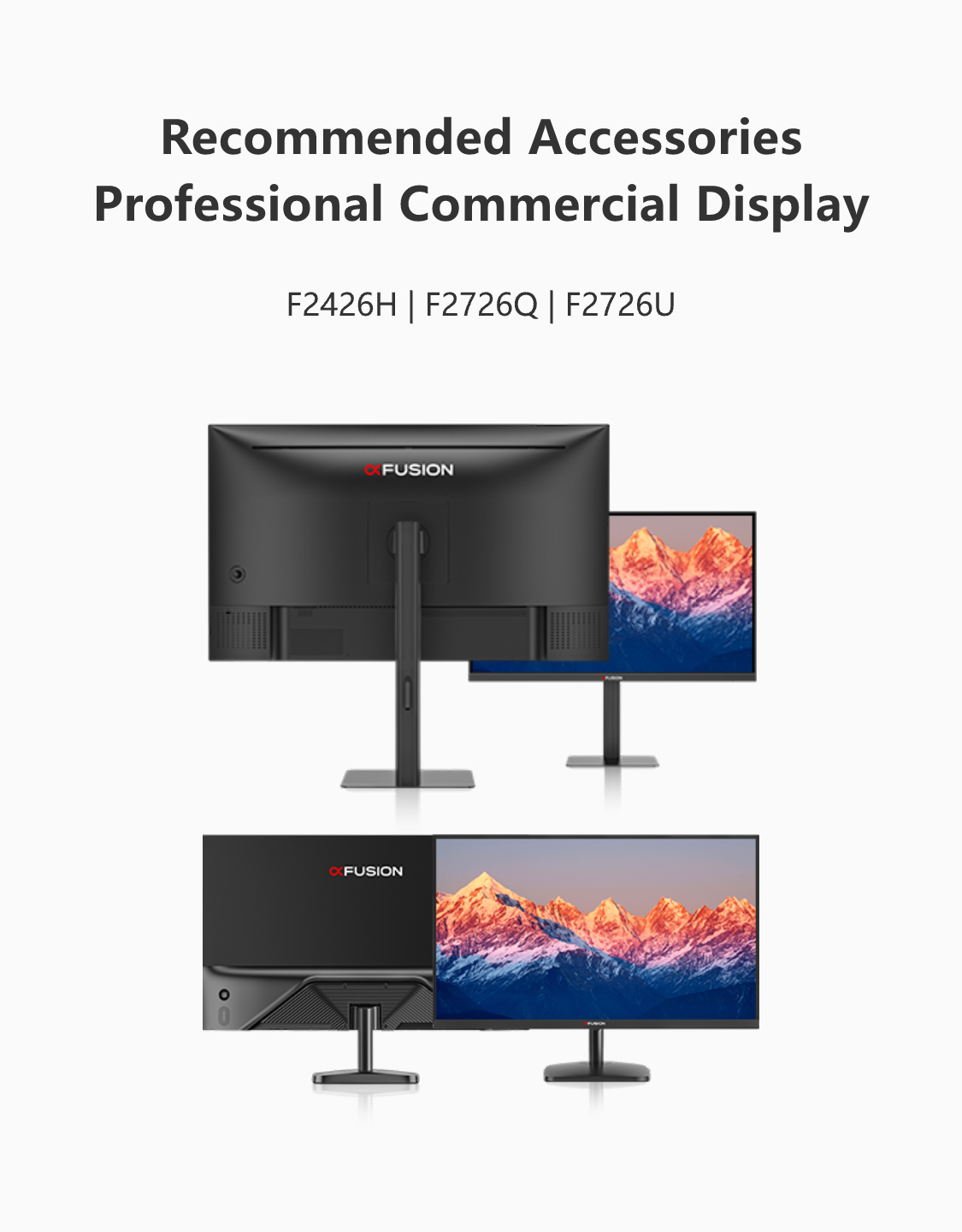

Displays
• F2426H(23.8in/1080P/100Hz)
• F2726Q(27in/2K/100Hz)
• F2726U(27in/4K/60Hz)
3-years Warranty：
Enable upgrade to 5 years of premium maintenance service.
24×7 Remote Technical Support
24×7 Remote Technical Support
Defective Material Retention Service
* Note：Services marked with an asterisk (*) are available for an additional fee
Disclaimer: This document is for reference only. Product specifications, configurations and parameters are subject to change without prior notice due to technical upgrades or supply chain adjustments. For the latest detailed configurations, please consult xFusion sales representatives or visit the official website. Performance data is obtained under specific test environments; actual performance may vary depending on application scenarios.
