FusionServer G8600 V7 GPU Server
  • Home
  • FusionServer V7
  • FusionServer G8600 V7 GPU Server
    Flagship Computing Power

    Flagship Computing Power

    Unmatched Energy Efficiency

    Unmatched Energy Efficiency

    Optimal Reliability

    Optimal Reliability

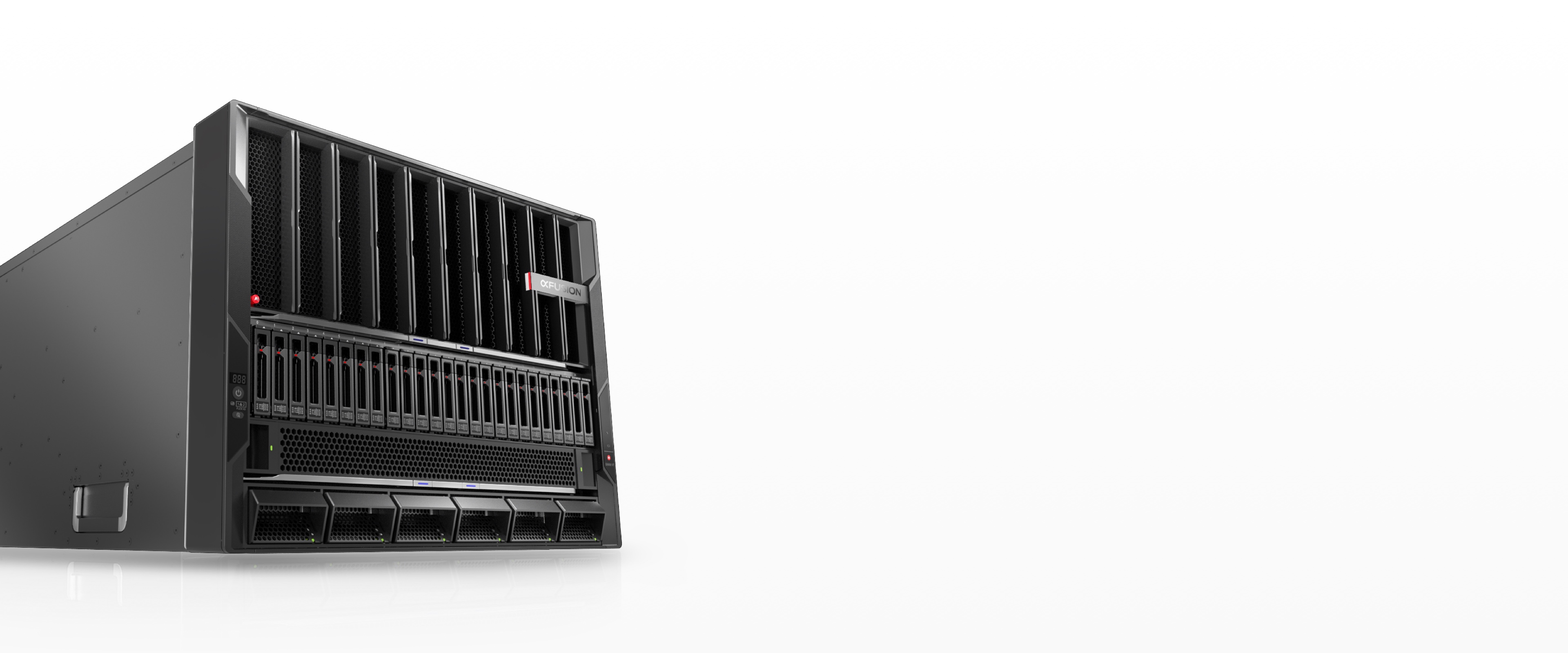

    G8600 V7, New-Generation Flagship GPU Server

    New-Generation Flagship GPU Server

    Main application scenarios:

    Training

    HPC

    Data analysis

    • FusionServer G8600 V7 (G8600 V7) is a new-generation flagship GPU server. It supports 8 x GPU modules, 12 x standard PCIe cards, and 1 x OCP NICs, and provides ultra-large capacity or ultra-fast storage through 25 x 2.5" drives and 8 x NVMe SSDs.
    • Featuring flagship computing power, ultimate energy efficiency and reliability, and easy O&M, it is used for high-performance scenarios such as training, scientific computing, and image and data analysis.

    Flagship Computing Power

    Superior Performance

    8 x GPU modules with the industry's leading computing power

    G8600 V7, Superior Performance

    Superior Flexibility

    Flexible topology: compatible with NVIDIA's high-performance and balanced topologies
    Leading architecture design: Retimer-free PCIe 5.0 devices and cable-free chassis

    G8600 V7, Superior Flexibility

    Unmatched Energy Efficiency

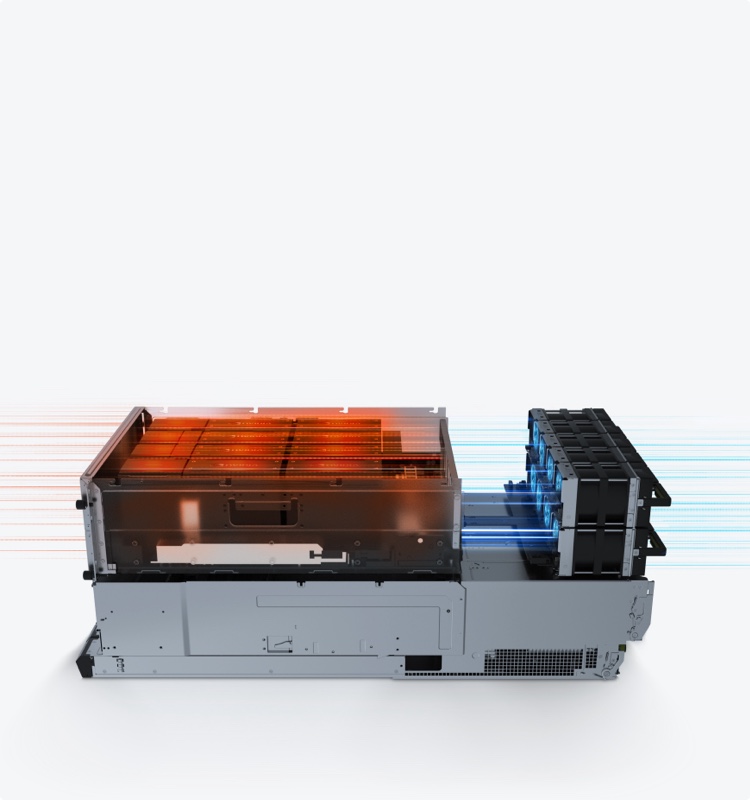

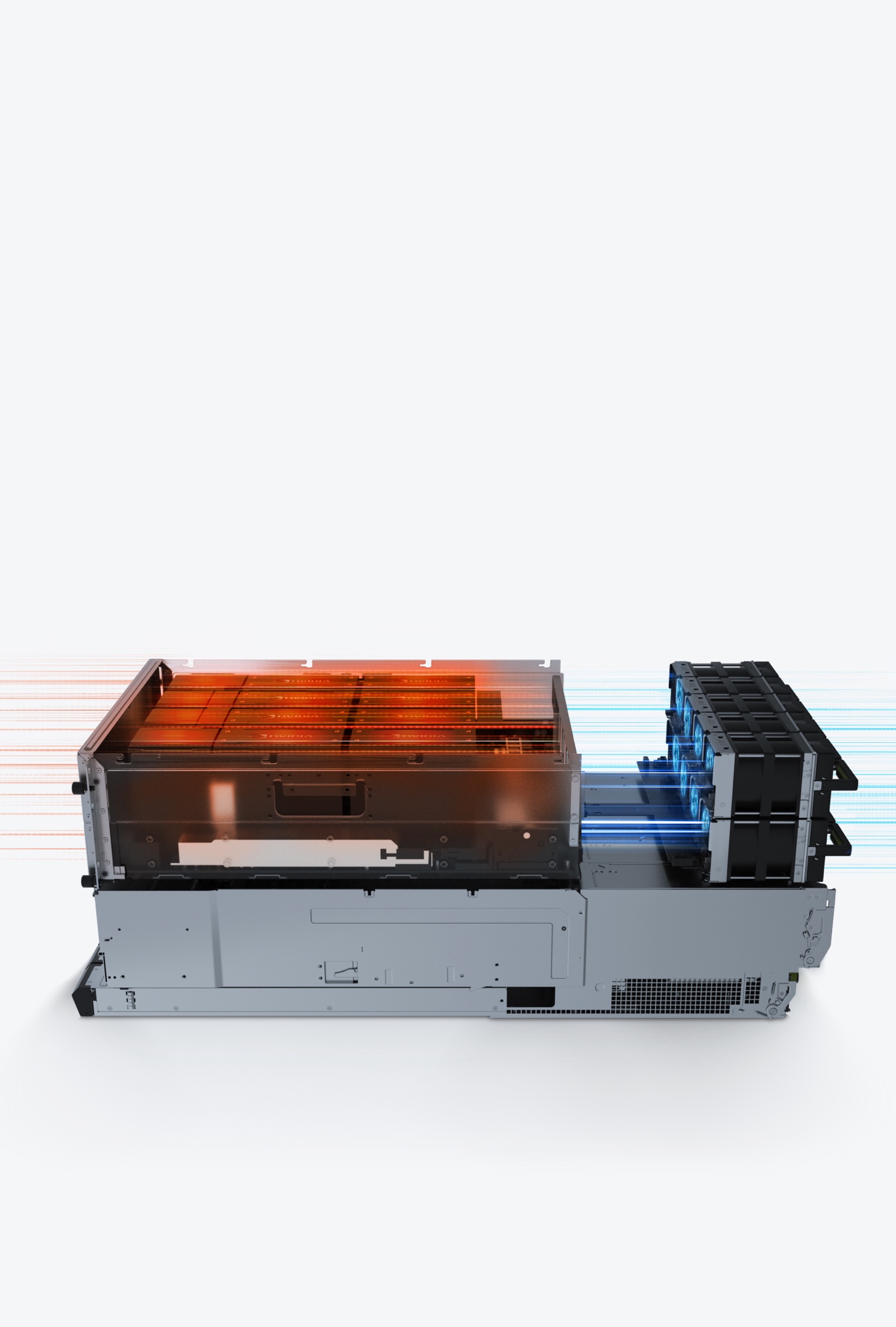

    G8600 V7, Highly-efficient Heat Dissipation

    Highly-efficient Heat Dissipation

    Unique MPC algorithm combined with GPUs reduces fan power consumption by 1.1%
    xFusion 8080++ fans improve heat dissipation capability by 20% to 30% and energy efficiency by 16%

    Highly-efficient Power Supply

    xFusion-developed Titanium PSUs have high energy efficiency, saving up to 200 W per server

    Separation of Different PSUs

    54 V PSUs are separated from 12 V PSUs, eliminating the power conversion process, saving up to 76 W per server

    Optimal Reliability

    G8600 V7, Highly-reliable Power Supply Architecture

    Highly-reliable Power Supply Architecture

    Dual-bus 54 V PSUs, with fewer PSUs and more redundancy

    G8600 V7, Modular and Easy O&M

    Modular and Easy O&M

    Module replacement without removing the server from the cabinet,
    reducing maintenance time by 2.5 times

    G8600 V7, Fan and PSU Redundancy

    Fan and PSU Redundancy

    Fans in N+1 redundancy
    PSUs in N+N redundancy (54 V)
    PSUs in 1+1 redundancy (12 V)

    Technical Specifications

    Form Factor

    8U GPU server

    Processor

    2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids), up to 350 W TDP per processor

    Chipset

    Emmitsburg PCH

    Memory

    32 x DIMMs, up to 128 GB per DIMM, up to 4800 MT/s

    Local Storage

    Hot-swappable drive configurations:
    • Up to 25 x 2.5″ SAS/SATA drives
    • Up to 8 x NVMe SSDs
    • 2 x M.2 SSDs

    RAID

    RAID 0, 1, 10, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;
    RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

    GPU Module

    8 x GPU modules

    Network

    1 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap

    PCIe Expansion

    Up to 22 x PCIe slots, including 20 x standard PCIe slots, 1 x OCP 3.0 slots, and 1 x built-in RAID controller card slot

    Fan Module

    GPU: 10 x 54 V fan modules in N+1 redundancy; CPU: 5 x 12 V fan modules in N+N redundancy

    PSU

    54 V PSUs
    Up to 6 x hot-swappable PSUs in N+1 redundancy:
    • 3000 W AC Titanium PSUs
    1500 W (input: 100 V AC to 180 V AC)
    2500 W (input: 180 V AC to 200 V AC)
    3000 W (input: 200 V AC to 264 V AC)
    12 V PSUs
    2 x hot-swappable PSUs in N+N redundancy:
    • 3000 W AC Titanium PSUs
    2500 W (input: 200 V AC to 220 V AC)
    2900 W (input: 220 V AC to 230 V AC)
    3000 W (input: 230 V AC to 240 V AC)

    Management

    The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
    • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
    • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

    OS

    Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and others

    Security

    Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and secure boot

    Operating Temperature

    5°C to 35°C (41°F to 95°F)

    Certification

    CQC, CE, and RoHS

    Installation Suite

    L-shaped guide rails

    Dimensions (H x W x D)

    356 mm x 447 mm x 898 mm (14.02 in. x 17.60 in. x 35.35 in.)

    *According to the plan, it will be realized within 2023.
