Exceptional Computing
Outstanding Security
Optimal Energy Efficiency
Next-Gen 1U2P Rack Server
Major application scenarios:
Virtualization
HPC
OA

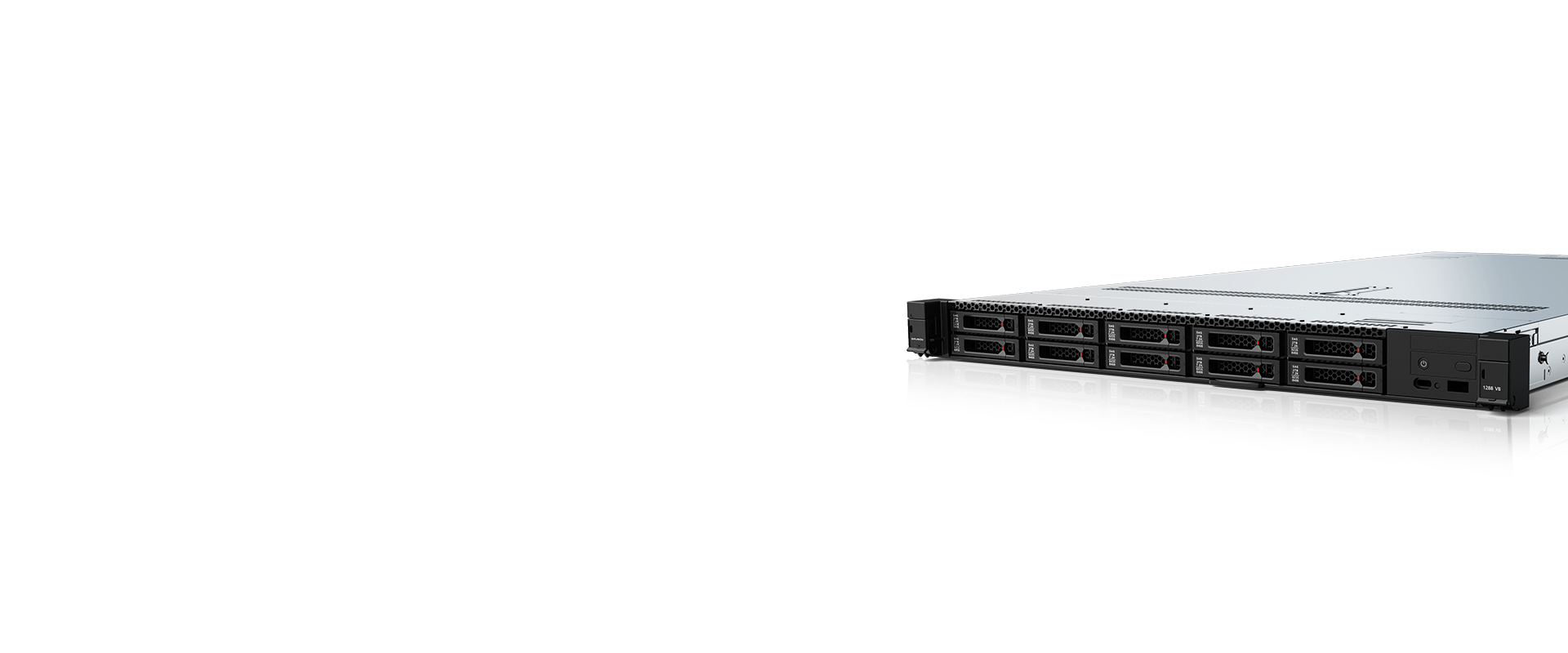

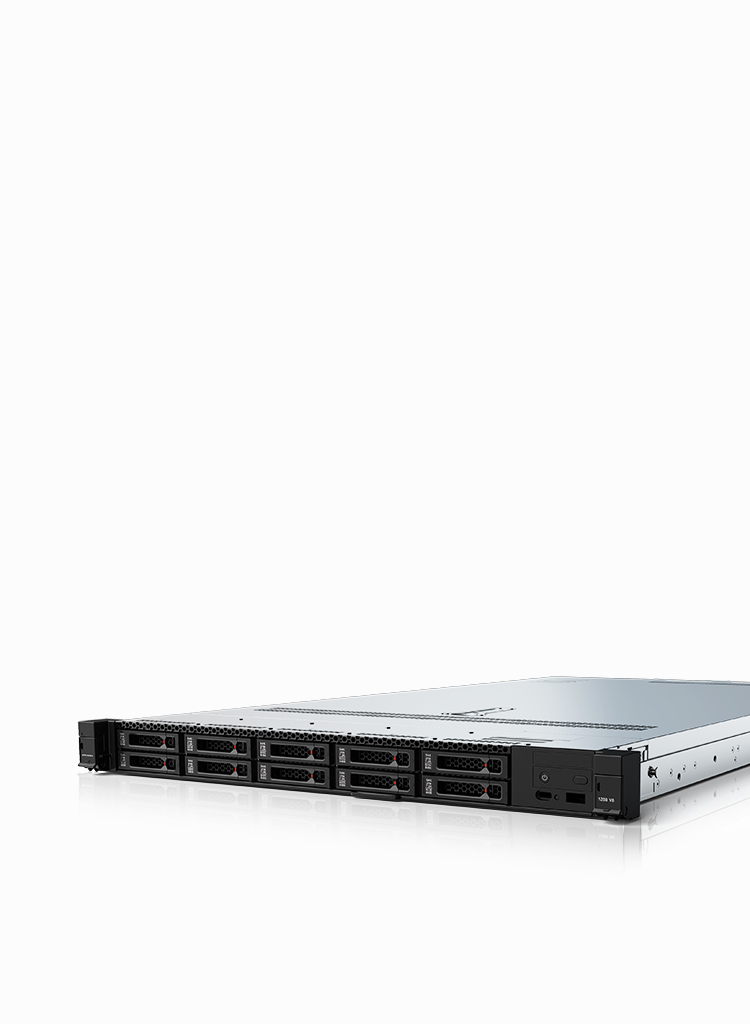

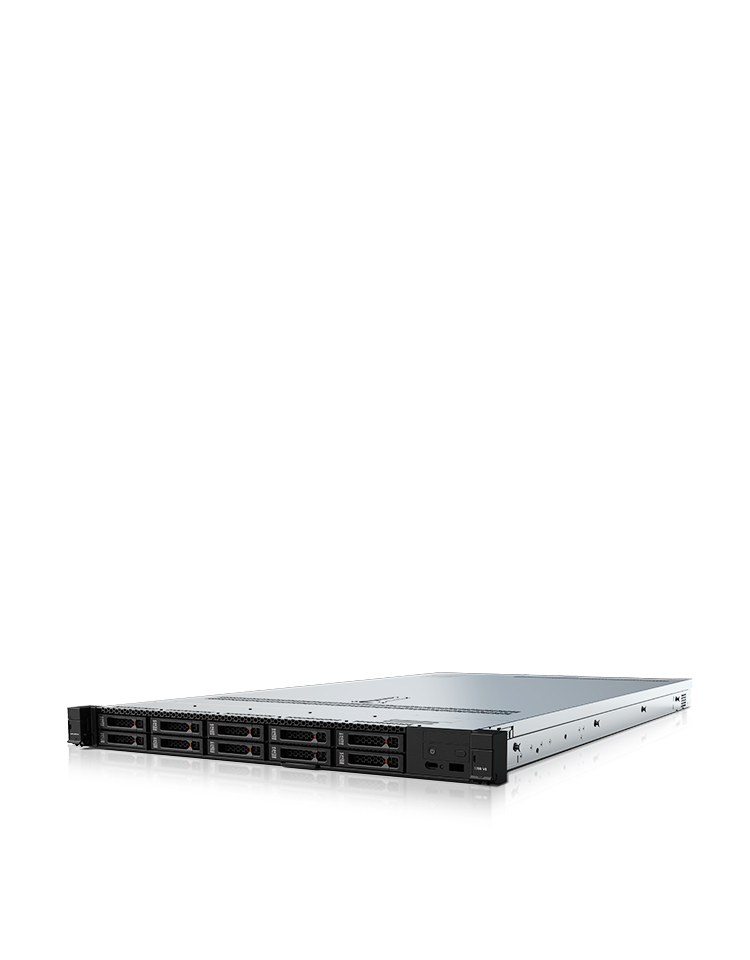

The FusionServer 1288 V8 is a next-generation 1U2P rack server specifically designed to meet the demands of virtualization, High-Performance Computing (HPC), and Office Automation (OA).
Its compact design, solid reliability, and ease of management and deployment make it an ideal choice for dealing with business requirements in industries such as Internet, government and enterprise, and finance.
Next-Gen 1U2P Rack Server
Major application scenarios:
Virtualization
HPC
OA
Exceptional Computing

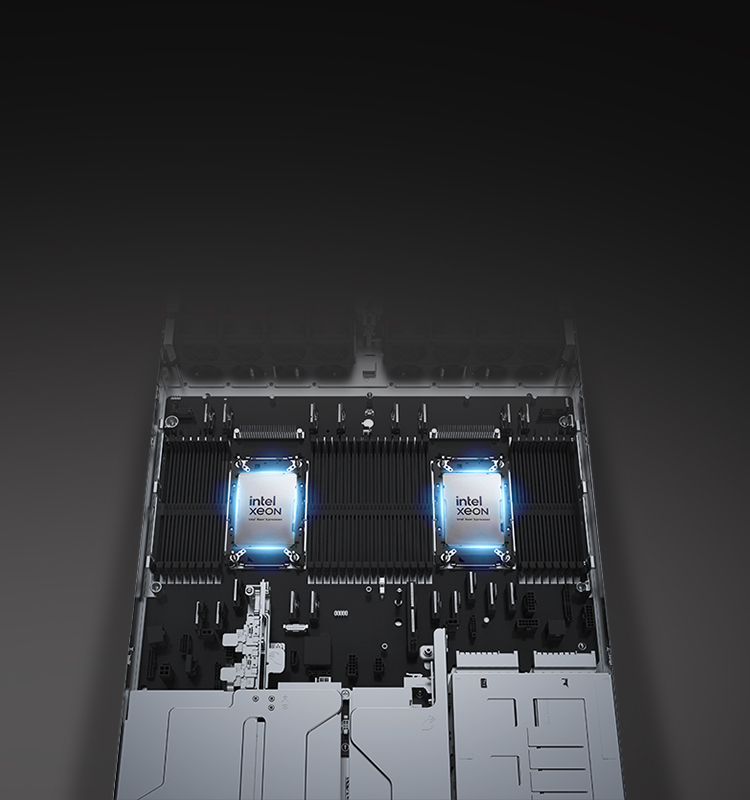

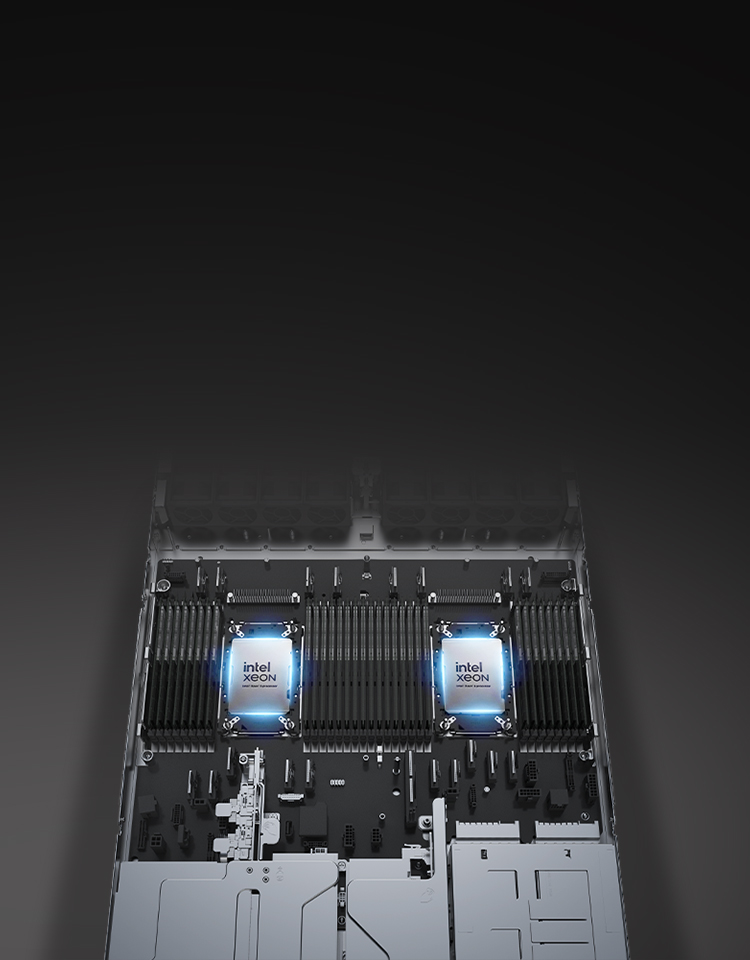

Compact Deployment

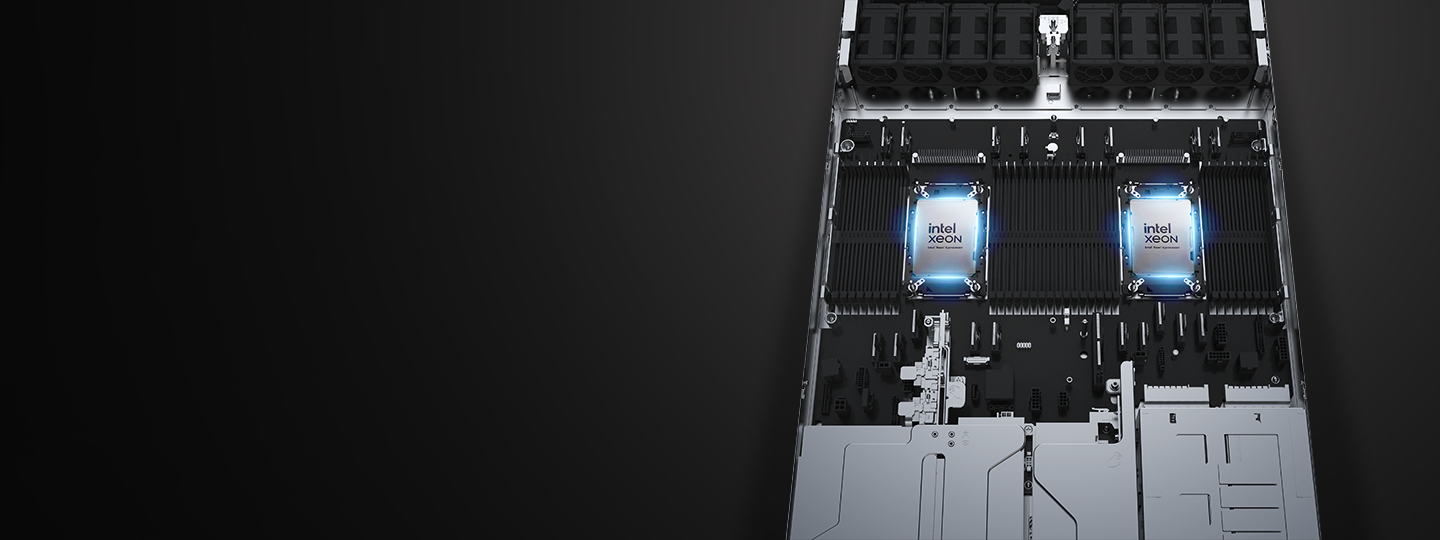

1U space for 2 x Intel®Xeon®6 processors, with up to 144 cores and a maximumTDP of 350 W per processor
32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s

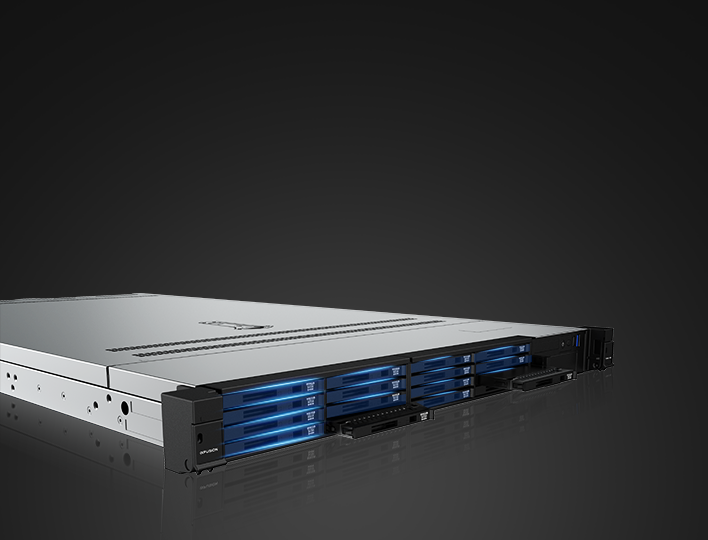

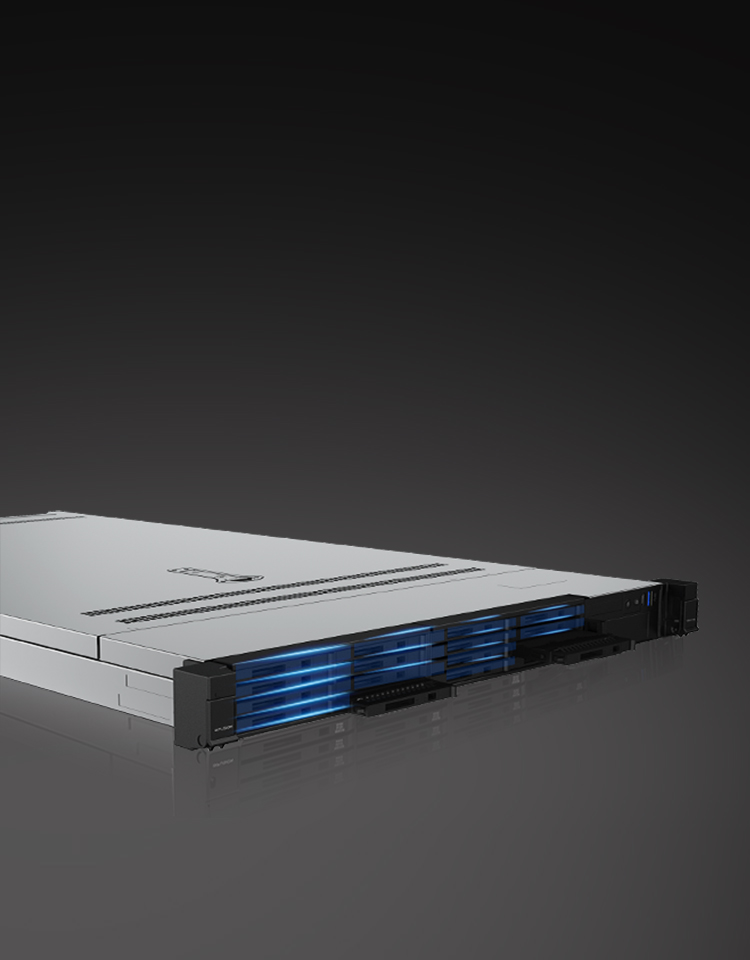

Fast Storage

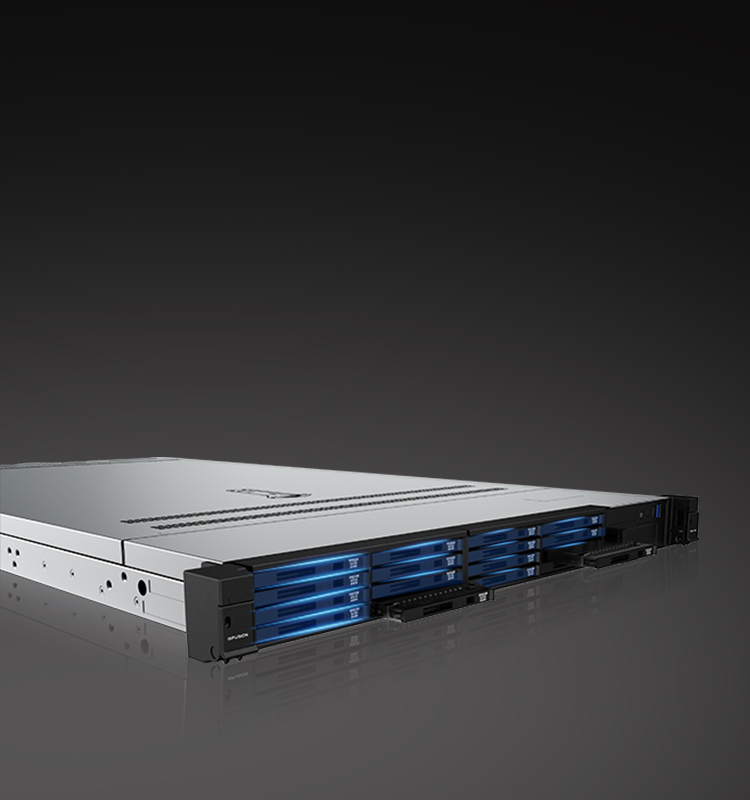

16 x E3.S SSDs, more compact and higher density

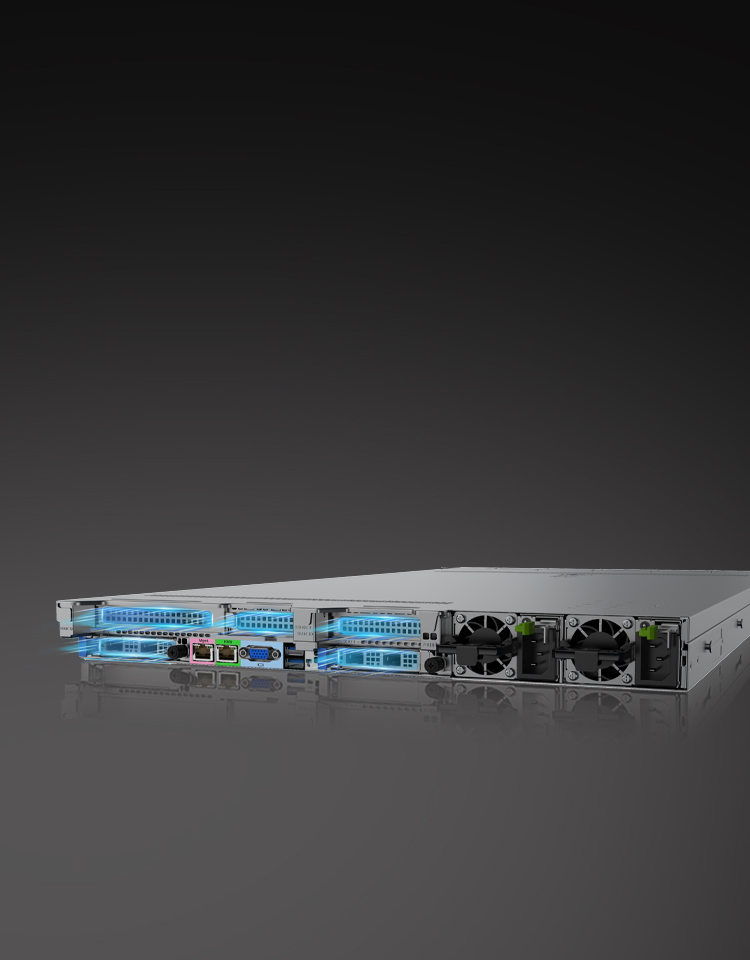

Powerful Scalability

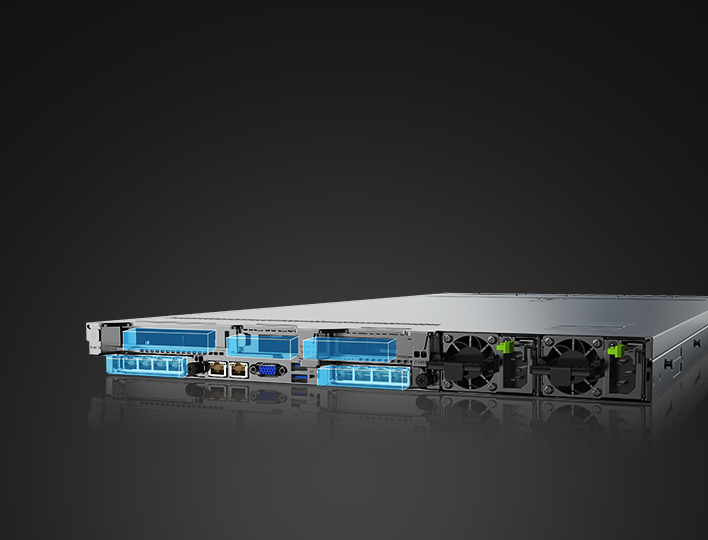

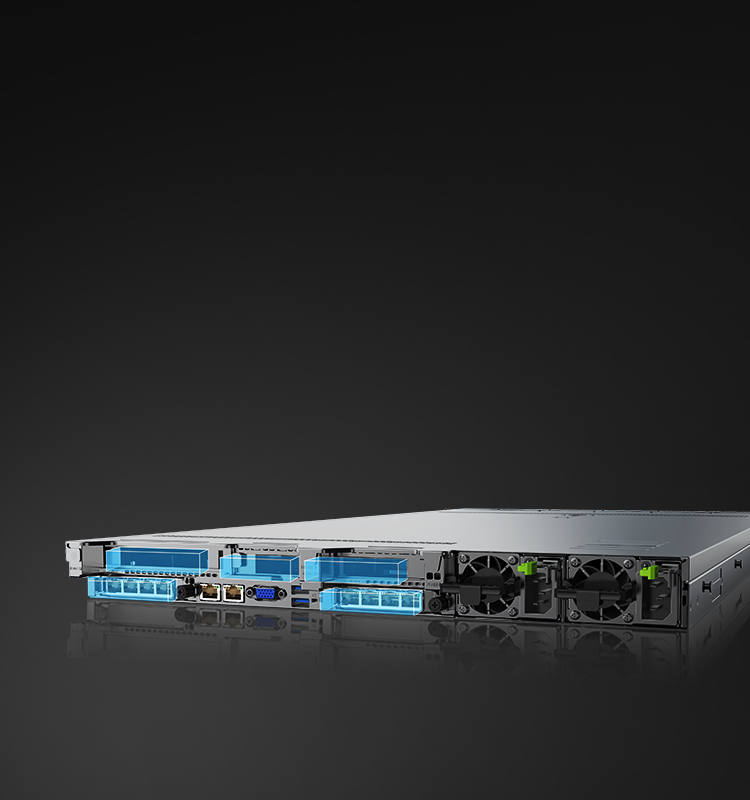

Up to 5 x PCIe 5.0 slots at the rear, including 2 x OCP 3.0 slots
Outstanding Security
Enhanced Maintenance Efficiency

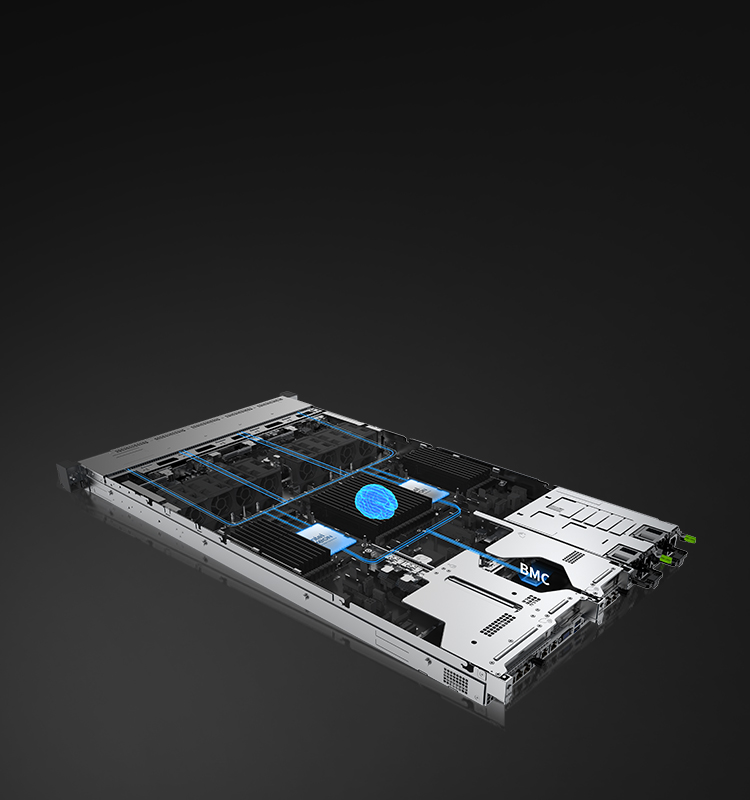

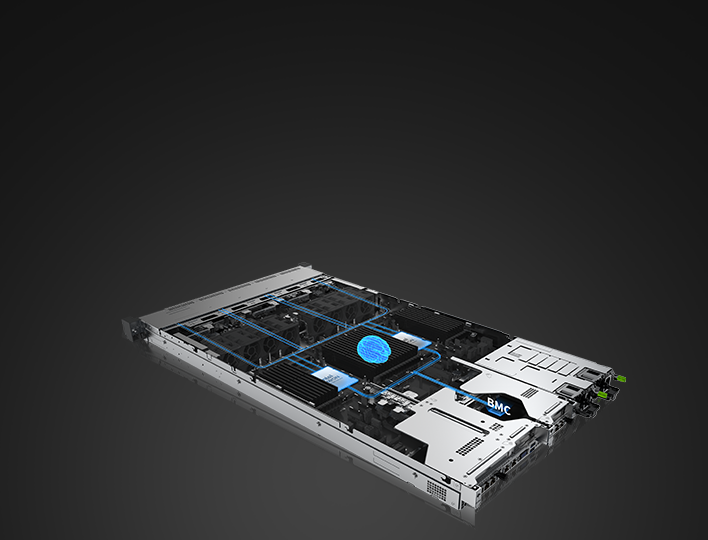

Quick, precise PCIe link fault diagnosis, boosting efficiency by 50%

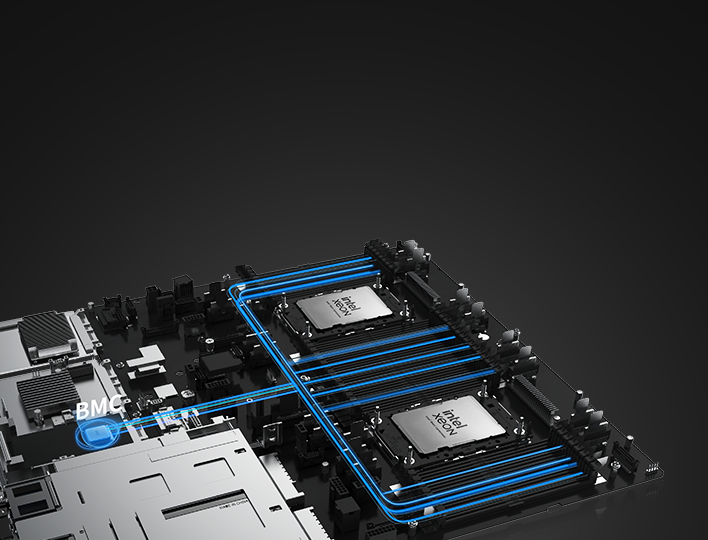

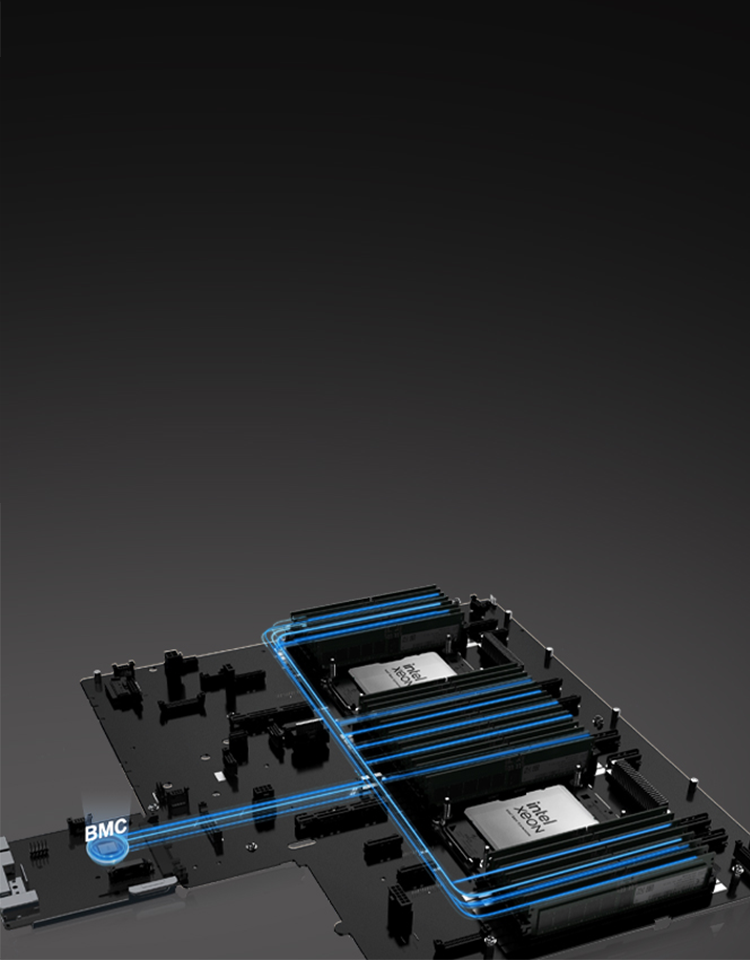

Reduced System Downtime

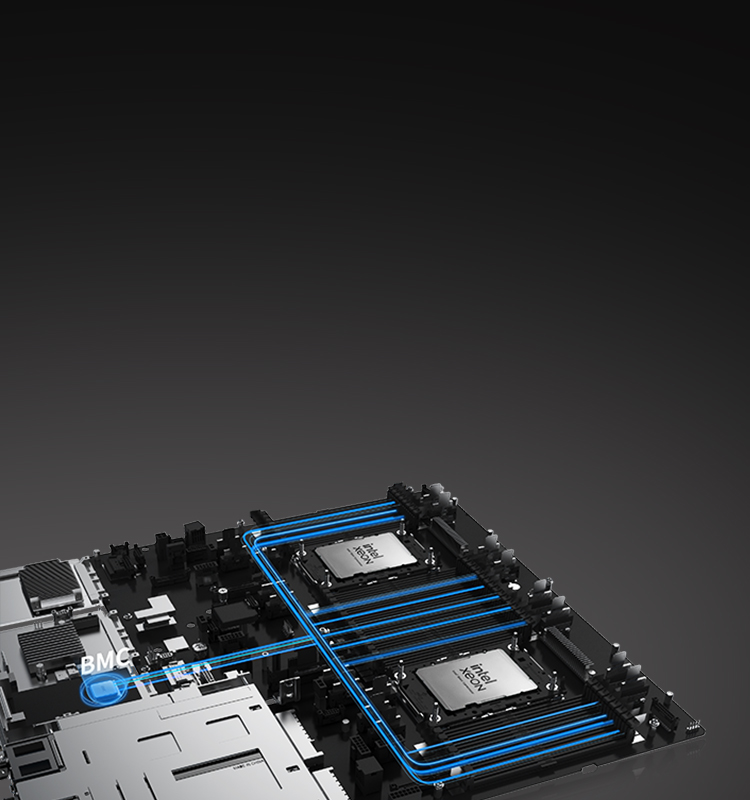

Industry-exclusive AI memory self-healing, with precise memory link diagnosis, cutting downtime by 66%
Optimal Energy Efficiency

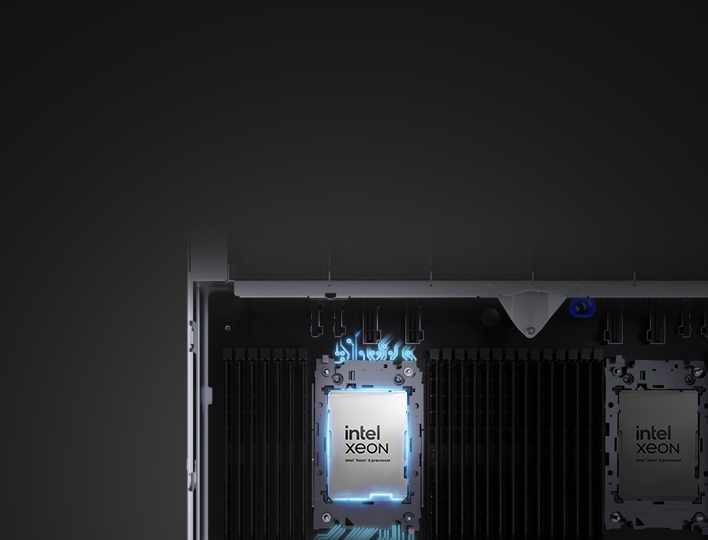

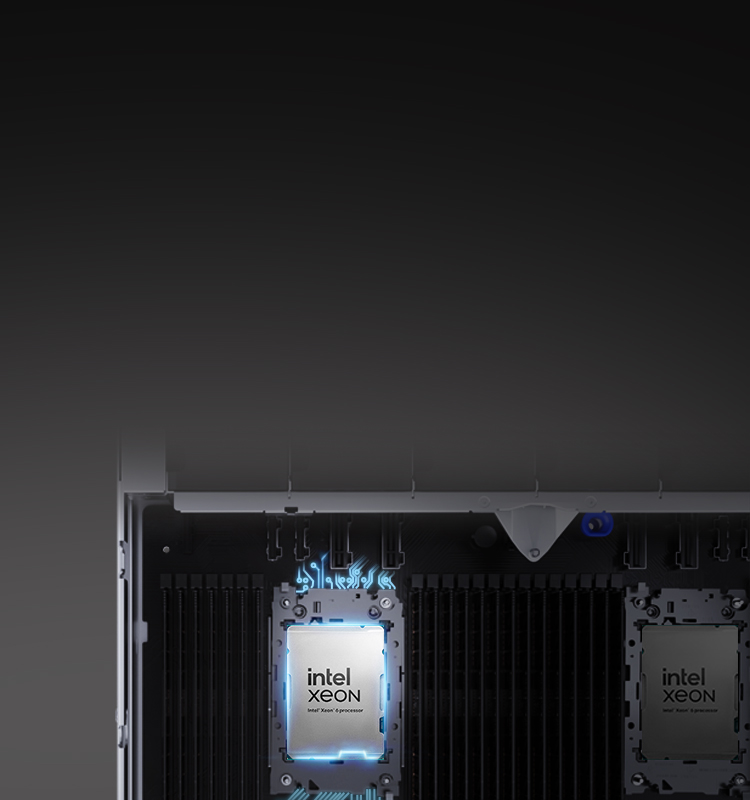

Dynamic Energy Management
Intelligent, non-disruptive tuning based on workloads, achieving peak energy efficiency without rebooting

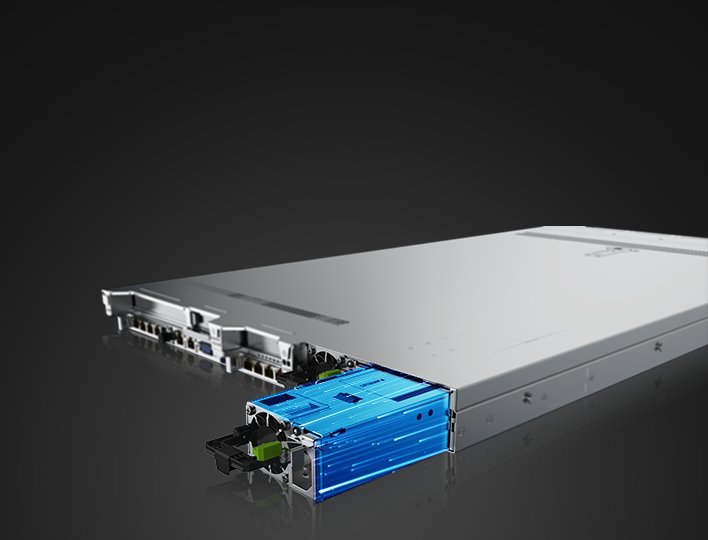

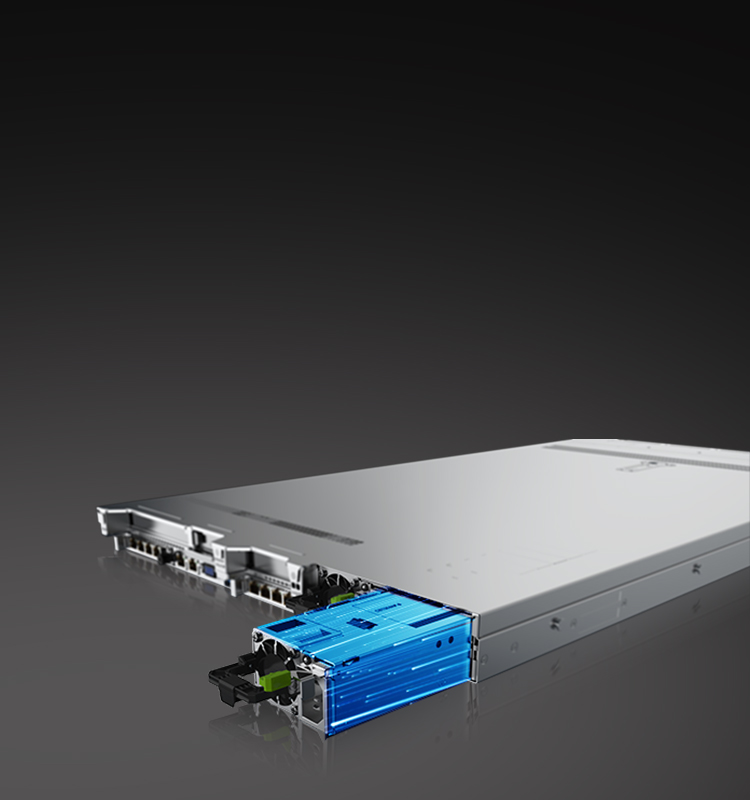

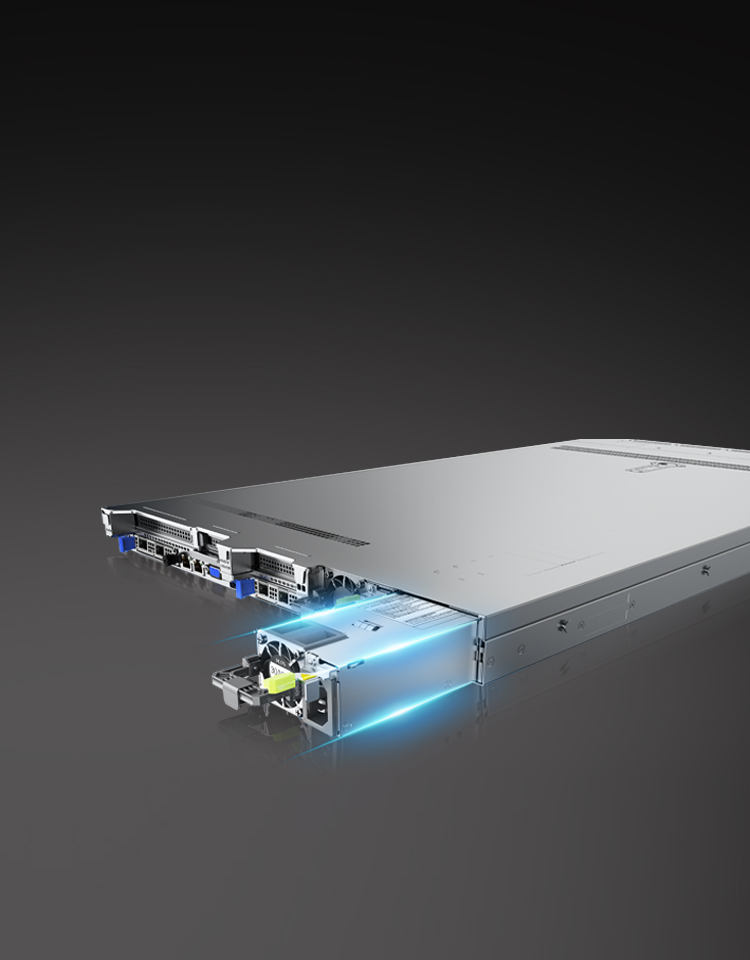

Industry-Leading Power Supply
97% power conversion efficiency, driven by three core innovations, setting the benchmark
Technical Specifications
1U rack server
2 x Intel® Xeon® 6700P/6500P/6700E processors, each with up to 350 W TDP
32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s
Hot-swappable drive configurations:
-8/10 x 2.5″ SAS/SATA/NVMe drives
-4 x 3.5″ SAS/SATA drives
-16 x E3.S SSDs
-2 x M.2 SSDs, supporting hardware RAID
RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
2 x hot-swappable OCP 3.0 NICs, supporting PCIe 5.0, NCSI, and multi-host
Up to 5 x PCIe slots at the rear, supporting PCIe 5.0
8 x hot-swappable counter-rotating fans in N+1 redundancy
900 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
·The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
·The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
·It is optional to configure FusionDirector that enables intelligent, automatic, visualized, and refined management throughout the server lifecycle.
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
5ºC to 35ºC (41ºF to 95ºF), compliant with ASHRAE Class A1/A2/A3
L-shaped guide rails, adjustable guide rails, and holding rails
43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
