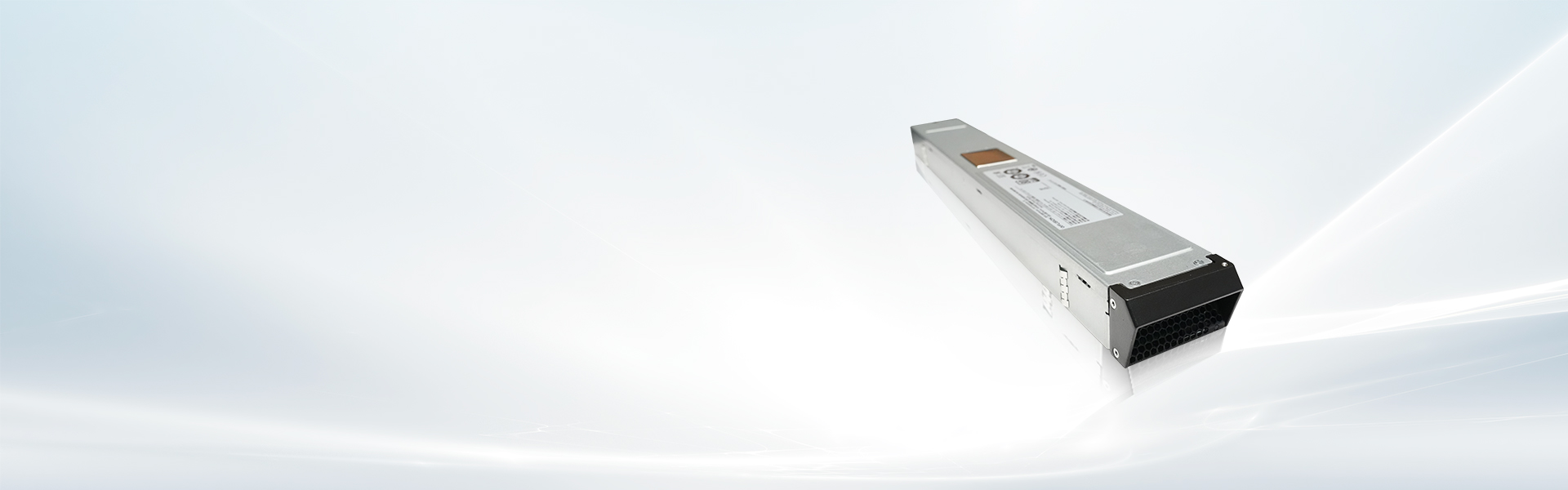

The PDP3000S54-TE supports 90 to 264 V AC and 180 to 300 V DC input voltage ranges. This PSU provides a single output of 54 V with a rated output power of 3000 W. The PSU supports hot-swappable applications and current sharing, enabling parallel redundancy operation in 1+1, 2+2, 3+3, and N+1 (with N up to 5). Leveraging industry-leading all-digital control technology combined with patent topology, the PSU delivers superior overload capabilities to support the GPU peak load feature. It integrates energy-saving modes, such as cold standby, hot standby, and deep sleep, achieving 80 PLUS Titanium certification with 96% at 50% load. The PSU meets CE, TÜV, CCC, NRTL, and CB certifications, designed for diverse ICT applications including servers, data centers, and edge computing.

• 80 PLUS Titanium
• Titanium efficiency: 96% @ 50% load
• 1+1, 2+2, 3+3, and N+1 parallel redundancy operation
• PMBus 1.2 with the black box
• High-precision input efficiency reporting: 3% @ 50% load
• Hot standby, cold standby, deep sleep (input power less than 8 W), and hot swapping
• Dual input pattern and auto-input switching when single circuit power fails
• 54 V output voltage
• Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, and ORing isolation protection
• NRTL, TÜV, CB, CE, and CCC certifications
• IEC 62368-1, EN 62368-1, and GB 4943.1-2022 compliant
• RoHS compliant
