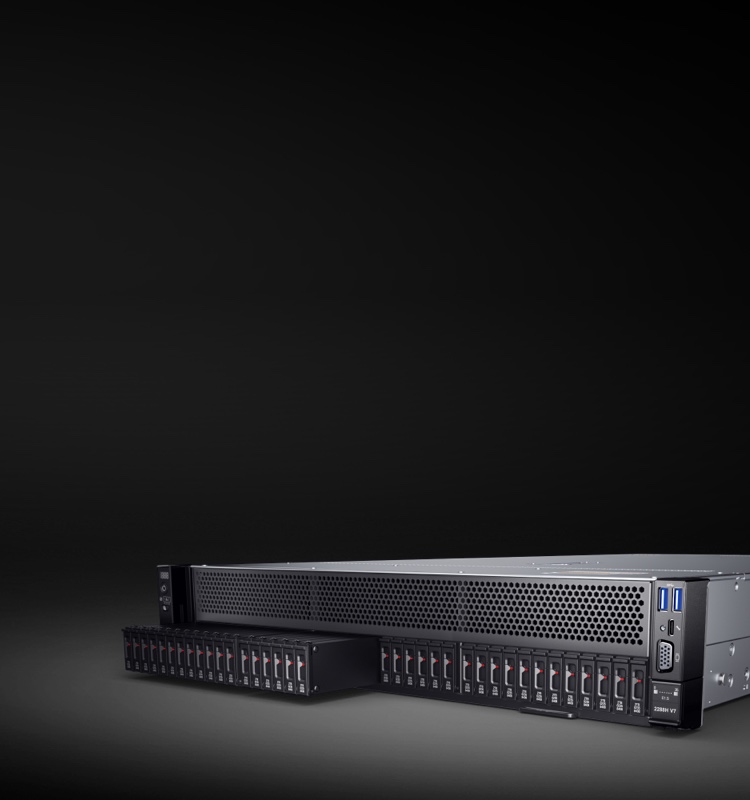

2288H V7

2U rack server

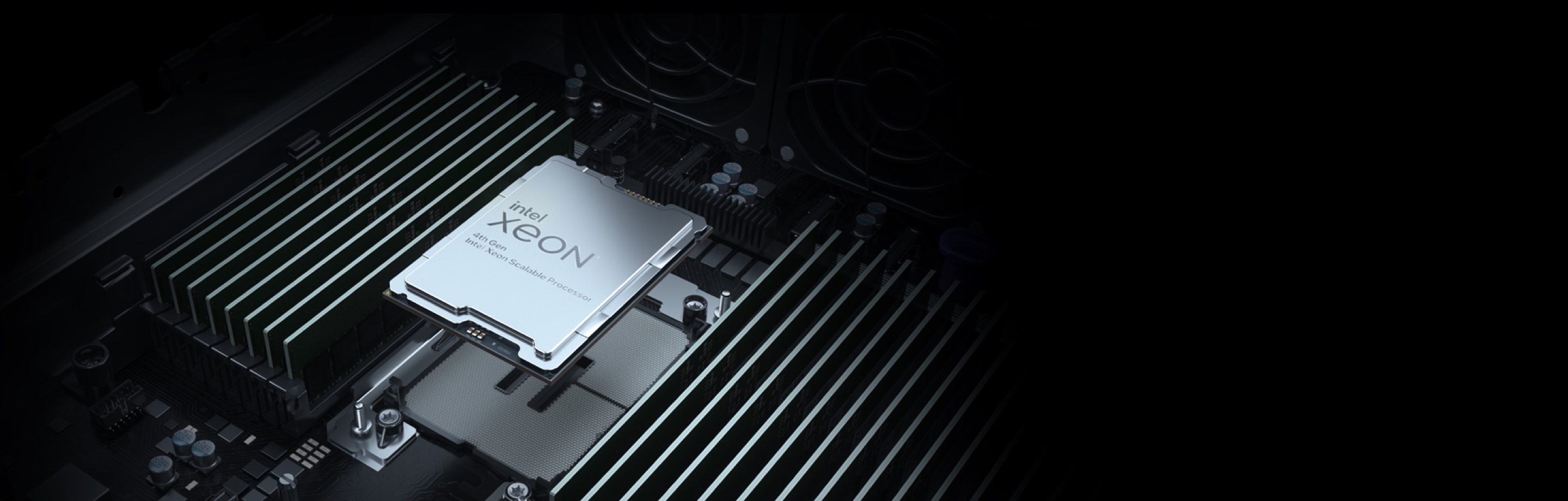

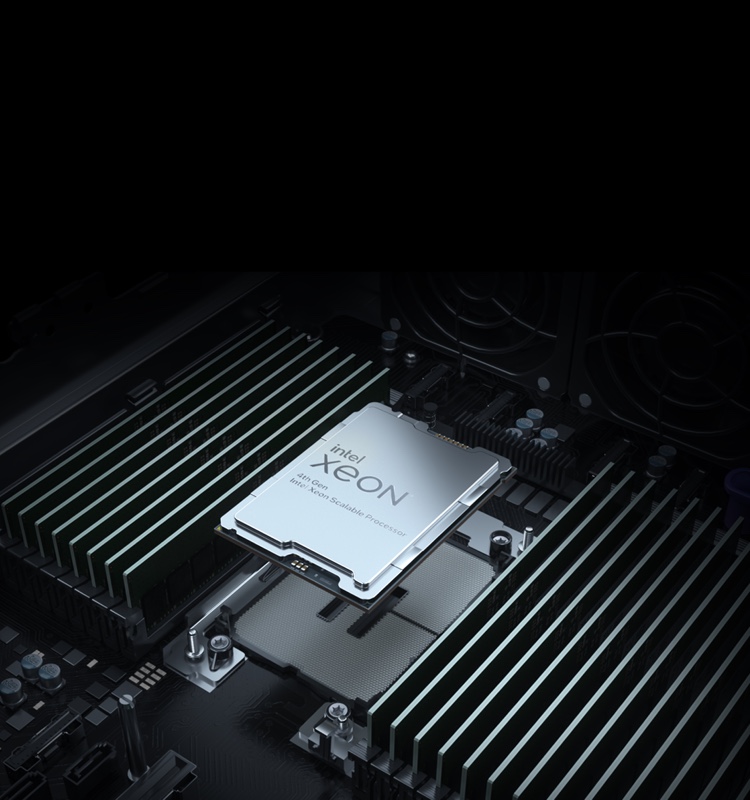

1 or 2 x 4th or 5th Gen Intel^® Xeon^® Scalable processors with TDP up to 350 W per processor

Emmitsburg PCH

32 x DDR5 DIMMs, with up to 4800 MT/s speed. Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots*

Hot-swappable drives with the following configuration options are supported:

• 8 to 35 x 2.5ʺ SAS/SATA/SSD drives

• 12 to 20 x 3.5ʺ SAS/SATA drives

• 4/8/16/24 x NVMe SSDs

• 36 x E1.S SSDs*

• Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs

• 2 x M.2 SSDs, hardware RAID, and hot swap

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Expansion capability of multiple types of networks

OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported

Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0

4 x dual-width or 14 x single-width GPU cards

4 x hot-swappable counter-rotating fans in N+1 redundancy

2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:

• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)

• 1500 W AC Platinum PSUs

1000 W (input: 100 V to 127 V AC)

1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)

• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)

• 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)

• 3000 W AC Titanium PSUs

2500 W (input: 200 V to 220 V AC)

2900 W (input: 220 V to 230 V AC)

3000 W (input: 230 to 240 V AC)

• 2000 W AC Platinum PSU

1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)

2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

CE, UL, CCC, FCC, VCCI, and RoHS

L-shaped guide rails, adjustable guide rails, and holding rails

Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
