    New-Generation 4U 2-Socket Rack Server

    Main application scenarios:

    Digital currency

    Cool data storage

    SDS

    Video storage

    • FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.

    • 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

    New-Generation 4U 2-Socket Rack Server

    Main application scenarios:

    Digital currency

    Cool data storage

    SDS

    Video storage

    • FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
    • 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
    5288 V7, New-Generation 4U 2-Socket Rack Server
    5288 V7, New-Generation 4U 2-Socket Rack Server

    Ultra-large Storage

    5288 V7, Ultra-large Storage

    Ultra-large Storage

    Supports 44 x 3.5" drives + 4 x NVMe U.2 SSDs

    5288 V7, Flexible Configuration

    Flexible Configuration

    Supports up to 10 x standard PCIe slots

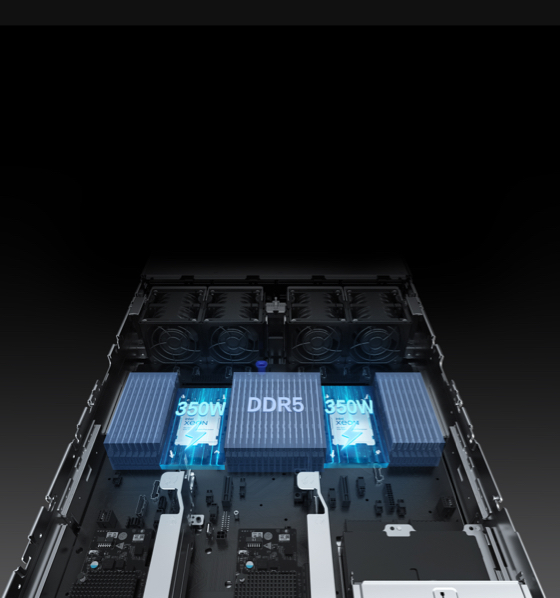

    5288 V7, Supreme Computing Power

    Supreme Computing Power

    Up to 350 W CPUs and 32 x DDR5 DIMMs provide strong computing power, based on Intel's latest Sapphire Rapids processors

    High Reliability and Security

    50% Better Heat Dissipation Capability Than a Single Heat Sink

    Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation

    50% Better Heat Dissipation Capability Than a Single Heat Sink

    66% Less System Downtime

    Unique AI memory fault self-healing ensures stable system running

    66% Less System Downtime

    Efficient Energy Saving

    Saving Energy by Up to 8% Compared with the Industry Average

    Saving Energy by Up to 8% Compared with the Industry Average

    The unique algorithm is provided for the lowest power consumption of fans and CPUs

    Industry-leading Power Supply Technology for Higher Efficiency

    Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

    Intelligent Service Awareness, Dynamic Load Adjustment

    The CPU working frequency is dynamically adjusted based on the actual service load

    Intelligent O&M

    5288 V7, Intelligent O&M

    Intelligent O&M

    20x Higher Upgrade Efficiency

    20x Higher Upgrade Efficiency

    Automatic version push and upgrades can be completed without onsite attendance

    10x Higher Deployment Efficiency

    10x Higher Deployment Efficiency

    75% streamlined deployment steps are performed by tools

    100% Accuracy for Asset Stocktaking

    100% Accuracy for Asset Stocktaking

    Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking

    Technical Specifications

    Form Factor

    4U rack server

    Processor

    1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor

    Chipset

    Emmitsburg PCH

    Memory

    32 x DDR5 DIMMs, at 4800 MT/s

    Local Storage

    Hot-swappable drive configurations:

    • 4 x 2.5ʺ SAS/SATA drives/SSDs

    • 24 to 44 x 3.5ʺ SAS/SATA drives

    • 8 x NVMe SSDs

    • E1.S or E3.S SSDs*

    Flash storage:

    • 2 x M.2 SSDs

    RAID

    RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

    Network

    Expansion capability for multiple types of networks

    OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported

    PCIe Expansion

    Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported

    GPU Card

    10 x single-width GPU cards

    Fan Module

    6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy

    Power Supply

    2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:

    • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)

    • 1500 W AC Platinum PSUs

    1000 W (input: 100 V to 127 V AC)

    1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)

    • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)

    • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)

    • 3000 W AC Titanium PSUs

    2500 W (input: 200 V to 220 V AC)

    2900 W (input: 220 V to 230 V AC)

    3000 W (input: 230 to 240 V AC)

    • 2000 W AC Platinum PSUs

    1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)

    2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

    Management

    The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

    • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

    • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

    OS

    FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler

    Security

    Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

    Operating Temperature

    5ºC to 35ºC (41ºF to 95ºF), Class A1/A2/A3

    Certification

    CE, UL, CCC, FCC, VCCI, and RoHS

    Installation Suite

    L-shaped guide rails, adjustable guide rails, and holding rails

    Dimensions (H x W x D)

    Chassis with 3.5ʺ drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.)

    *According to the plan, it will be realized within 2023.
